H3C MSR 2600 Installation, Quick Start page 2

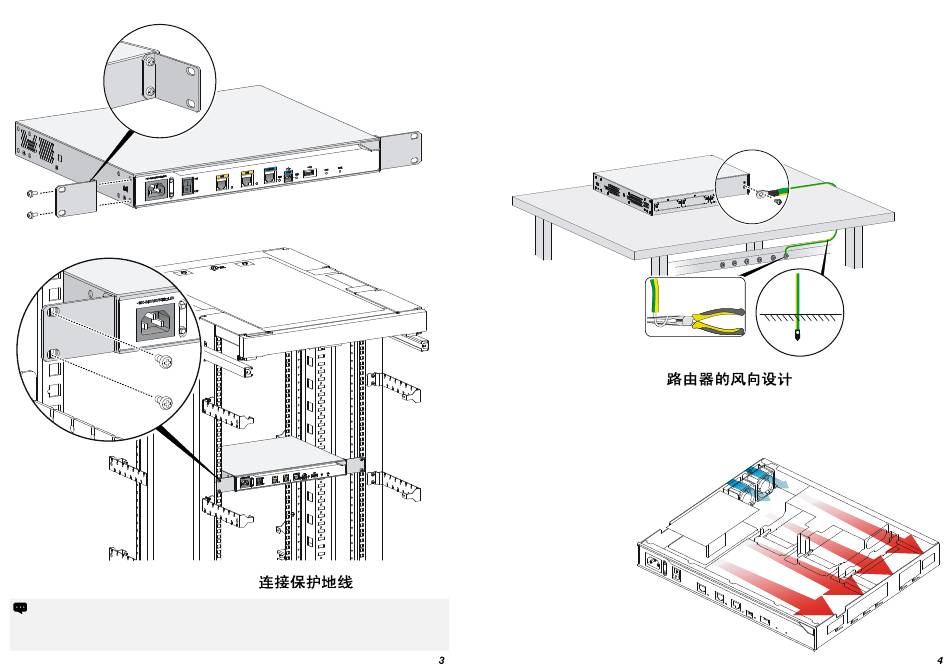

Attach the mounting brackets to the router. 安装挂耳到路由器
Mount the router to the rack. 安装路由器到机柜
Connecting the Grounding Cable
Correctly connecting the router grounding cable is crucial to lightning protection and EMI
protection.路由器地线的正确连接是路由器防雷、防干扰的重要保障，请使用设备随机提
供的保护地线正确接地。
Connect the ring terminal end of the grounding cable to the router and the other end to the
grounding strip.
路由器安装在工作台时，应将接地线带有OT端子的一端与路由器相连，另一端与楼宇配线盒
的接地排相连
If the installation site has no grounding strips, but earth ground is available, hammer an angle
iron or steel tube into the earth ground to serve as a grounding conductor.
如果路由器安装环境中不具备专用的接地线连接装置，也可以采用埋设接地体的方式将设备妥
善接地
Airflow of the Router
Make sure the air inlet and outlet vents are not blocked and the installation site Has a good
entilation system.
请确保路由器的进、出风孔不被遮挡，并将路由器安装在具有良好通风散热系统的环境中
The MSR 26-30 adopts left-to-right air aisles.
MSR 26-30路由器采用左进右出的风道设计
