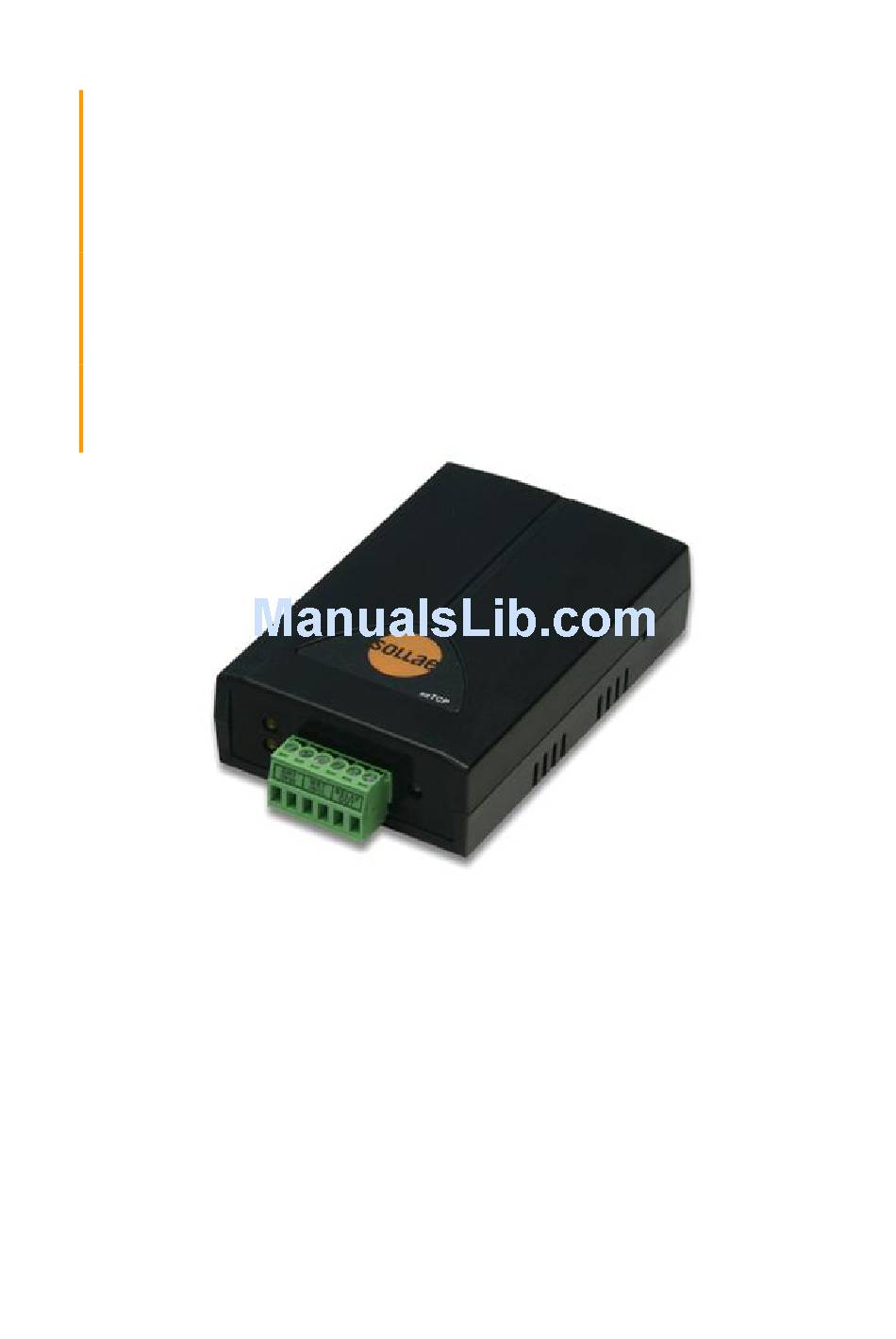

1port Remote I/O Controller (dry / wet contact support) CIE-H12 User Manual Version 1.9 Sollae Systems Co., Ltd. http://www.ezTCP.com...
Page 2
CIE-H12 User Manual Ver. 1.9 This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment.
Page 5
CIE-H12 User Manual Ver. 1.9 7.3.2 Valid Time ..............................- 42 - 7.3.3 Delay ................................- 42 - Self-Test in Trouble ......................- 43 - 8.1 Searching problem with ezManager ...................... - 43 - 8.2 Connection Problem over Modbus/TCP ....................- 44 - 8.3 Communication Problem over Modbus/TCP ..................
Macro mode can be used for these functions. CIE-H12 has two input ports and one output port. One of the input ports is a dry- contact type and the other one is wet-contact. Thus, you are allowed to use it under both types of systems.
CIE-H12 User Manual Ver. 1.9 Components CIE-H12 5V Power Adapter (optional) Specification 1.5.1 H/W specification Input Power DC 5V (±10%) Power Current Consumption 305mA typical Size 96mm x 57mm x 24mm Weight Approximately 68g Digital Input 2 ports with photo couplers (2 input types)
Interface 1.6.1 Input Ports CIE-H12 has two input ports and the each has different type with the other. The one is a “DRY CONTACT” type and the other one is a “WET CONTACT.” Figure 1-4 input ports (the front view) In the front panel, the DRY IN(0) port is the dry contact type and the WET IN(1) port is the wet contact type.
Page 10
CIE-H12 User Manual Ver. 1.9 The voltage input type (Wet contact) Figure 1-6 the wet contact input port You can give a DC voltage to input signal to this port. This port is isolated by photo- couplers and you don’t have to care about the polarity. The circuit diagram of the input port is shown in the figure below.
Use a (-) shaped screwdriver to connect it with users’ devices since the output ports are interfaced with a 3.5mm terminal block, CIE-H12 is most appropriate for switching devices in lower voltage conditions than that. Or High capacity relay is recommended.
CIE-H12 User Manual Ver. 1.9 1.6.3 Ethernet Interface An RJ45 connector is for the network interface of CIE-H12. You can use a UTP cable. It automatically senses 10Mbits or 100Mbits Ethernet. It also provides auto MDI/MDIX function that can automatically sense a 1:1 cable or cross over cable.
CIE-H12 User Manual Ver. 1.9 1.6.5 System LED CIE-H12 has 2 LEDs on RJ45 and the current system status LEDs for out port and input ports. Each LED represents the following status: place name color LED status description blinks in...
Figure 2-1 the connection between CIE-H12 and a PC 2.1.1 Setting Network Aera This step is for setting both CIE-H12 and your PC to be located on the same network to establish a TCP connection. Setting of the PC Add or change the IP address of the network adapter on your PC.
Page 15
MS Windows and this is comfortable to use because it does not need installation process. First, search your CIE-H12 via network. All the values of parameters are set to the default values in the factory. To apply it to your system, proper values should be set via ezManager.
Test operation 2.2.1 Modbus/TCP Test This is for checking the operation of Input and output ports of CIE-H12 via Modbus/TCP. In this instruction, offered Modbus/TCP test program was used. Run ezManager. Then, you can see the window as shown below.
Page 17
Modbus/TCP test Figure 2-4 Modbus/TCP test ① Input the IP address of CIE-H12 ② Input the local port for Modbus/TCP of CIE-H12 In a local area network, ① and ② steps can be omitted. ③ Try to connect by pressing [Connect] button ④...
CIE-H12 User Manual Ver. 1.9 2.2.2 HTTP Test with a WEB browser This is for testing the operation of Input and output ports of CIE-H12 via HTTP. The test was implemented on a WEB browser. You can use WEB browsers such as MS Internet Explorer, Google Chrome and Mozilla Firefox.
Configuration via LAN Checklists Make sure of the connection between your PC and CIE-H12 via Ethernet. If they are in the same network, [MAC Address search] button can be used. Otherwise, only [IP Address search] is allowed to use.
CIE-H12 User Manual Ver. 1.9 Operation Modes What is the Operation Mode? Each of two operation modes are designed for specific purposes, and those are as follows: Normal mode This mode is for normal data communication and has 2 communication modes.
In normal mode, there are 3 types of ways to monitor and control I/O. control types Types Description Control and monitor the I/O of CIE-H12 via Modbus/TCP. Modbus/TCP It supports both master and slave mode. Users can automatically control the output ports by setting MACRO Macro using some basic formula of Boolean Algebra.
CIE-H12 User Manual Ver. 1.9 Methods for I/O control MODBUS/TCP CIE-H12 supports Modbus/TCP. By using this protocol, it remotely monitors and controls I/O devices. To use this method, your application should support this protocol. 5.1.1 Related Parameters Parameters Descriptions Modbus/TCP Using Modbus/TCP for controlling I/O ports of CIE-H12.
According to the standard Modbus/TCP, users can use a Modbus/TCP manager to control and monitor their I/O devices. You can set CIE-H12 to the [Slave] item to [Slave] mode. The [Passive] connection is recommended in this mode and the [Peer Port] should be 502.
Table 5-3 the passive / active connection 5.1.5 Initial Output Value The initial value of CIE-H12’s output port can be configured. The output ports are set to ON or OFF according to the value of [Initial State] at the boot time.
CIE-H12 User Manual Ver. 1.9 Macro Mode This mode lets users set the values of the output ports with simple macros. Since CIE- H12 reflects the values according to the macro expressions which are configured by users in advance, it is useful to make a specific device operate automatically using signals from various sensors.
CIE-H12 User Manual Ver. 1.9 5.2.3 An Example of Equations Here are two examples. In the expressions, spaces between the two operands will be ignored. Input Port Equations Description Do0-(A) i0 + i1 Perform bit OR i0 and i1 Do0-(B) /(i0 * i1) Perform bit AND i0 and i1.
ISP (Internet Service Provider) blocks the port, you can change that port number. Figure 5-2 changing port number for HTTP ① Input a port number to the [Web(HTTP) Port] text box. ② Input the IP address of CIE-H12 along with the changed port number and “http://” - 26 - http://www.ezTCP.com...
I/O ports with your webpage made by yourself. Upgrading HTML files CIE-H12 has a default webpage when it is manufactured in the factory. For advanced users, we have been offering some examples (sample web pages) based on various technologies such as CSS and J query.
Upgrading Firmware 6.1.1 Firmware Firmware is a type of software for operation of CIE-H12. If it is needed to add function or fix bugs, the firmware will be modified and released. We recommend that users keep using the latest released firmware.
Page 30
CIE-H12 User Manual Ver. 1.9 Checking firmware file and Sending Figure 6-2 sending firmware file ① Check if the name and path of the firmware file are correct ② Click the [Send] button ③ Confirm the completed message - 29 -...
CIE-H12 User Manual Ver. 1.9 Changing Homepage 6.2.1 Webpage CIE-H12 comes preloaded with a webpage to facilitate control and monitoring through HTTP. 6.2.2 Processes Making Users‘ homepage or Downloading sample files Make your own homepage file or use sample homepage files freely available to download at our web site.
Page 32
② Click the [Change F/W / HTML] button to run TFTP client ③ Select the [Change HTML] radio button ④ Input the IP address of CIE-H12 to the [Local IP Address] text box ⑤ Press the [Open Firmware / HTML] button and choose the HTML file - 31 - http://www.ezTCP.com...
Page 33
CIE-H12 User Manual Ver. 1.9 Checking files and Sending Figure 6-5 sending firmware file ① Check if the name and path of the html file including all images are correct ② Click the [Send] button ③ Confirm the completed message - 32 - http://www.ezTCP.com...
Status Monitoring 6.3.1 Using TELNET Once the [TELNET] option is activated, users can remotely log in to CIE-H12. If a password is set, users should input the password. After that, messages from CIE-H12 appear as shown in the figure below.
Page 35
“st net” command displays the current network states of all sessions. Figure 6-7 “st net” command st uptime “st uptime” command shows amount of time since CIE-H12 has booted up. Figure 6-8 “st uptime” command sc “sc” command is used when users close a session. [OP1] means the name of session, and [OP2] should be “CLOSE”.
CIE-H12 User Manual Ver. 1.9 6.3.2 Checking status by ezManager Status of CIE-H12 can be monitored by [Status] button on ezManager. By using the [Refresh Every 1 Second] option in the status window, the status is automatically updated in every second.
Page 37
Password This text box is activated when CIE-H12 has a password. If users want to close the TCP connection, this password has to be correctly filled. Refresh Every 1 Second.
The maximum length is 8 bytes of Alphabet or number. When you want to revoke all of these restrictions, change the mode of CIE-H12 to the ISP mode. All restrictions are removable and communication with ezManager is revoked in the ISP mode.
7.2.1 Notify IP Change CIE-H12 can be a TCP server even though it is assigned the IP address automatically. Using [Notify IP Change] function, it sends its IP address with the host name to the specific server. There are 3 types of functions provided: DDNS, TCP and UDP.
CIE-H12 User Manual Ver. 1.9 7.2.2 Sending MAC Address [Sending MAC Address] is a function that CIE-H12 sends its MAC address to the remote host right after the connection is established. By using this function, a server can identify multiple devices with the information.
Page 41
Figure 7-3 debugging message window ① Pull down menu for selecting a network adapter ② Place for showing received debugging messages from CIE-H12 over the network ③ Auto update to display the latest captured file on the screen of ②...
7.3.1 Notify Input or Output Port Change When input or output port is changed, you can receive an email for notification from CIE-H12 using SMTP protocol. When ports you selected are changed, status of CIE-H12 is sent to the Email address you entered.
CIE-H12 User Manual Ver. 1.9 7.3.2 Valid Time CIE-H12 only recognizes signals of the input ports as the valid signals when the signal lasts for the [Valid Time]. If the signals are not maintained for the [Valid Time], the input signals will be ignored.
CIE-H12 User Manual Ver. 1.9 Self-Test in Trouble When users are in trouble with using CIE-H12, make sure of the following steps first. Searching problem with ezManager Confirming types of configuration utility CIE-H12 can be configured by ezManager. Cancelling the Firewall operation In case of being blocked by firewalls of a personal computer or network block, you must cancel all the firewalls before searching CIE-H12.
Port, Subnet Mask, Gateway IP Address, DNS IP Address, DDNS option and etc. PING Test Confirm the connection over the network by PING test. If CIE-H12 does not send any reply from the request, check the network environment. Firewall In case the networks which need strong security, the access may be denied by their firewall.
Port Base Address], [Poll Interval] and [Notify Input change]. Checking which mode is using In case of MACRO or serialized Modbus/TCP, you can control the outputs of CIE-H12. Turn the mode off if those modes are using. Contact us if you have any questions about above steps or our products.
CIE-H12 User Manual Ver. 1.9 Related material 9.1 Technical Documents You can find the following technical documents at our website. Datasheet Modbus/TCP protocol Combinations of I/O Controllers Digital Pulse Output IP Change Notification (DDNS) Modmap Users’ manual ...
10 Technical Support and Warranty 10.1 Technical Support If you have any question regarding operation of the product, visit Customer Support FAQ corner and the message board on Sollae Systems’ web site or send us an email at the following address: E-mail: support@eztcp.com...
CIE-H12 User Manual Ver. 1.9 11 Precaution and Exemption from Liability 11.1 Precaution Sollae Systems is not responsible for product failures occurring due to user ’s alternation of the product. Specifications of the product are subject to change without prior notice for performance improvement.
Sollae Systems Co., Ltd. and its distributors entire liability and your exclusive remedy shall be Sollae Systems Co., Ltd. and its distributors option for the return of the price paid for, or repair, or replacement of the CIE-H12.
Page 51
à caractère commercial ou de toute autre perte financière) provenant de l'utilisation ou de l'incapacité à pouvoir utiliser le boîtier CIE-H12, même si Sollae Systems Co., Ltd. ou un de ses distributeurs a été informé de la possibilité de tels dommages.
Page 52
CIE-H12 sans que la responsabilité de Sollae Systems Co., Ltd. et de ses distributeurs ne puissent être mise en cause, ni que le boîtier CIE-H12 puisse être échangé au titre de la garantie.
CIE-H12 User Manual Ver. 1.9 12 History Data Version Comments Author 2011.08.01 ○ Initial release Roy LEE 2011.08.02 ○ Product’s picture has been replaced. Roy LEE 2011.08.04 ○ Gap of the output port has been corrected. Roy LEE 2011.12.22 ○ Descriptions of DynDNS service has been changed.
