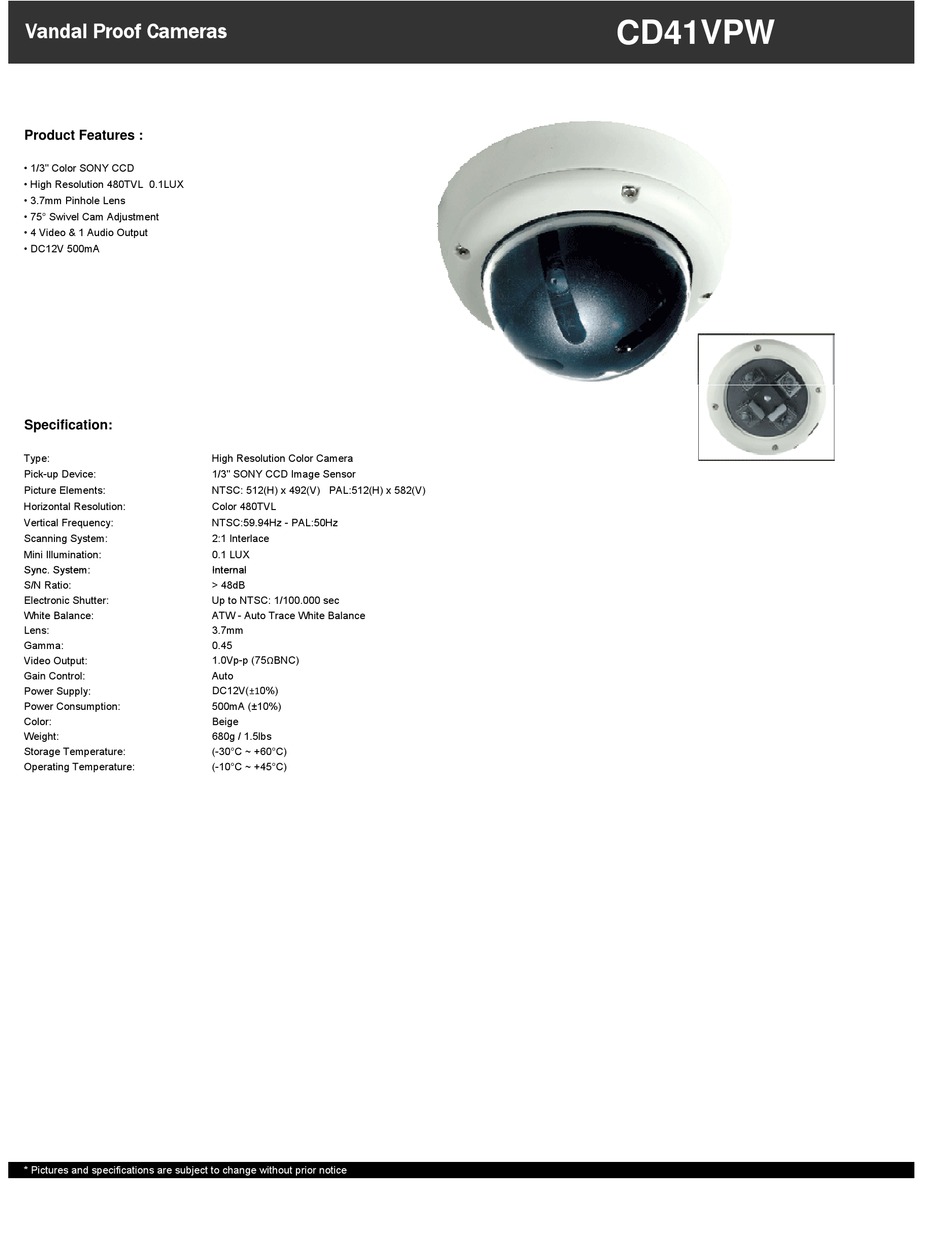

COP-USA CD41-VPW Specification Sheet

Vandal Proof Cameras
Product Features :
• 1/3" Color SONY CCD
• High Resolution 480TVL 0.1LUX
• 3.7mm Pinhole Lens
• 75° Swivel Cam Adjustment
• 4 Video & 1 Audio Output
• DC12V 500mA
Specification:
Type:
Pick-up Device:
Picture Elements:
Horizontal Resolution:
Vertical Frequency:
Scanning System:
Mini Illumination:
Sync System: Sync. System:
S/N Ratio:
Electronic Shutter:
White Balance:
Lens:
Gamma:
Video Output:
Gain Control:
Power Supply:
Power Consumption:
Color:
Weight:
Storage Temperature:
Operating Temperature:
* Pictures and specifications are subject to change without prior notice
High Resolution Color Camera
1/3" SONY CCD Image Sensor
NTSC: 512(H) x 492(V) PAL:512(H) x 582(V)
Color 480TVL
NTSC:59.94Hz - PAL:50Hz
2:1 Interlace
0.1 LUX
Internal Internal
> 48dB
Up to NTSC: 1/100.000 sec
ATW - Auto Trace White Balance
3.7mm
0.45
1.0Vp-p (75ΩBNC)
Auto
DC12V(±10%)
500mA (±10%)
Beige
680g / 1.5lbs
(-30°C ~ +60°C)
(-10°C ~ +45°C)
CD41VPW
