gefran GQ 15 Series Manual

Main applications
• Packaging Machinery
• Thermoforming
• Plastic extrusion lines
• Industrial ovens and
furnaces
• Control application with
high switching speed
PROFILE
Zero crossing relay with antiparallel thy-
ristor output is the most used solid state
relay in industrial applications.
In fact, it can be used for resistive, inducti-
ve and capacity loads.
"Zero crossing" relay is energised when
voltage meets the zero point and disener-
gised when current meets the zero point,
depending on the signal control on the
input circuit.
This relay has been designed to stand
high-value transitory applications .
When the relay has to stand high currents
for a long period, it is necessary to grant a
proper dissipation and an adequate elec-
trical connection between relay terminals
and the load.
Varistors, fuses, thermostats and fans are
available as fittings.
Use the relay with an opportune heatsink
(see section accessories).

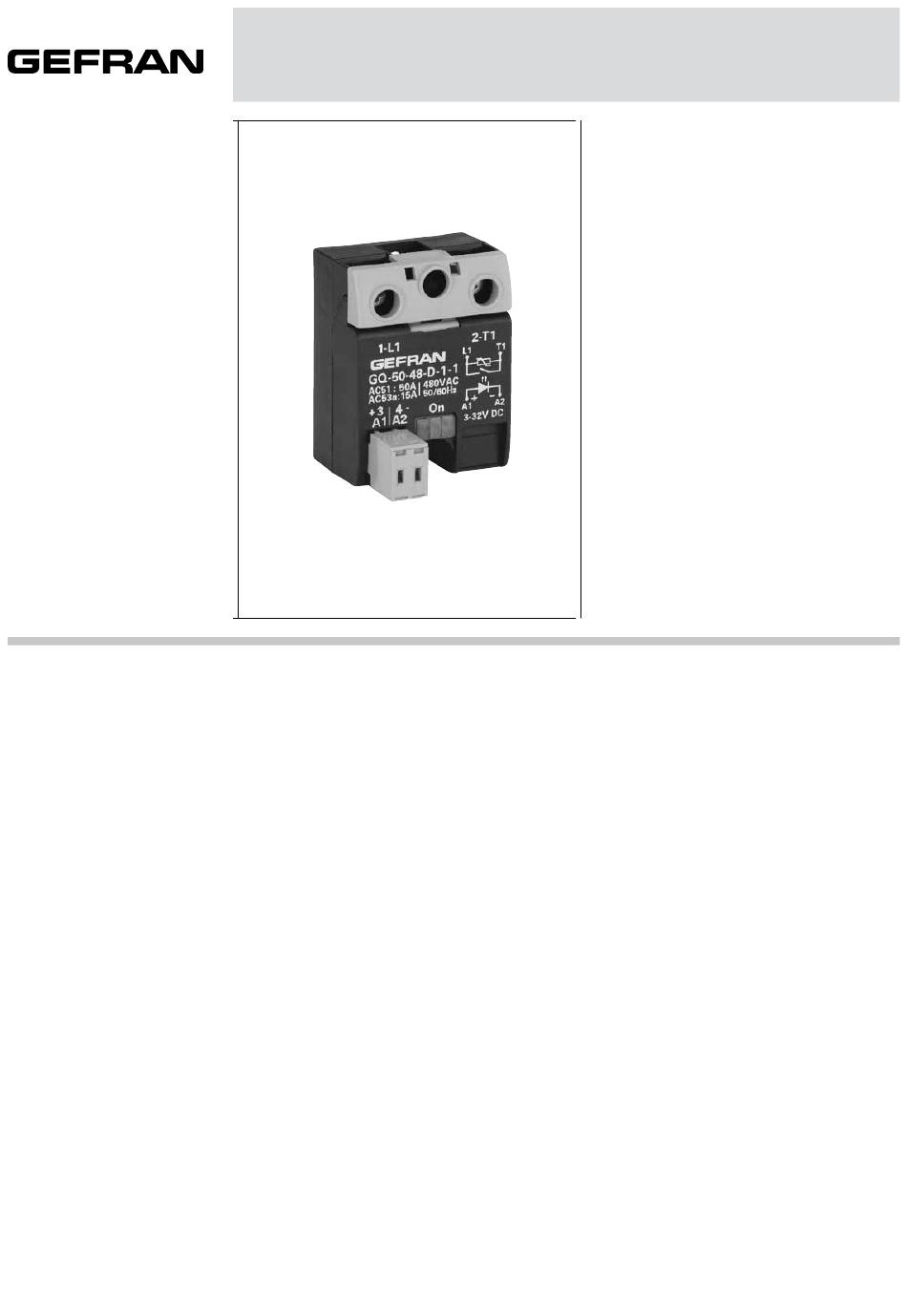

GQ 15 / 25 / 50 / 90 A
SINGLE PHASE SOLID STATE RELAYS
TECHNICAL DATA
General features
Rated frequency: 45...65Hz
Activation time:
GQ...-D- ≤1/2 cicle GQ...-A- ≤1 cicle
Deactivation time:
GQ...-D- ≤1/2 cicle GQ...-A- ≤1 cicle
Power factor: ≥0,5
Protection level: IP20
• U imp = 4,8KV
• U i = 660V
• Overload current profile = 10
• Conditional short circuit current = 5KA with
type 1 coordination and respective fuse protec-
tions.
GQ15/25 fuse type aM6A
GQ50 fuse type aM16A
GQ90 fuse type aM20A
GQ...- 24-
Nominal voltage: 24...230 Vac
(max range 20...253Vac)
Non-repetitive voltage: ≥ 600 Vp
Zero switching voltage: ≤ 20V
GQ...- 48-
Nominal voltage: 48...480 Vac
(max range 40...528Vac)
Non-repetitive voltage: ≥ 1200 Vp
Zero switching voltage: ≤ 40 V
Main features
• Alternating current solid state relay
• Zero crossing switching
• Copper/semiconductor coupling
technology
• 15, 25, 50 and 90Arms nominal
current
• Non-repetitive voltage: up to
1600Vp
• Nominal Voltage: up to 600 Vac
• Control voltage : 3...32Vcc and
20...260Vac/Vcc with connector
• Isolation ((input-output)
4000Vrms
• Red LED drive active signal
• Internal MOV (option)
GQ...- 60-
Nominal voltage: 48...600 Vac
(max range 40...660Vac)
Non-repetitive voltage: ≥ 1200 Vp
Zero switching voltage: ≤ 40V
Control input A1 - A2
GQ...-D-
Control voltage: 3...32Vcc
Turn ON voltage: ≥ 2,7Vc.c
Turn OFF voltage: ≤ 1Vcc
Reverse voltage: < 36Vcc
Consumption: ≤ 13mA@32V
GQ...-A-
Control voltage: 20...260Vac/Vcc
Turn ON voltage: ≥ 15Vac/Vcc
Turn OFF voltage: ≤ 6Vac/Vcc
Consumption: ≤ 8mAac/cc@260Vac/Vcc
Series connection of control inputs:
max. no. GQ...-A in series = Vcontrol
-10% / 20
Output L1 - T1
GQ - 15 -
Nominal current :
AC51: 15Arms; AC53A (*): 3Arms
Min load current: 0,1Arms
Repetitive overcurrent t=1 s: ≤ 35Arms
Non-repetitive overcurrent t=20ms:200Ap
