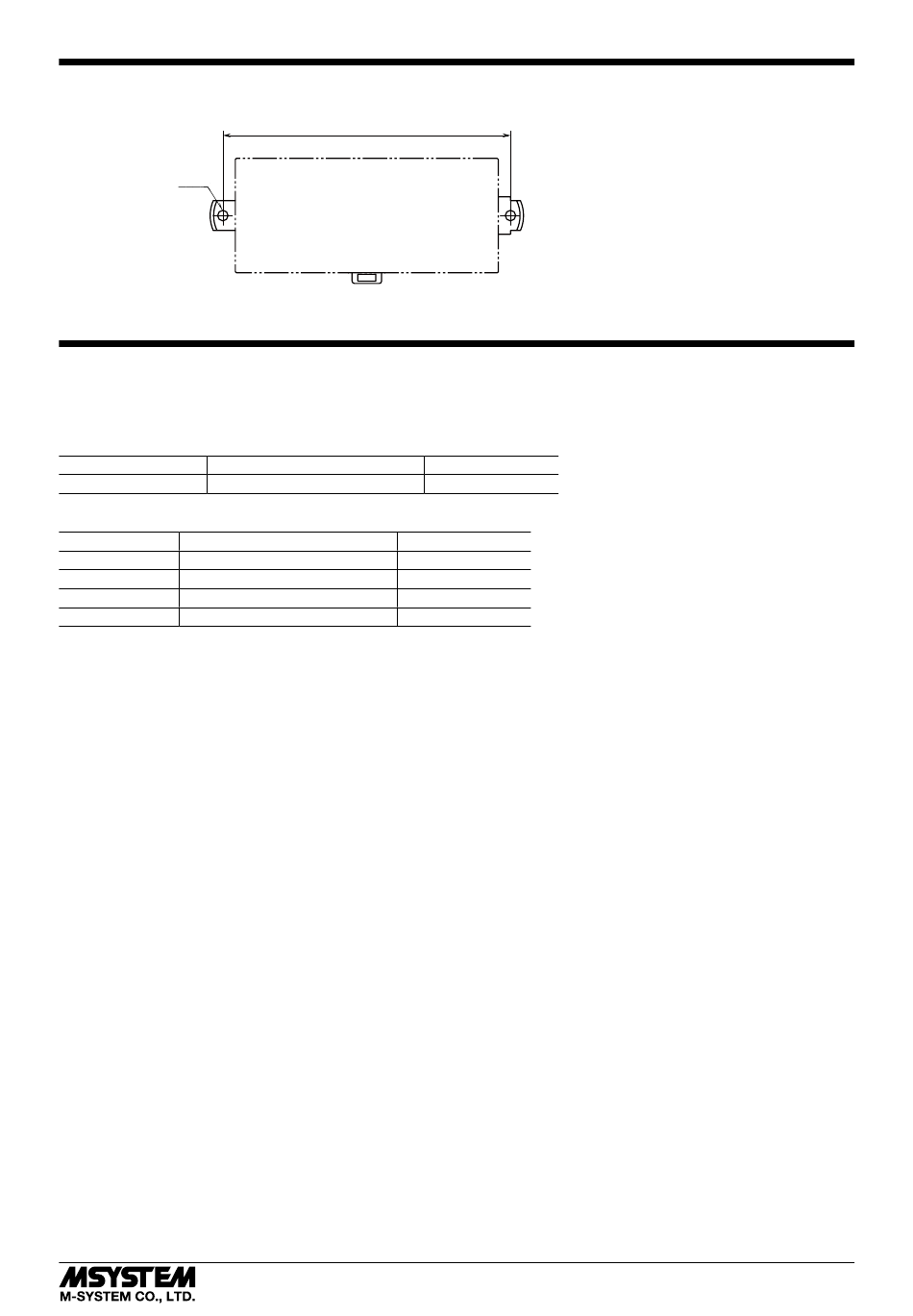

MOUNTING REQUIREMENTS

2-M4
PC CONFIGURATOR
The following parameter items can be configured with the PC configurator software (model: R7CFG).
Refer to the users manual of the software for detailed operations.
■ CHANNEL BATCH SETTING
PARAMETER SETTING RANGE
Output Hold / Clear Hold / Clear
■ ETHERNET SETTING
PARAMETER SETTING RANGE
IP Address 0.0.0.0 – 255.255.255.255
Subnet Mask 0.0.0.0 – 255.255.255.255
Default Gateway 0.0.0.0 – 255.255.255.255
Time Out 0.0 – 3276.7 (sec.)
unit: mm [inch]
125 [4.92]
DEFAULT SETTING
Hold
DEFAULT SETTING
192.168.0.250
255.255.255.0
192.168.0.1
3.0 (sec.)
