Component Identification - M-system R7F4HEIP-DC16B Instruction Manual

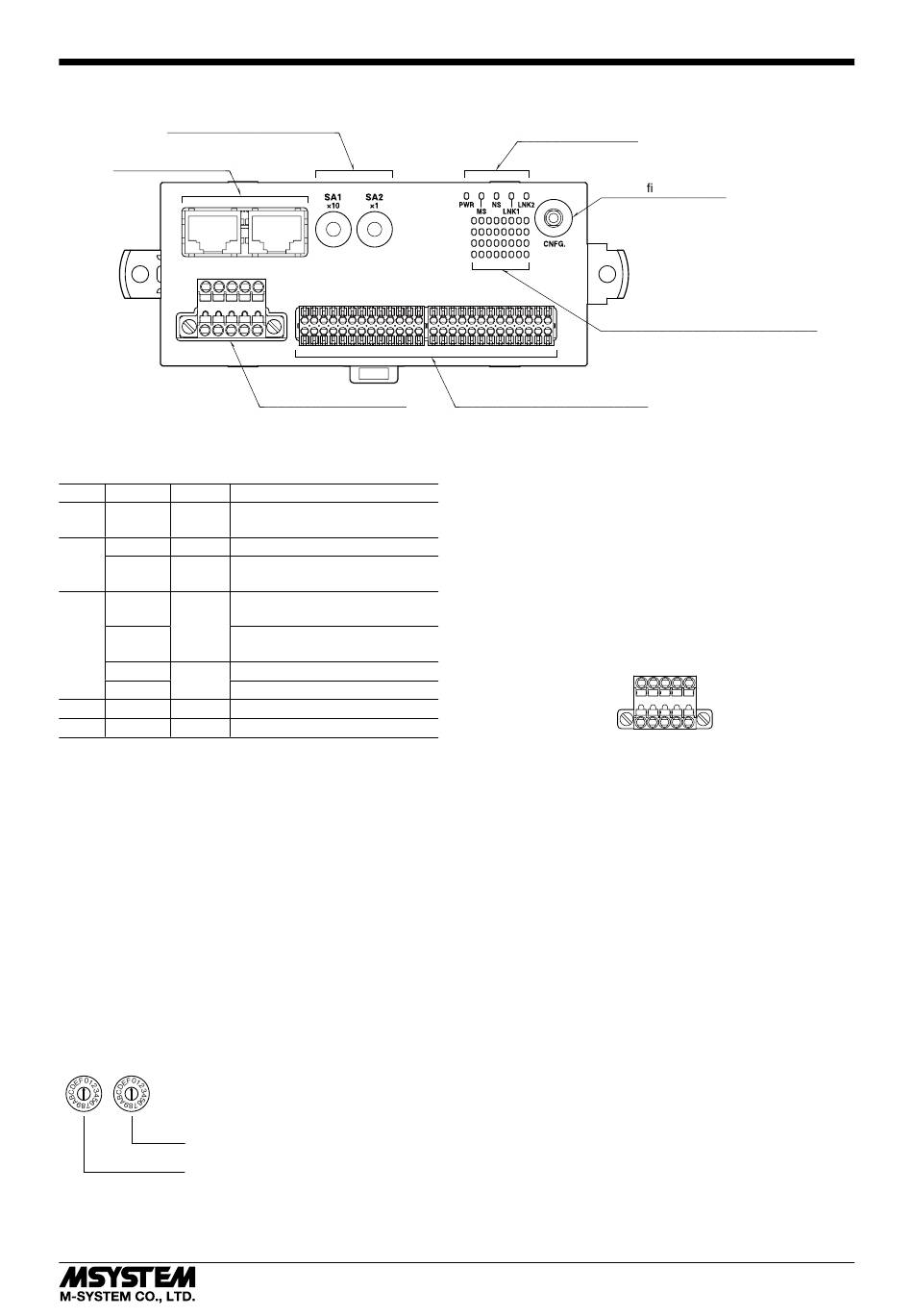

COMPONENT IDENTIFICATION

IP Address Setting Rotary SW
RJ-45 Modular Jack
■ STATUS INDICATOR LED
ID STATUS COLOR FUNCTION
PWR ON Green
MS ON Green
Blinking Red
NS ON Green
Blinking
ON Red
Blinking
LNK1 ON Green
LNK2 ON Green
■ DISCRETE OUTPUT STATUS INDICATOR LED
LED green indicators shows the signal status.
ON : LED ON
OFF : LED OFF
■ IP ADDRESS
Set the host address (2-digit hexadecimal number) in the
IP address using rotary switches SA1 and SA2 for the first
digit and the second digit, respectively.
When using the host address in the IP address set on the
PC configurator software (model: R7CFG), set the switches
to '00H'.
When the network address, Subnet Mask, and Default
Gateway need to be changed, do so on R7CFG.
(Setting range: 00H – FFH)
(Factory setting: 00H)
IP Address Host Address MSD (×1)
IP Address Host Address LSD (×10)
Power Supply Connector
The internal power is supplied
normally.
Operating in a normal condition
Duplicated IP address,
Internal data error
Link on-line and connections in
the established state
Link on-line but no connections
in the established state
Duplicated IP address
Communication timeout
LNK1 is established
LNK2 is established
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
Status Indicator LED
PC Con gurator Jack
Discrete Output Status Indicator LED
Sensor Exc. / Output Connectors
■ POWER SUPPLY TERMINAL ASSIGNMENT
Applicable connector: TFMC1,5 / 5–STF–3,5(Phoenix Contact)
(included in the package)
Applicable wire size: 0.2 − 1.5 mm
Recommended solderless terminal
• AI0,25-10YE 0.25 mm (Phoenix Contact)
2
• AI0,34-10TQ 0.34 mm (Phoenix Contact)
2
• AI0,5-10WH 0.5 mm (Phoenix Contact)
2
• AI0,75-10GY 0.75 mm (Phoenix Contact)
2
• A1-10 1.0 mm (Phoenix Contact)
2
• A1,5-10 1.5 mm (Phoenix Contact)
2
1. FE
2. NC
3. NC
4. +24V
5. 0V
R7F4HEIP-DC16B
; stripped length 10 mm
2
1 2 3 4 5
Functional Earth
—
—
Power Input ( 24V DC )
Power Input ( 0V )
EM-8005-C P. 2 / 7
