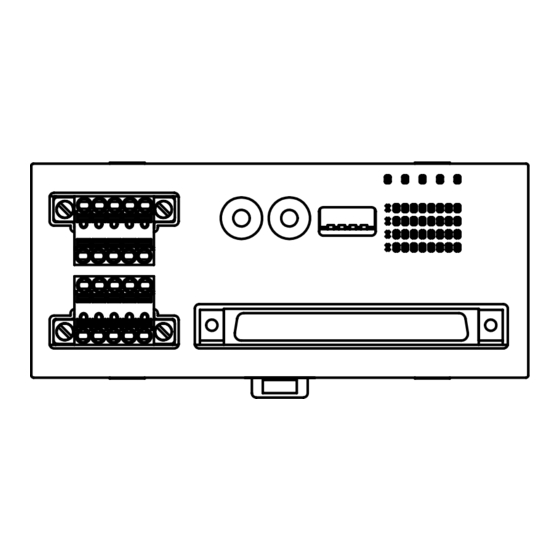

Cc-link i/o module (npn/pnp discrete input, pnp discrete output, 16 points each, fcn connector)

Advertisement

INSTRUCTION MANUAL
CC-Link I/O MODULE
(NPN/PNP discrete input, PNP discrete output,
16 points each, FCN connector)
BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Discrete I/O module ............................................................(1)
DIN rail mounter slider ......................................................(2)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
■ CSP+ file
CSP+ file is downloadable at M-System's web site (https://
www.m-system.co.jp) or CC-Link Partner Association's web
site (https://www.cc-link.org).
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL
POINTS OF CAUTION
■ CONFORMITY WITH EU DIRECTIVES
• The equipment must be mounted inside the instrument
panel of a metal enclosure.
• The actual installation environments such as panel con-
figurations, connected devices, connected wires, may af-
fect the protection level of this unit when it is integrated
in a panel system. The user may have to review the CE
requirements in regard to the whole system and employ
additional protective measures* to ensure the CE con-
formity.
* For example, installation of noise filters and clamp fil-
ters for the power source, input and output connected
to the unit, etc.
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
24V DC rating: 24V ±10%, ≤ 50 mA
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and I/O signal for safety.
• Before you remove the connector or mount it, make sure
to turn off the power supply and I/O signal for safety.
• DO NOT set the switches on the module while the power
is supplied. The switches are used only for maintenance
without the power.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
• With vertical mounting, for heat dissipation leave at least
10 mm (.39 in.) at the both side of the unit.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
R7F4HC-DAC32D-K
EM-8009-C P. 1 / 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R7F4HC-DAC32D-K and is the answer not in the manual?

Questions and answers

Summary of Contents for M-system R7F4HC-DAC32D-K

  • Page 1 16 points each, FCN connector) BEFORE USE ..POINTS OF CAUTION Thank you for choosing M-System. Before use, please check ■ CONFORMITY WITH EU DIRECTIVES contents of the package you received as outlined below. • The equipment must be mounted inside the instrument If you have any problems or questions with the product, panel of a metal enclosure.
  • Page 2: Component Identification

    To use the terminating resistor, turn the switch ON, and OFF to invalidate. (Factory setting OFF) Station Address Setting (x1) Station Address Setting (x10) EM-8009-C P. 2 / 7 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 3 Input 13 Input 5 Input 12 Input 4 Input 11 Input 3 Input 10 Input 2 Input 9 Input 1 Input 8 Input 0 EM-8009-C P. 3 / 7 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 4: Mounting Instructions

    B) Set the upper hook at the rear side of the unit on the DIN rail. C) Push in the lower. Note: leave at least 10 mm (.39 in.) at the both side of the unit. EM-8009-C P. 4 / 7 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 5: Terminal Connections

    ■ EXTERNAL DIMENSIONS unit: mm [inch] 138 [5.43] 72 [2.83] 123 [4.84] 55 [2.17] 115 [4.53] DIN rail (35mm wide) (4 [.16]) 2-4.3 [.17] dia. 4 [.16] deep EM-8009-C P. 5 / 7 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 6 Caution: FE1 terminal is NOT a protective conductor terminal. To other CC-link device PWR+ POWER (IN) PWR– – PWR+ POWER (OUT) PWR– + – – + – VS– Exc. supply VS– EM-8009-C P. 6 / 7 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 7: Mounting Requirements

    R7F4HC blue white *1 Terminating *1 Terminating yellow Resistor Resistor *1. Turn on the terminator DIP switch to activate the internal terminating resistor. EM-8009-C P. 7 / 7 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
