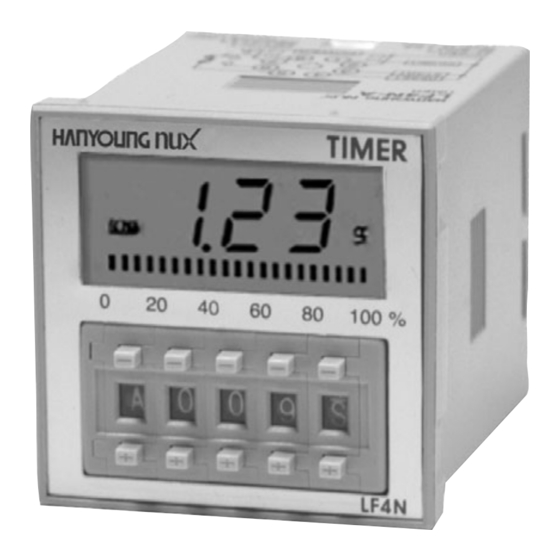

HANYOUNG NUX LF4N Instruction Manual

Thank you for purchasing HANYOUNG NUX Co.,Ltd. product.
Please check whether the product you purchased is the exactly same
as you ordered. Before using this product, please read instruction
manual carefully.
Safety Information
Please read safety information carefully before use and then use this product
properly. Safety information described in this manual contains important contents
related with safety. So please follow the instructions accordingly. Safety
information is composed of DANGER, WARNING and CAUTION.
DANGER
Do not touch or contact the input/output terminals because they may cause electric
shock.
WARNING
1. If there is a possibility of an accident caused by errors or malfunctions of this product,
install external protection circuit to prevent the accident.
2. This product does not contain an electric switch or fuse, so the user needs to install a
separate electric switch or fuse externally. (Fuse rating : 250 V 0.5 A)
3. To prevent defection or malfunction of this product, supply proper power voltage in
accordance with the rating.
4. To prevent electric shock or malfunction of this product, do not supply the power until the
wiring is completed.
5. Since this product is not designed to explosion-protective structure, do not use it at the
places which have flammable or explosive gas.
6. Do not disassemble, modify, revise or repair this product. This may cause malfunction,
electric shock or fire.
7. Attach or detach this product while the power is off. Otherwise, it may cause malfunction
or electric shock.
8. It you use the product with methods other than specified by the manufacturer, there may
be bodily injuries or property damages.
9. Due to the danger of electric shock, use this product installed onto a panel while an
electric current is applied.
CAUTION
1. The contents of this manual may be changed without prior notice.
2. Please check whether the product you purchased is the exactly same as you ordered.
3.Please check whether the product has no damage or abnormality during
delivery.
4. Do not use this product with time setting "0"
5. Change setting time in condition of "Power OFF". If change setting time in condition of
"Power On", reset should be done.
6. Do not use the product at the places which have corrosive(especially noxious gas or
ammonia) or flammable gas.
7. Do not use this product at any place with direct vibration or impact.
8. Do not use this product at any place with liquid, oil, medical substances, dust, salt or iron
contents. (Pollution level 1 or 2)
9. Do not polish this product by substances such as alcohol or benzene.
10. Do not use this product at any place with excessive induction trouble, static electricity or
magnetic noise.
11. Do not use this product at any place with possible thermal accumulation due to direct
sunlight or heat radiation.
12. Install this product at place under 2,000m in altitude.
13. When the product gets wet, the inspection is essential because there is danger of an
electric leakage or fire.
14.If there is an excessive noise from power supply, it is recommended to use insulating
transformer and noise filter. The noise filter must be attached to the panel grounded and
wiring between the filter output side and power supply terminal should be as short as
possible.
15. If gauge cables are arranged too closely, the effect on noise may occur.
16. Do not connect anything to the unused terminals.
17. After checking polarity of terminal, connect wires to the right position.
18. When this product is connected to a panel, use a circuit breaker or switch approved by
IEC947-1 or IEC947-3.
19. Install the circuit breaker or switch at near place for convenient use.
20. Write down on a label that the operation of circuit breaker or switch disconnects the
power since the devise is installed.
21. For the continuous and safe use of this product, the periodic maintenance is
recommended.
22. Some parts of this product have limited life span, and others are changed by their usage.
23. The warranty period of this product including parts is one year if this product is properly used.
24. When power is on, the preparation period of contact output is required. In case of using
signals of external interlock circuit, use a delay Relay.
1381-3, Juan-Dong, Nam-Gu Incheon, Korea
HEAD / OFFICE
TEL: (82-32)876-4697 FAX : (82-32)876-4696
Model
Model
Power voltage
Socket
Output Time limit 1c
Instantaneous 1c
Timing range
10 kinds
Output operations
Input signal RESET,START,INHIBIT
Specification
Model
Power voltage
Display
Voltage regulation
LF4N-A, LF4N-D
Power
consumption
LF4N-B, LF4N-C
Resetting time
Minimum Signal Time LF4N-A, LF4N-D
START Input
Input
LF4N-A, LF4N-D
INHIBIT Input
condition
RESET Input
Repeatability LF4N-A, LF4N-D
of operating time
LF4N-B, LF4N-C
Control output
Contact relay : 250 V a.c 3 A (Load Resistance)
Insulation Resistance
Dielectric strength
Impulse Voltage
Mechanical
durability
Vibration
Malfunction
durability
Mechanical
durability
Shock
Malfunction
durability
Mechanical Over 1,000 million (Open & Short frequency : 180 / min)
Life
expectancy
Electrical Over 10 million (250 V a.c 3 A load Resistance)
Terminal type
Operation ambient
temperature
Storage temperature
Operation ambient humidity
Weight
Dimensions and Panel Cutout
MD0305E0809010
24 - 240 V a.c / d.c 50 - 60 Hz
8 Pin socket 11 Pin socket
Time limit 1c
Time limit 2c Time limit 1c
10 kinds of timing ranges
Fixing A mode
No Input
RESET,START,INHIBIT
LF4N
24 - 240 V a.c / d.c 50 - 60 Hz
LCD display
10 % from supply voltage
1.5 W (240 V d.c), 4.4 VA (240 V a.c)
2.2 W (240 V d.c), 7.2 VA (240 V a.c)
Max. 0.1 second
Over 20 ms (START, INHIBIT, RESET)
Non voltage input
Impedance in a short circuit : Max. 2
Residual voltage in a short circuit : Max. 0.7 V d.c
Impedance in open : Min. 100
Max. 0.01 % 0.05 second (In case of Power-on start)
Max. 0.005 % 0.03 second (In case of Signal-on start)
0.01 % 0.05 second (In case of Power-on start)
Min 100 M (Based on 500 V d.c)
2000 V a.c 50 / 60 Hz for 1 minute
2000 V Max.
10 - 55 Hz double amplitude 0.75 mm
10 - 55 Hz double amplitude 0.5 mm
300 (Less than 30 G)
100 (Less than 10 G)
Plug 8PIN, Plug 11PIN
-10 ~ 55 (No condensation)
-20 ~ 65 (No condensation)
35 ~ 85 % R.H.
About 110 g (Include Fixing bracket)
10 kinds
(Unit : mm)
