HANYOUNG NUX LT4 Series Instruction Manual

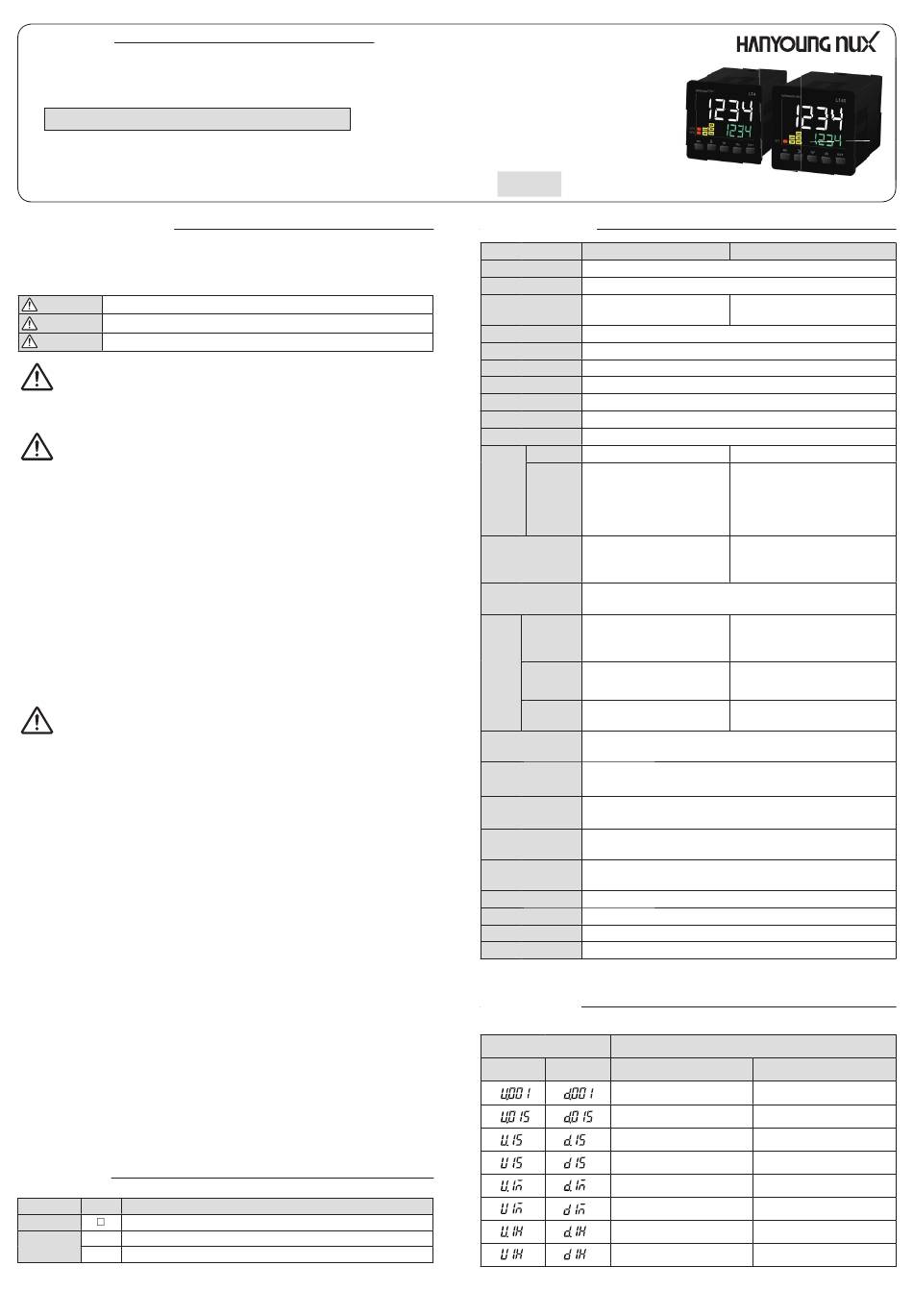

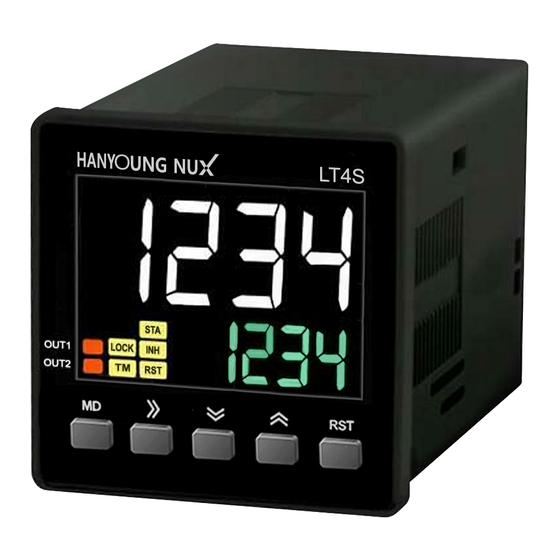

LCD Timer
LT4
series
INSTRUCTION MANUAL
Thank you for purchasing Hanyoung Nux products. Please read the instruction
manual carefully before using this product, and use the product correctly. Also,
please keep this manual where you can view it any time.
Safety information
Please read the safety information carefully before the use, and use the product
correctly.The alerts declared in the manual are classified into Danger, Warning and
Caution according to their importance
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor iinjury or property damage
DANGER
• The input/output terminals are subject to electric shock risk. Never let the input/output
terminals come in contact with your body or conductive substances.
WARNING
• Any use of the product other than those specified by the manufacturer may result in
personal injury or property damage.
• If there is a possibility that a malfunction or abnormality of this product may lead to a
serious accident to the system, install an appropriate protection circuit on the outside.
• Since this product is not equipped with a power switch and fuse, install them separately
on the outside (fuse rating: 250 V a.c. 0.5 A).
• Please supply the rated power voltage, in order to prevent product breakdowns or
malfunctions.
• To prevent electric shocks and malfunctions, do not supply the power until the wiring is
completed.
• The product does not have an explosion-proof structure, so avoid using it in places with
flammable or explosive gases.
• Never disassemble, modify, process, improve or repair this product, as it may cause
abnormal operations, electric shocks or fires.
• Please disassemble the product after turning OFF the power. Failure to do so may result
in electric shocks, product abnormal operations or malfunctions.
• Please use this product after installing it to a panel, because there is a risk of electric shock.
CAUTION
• The contents of this manual may be changed without prior notification.
• Please make sure that the product specifications are the same as you ordered.
• Please make sure that there are no damages or product abnormalities occurred during shipment.
• Please use the product in places where corrosive gases (especially harmful gases,
ammonia, etc.) and flammable gases are not generated.
• Please use the product in places where vibrations and impacts are not applied directly.
• Please use the product in places without liquids, oils, chemicals, steam, dust, salt, iron, etc.
• Please do not wipe the product with organic solvents such as alcohol, benzene, etc.
(use neutral detergents).
• Please avoid places where large inductive interference, static electricity, magnetic noise
are generated.
• Please avoid places with heat accumulation caused by direct sunlight, radiations, etc.
• Please use the product in places with elevation below 2000 m.
• When water enters, short circuit or fire may occur, so please inspect the product carefully.
• When there is a lot of noise from the power, we recommend to use insulation
transformer and noise filter. Please install the noise filter to a grounded panel or
structure etc. and make the wiring of noise filter output and product power supply
terminal as short as possible.
• Tightly twisting the power cables is effective against noise.
• Do not wire anything to unused terminals.
• Please wire correctly, after checking the polarity of the terminals.
• When you install this product to a panel, please use switches or circuit breakers
compliant with IEC60947-1 or IEC60947-3.
• Please install switches or circuit breakers at close distance for user convenience.
• We recommend regular maintenance for the continuous safe use of this product.
• Some components of this product may have a lifespan or deteriorate over time.
• The warranty period of this product, is 1 year, including its accessories, under normal
conditions of use.
• The preparation period of the contact output is required during power supply.
If used as a signal to external interlock circuit, etc. please use a delay relay together.
Suffix code
Model Code
LT4
- time limit 2c, time limit 1c + instantaneous 1c
Control
output
S
Content
LCD timer, 48 (W) X 48 (H) mm
time limit 1c
HANYOUNGNUX CO.,LTD
HEAD OFFICE/
28, Gilpa-ro 71beon-gil, Nam-gu, Incheon, Korea
FACTORY
TEL : (82-32)876-4697 FAX : (82-32)876-4696 http://www.hynux.com
Specification
Model
Power voltage 24 - 240 V a.c. 50/60 Hz, 24 - 240 V d.c. (dual usage)
Voltage fluctuation rate
4 VA max. (24-240 V a.c. 50/60 Hz)
Power Consumption
1.6 W max. (24- 240 V d.c.)
Display
Display mode
Display digits
Character height
Return time
External connection
Operating time range
Input signal
External
Input
input
method
Minimum input time
Operating time error
Operation POND / PFKF / PFKN / PINT /
mode TWON / TWOF / S-D
Control
Contact
output
configuration
Contact
250 V a.c. 5A resistive load
capacity
Relay life
Electrical life : 100,000 times min. (250 V a.c. 5A resistive load)
Insulation resistance
conductive part terminal and exposed unfilled metal)
2,000 V a.c. 60 Hz for 1 minute (conductive part terminal
Dielectric strength
Noise immunity
pulse width = 1 us, square-wave noise by noise simulator)
10 - 55 Hz (for 1 minute) single amplitude 0.5 mm
Vibration resistance
Shock resistance
Ambient temperature
Storage temperature
Ambient humidity
Time range
Parameter
UP DOWN
1
TD
LT4 LT4S
± 10 % of power voltage
4.5 VA max. (24-240 V a.c. 50/60 Hz)
2 W max. (24-240 V d.c.)
Wide viewing angle negative LCD display
Addition and subtraction
4 digits
PV display: 14mm, SV display: 8.5mm
100 ms max.
socket 8 pin
0.01 sec ~ 9999 hour
- START, INHIBIT, RESET
non-voltage input, impedance during short
circuit : 1 kΩ max.
- Residual voltage during short circuit : 0.5 V
max.
impedance during open : 100 kΩ min.
START, INHIBIT,
- RESET min. input signal width
1ms / 20ms selection
Power START : ± 0.01 % ±0.05 sec max.,
Signal START : ± 0.005 % ±0.03 sec max.
SOND / SFKF / SINT / SNFN /
SNFF / SOFD / S.OND / S.FKN /
S.INT / S.ODR
time limit 2c, instantaneous 1c
time limit 1c
+ time limit 1c
250 V a.c. 3A resistive load
(N.O.:5A, N.C.:3A)
Mechanical life : 10,000,000 times min.,
100 MΩ min. (500 V d.c. mega standard,
and exposed unfilled metal)
± 2 kV (among operation power terminals,
X, Y, Z each direction, 2 h
300 ㎨ (30G) X, Y, Z each direction, 3 times
-10 ~ 55 ℃ (with no icing)
-25 ~ 65 ℃ (with no icing)
35 ~ 85 % R. H.
Time range
Decimal Sexagesimal
0.01sec ~ 9.999sec 0.01sec ~ 9.999sec
0.01sec ~ 99.99sec 0.01sec ~ 59.99sec
0.1sec ~ 999.9sec 0.1sec ~ 9m 59.9sec
1sec ~ 9999sec 1sec ~ 59min 59sec
0.1min ~ 999.9min 0.1min ~ 9hour 59.9min
1min ~ 9999min 1min ~ 99hour 59min
0.1hour ~ 999.9hour 0.1hour ~ 999.9hour
1hour ~ 9999hour 1hour ~ 9999hour
MD1101E170927
