Summary of Contents for Enertech Bentone B60-2FH
- Page 1 178 039 61-2 2016-11-28 Providing sustainable energy solutions worldwide Installation- and maintenance instruction B60-2FH...
- Page 3 DESCRIPTION COMPONENTS 1. Flame cone 12. Indicating lamp Stage 2 23. Connecting pipe 2. Shrouded disc 13. Cover, inspection glass pump-solenoid valve bloc 3. Nozzle 14. Indicating lamp Stage 1 24. Air intake 4. Nozzle assembly 15. Switch 0-l 25. Solenoid valve bloc 5.
-
Page 4: Technical Data
TECHNICAL DATA Type designation B 60-2 DIMENSIONS Length of Flange burner tube Measure B Burner head Standard Burner head Long design OUTPUT RANGE AND NOZZLES RECOMMENDED Oil capacity Output Recommended nozzle Recommended kg/h Mcal/h Angle Danfoss Monarch Pump pressure 60-2 ø 130 20,0-63,0 237-747 204-642... - Page 5 BURNER HEAD Brake plate ø120 10,0-13,0 3,5-4,0 2,0-3,0 7,0-9,0 BURNER HEAD Brake plate ø110 10,0-13,0 3,5-4,0 2,0-3,0 7,0-9,0 171 215 79 00-02...
- Page 6 TECHNICAL DATA DIMENSIONS OF FLANGE ø160 171 225 37 00-01...
-
Page 7: General Instructions
GENERAL INSTRUCTIONS GENERAL RULES OIL SUPPLY CONDENSATION IN CHIMNEY The installation of an oil burner should The oil line should be dimensioned in A modern burner works with less ex- be carried out in accordance with local accordance with pump cess air and often also with smaller regulations. - Page 8 GENERAL INSTRUCTIONS ADJUSTMENT OF NOZZLE ASSEMBLY Adjust the nozzle assembly with the adjustment screw D to the desired position. AIR ADJUSTMENT First stage: Set the operating switch (S2) on low capacity (I). Loosen the screw (A) and turn the damper to the position wan- ted.
- Page 9 MAINTENANCE OF OIL BURNER Warning: Before doing any service switch off power at the main switch and cut off the oil supply. SERVICE OF BURNER HEAD (alt. A) SERVICE OF BURNER HEAD (alt. B) NOTE! For maintenance of the brake plate, nozzles, electrodes etc, when using a long design of the burner tube, you have to remove the nozzle assembly...
- Page 10 ELECTRIC EQUIPMENT LIST OF COMPONENTS OIL BURNER CONTROL: LAL 3... Oil burner control WIRING DIAGRAM Photoresistor Operating fuse Fuse Fuse Lamp, low capacity Lamp, high capacity Thermal overload protection M1 Burner motor Time meter, low capacity (optional) Time meter, high capacity (optional) Operating switch Operating switch, high/low capacity Control thermostat...
-
Page 11: Electric Equipment

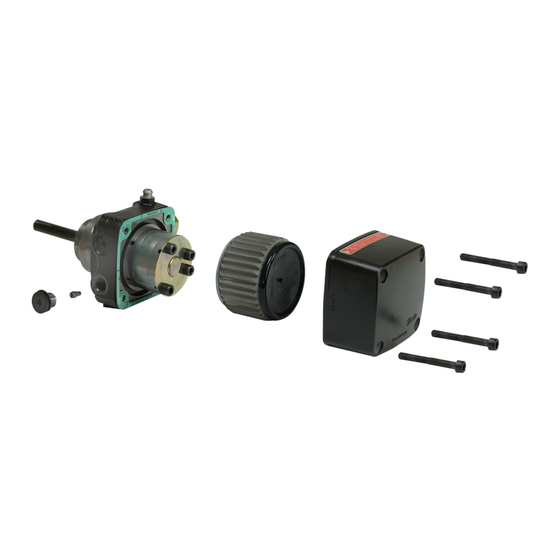

CONTROL PROGRAMME UNDER ELECTRIC EQUIPMENT FAULT CONDITIONS AND LOCK- OIL BURNER CONTROL: LAL3... OUT INDICATION In the event of fault conditions the FUNCTION sequence switch stops and simul- Switch on operating switch and twin thermostat taneosly the lock-out indicator. The The burner motor starts, an ignition spark is formed, the prepurge goes symbol appearing above the reading on till the prepurge period expires and the solenoid valve 1 opens (2). - Page 12 INSTRUCTIONS PUMP TYPE DANFOSS RSA 60 TECHNICAL DATA Viscosity range: 1,3-18,0 mm (with 20°) Pressure range: 5,5-21,0 bar Factory setting: 14 bar Rated voltage of coil: 220/240V 50/60 Hz Oil temperature: -10 to +70°C COMPONENTS 1.Pressure gauge port G 1/8" 2.Nozzle port G 1/8"...
- Page 13 FUNCTION DANFOSS RSA 28 - 40 - 60 When the pump is started oil is drawn through the suction port "S" via filter "H" to the suction side of the gearwheel set "C". From here the gearwheel set pumps the oil to the pressure side and at the same time the oil becomes pressurized.
- Page 14 NOZZLE TABLE Pump pressure bar kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h 1,00 3,72 3,90 4,08 4,24 4,40 4,56 4,71 4,85 1,10 4,09 4,29 4,48 4,67...
-
Page 15: Fault Location
FAULT LOCATION BURNER FAILS TO START Situation Possible causes Remedies Motor runs Flame instabillity Check nozzle to burner head dimension and Burner pre-purges Incorrect head settings electrode position Low oil pressure Check oil pressure Adjust air damper Flame occurs Excess air Burner locks out Photocell not seeing light Check that photocell is clean and unobstructed... -
Page 16: Declaration Of Conformity
B20, B30, B40, B45 02119815004 B50, B60, B70, B80 040588622001 B55 040588622002 B65 Enertech AB declares under sole responsibility that the above mentioned product is in conformity with the following standards or other normative documents. Document: EN 267 and follows the provisions of applicable parts in the following EU Directives:... - Page 18 OIL BURNERS MAINTENANCE INSTRUCTIONS General information If the burner starts but does not ignite Keep the boiler room clean. Ensure that the boiler Make an attempt to start the burner. room has permanent fresh air intake. Switch off before Never make close repeated start attempts. dismantling the oil burner.
- Page 20 Enertech AB. P.O Box 309, SE-341 26 Ljungby. www.bentone.se, www.bentone.com...
