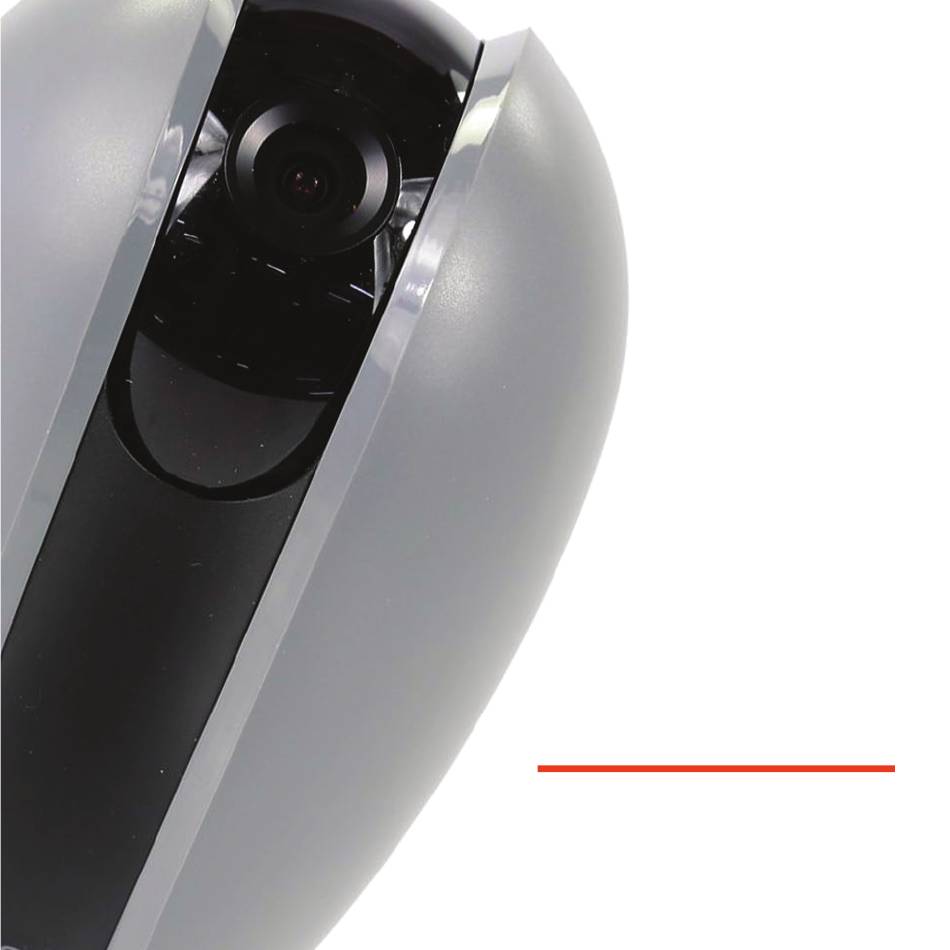

- Page 1 Olivia3 Start Up Guide Protect and monitor all that you love and value...
-
Page 2: Table Of Contents
Contents What’s in the box Get Started Download App Register Add a Home 8-11 Add Olivia3 Live View Add SD Card Format SD Card 15-18 Cloud Storage Playback Multi Camera View 20-21 22-26 Web View Reset Installation Struggling to read? View this start up guide online at time2technology.com/manuals... -
Page 3: What's In The Box
What’s in the box Olivia3 WiFi Camera Power Adapter USB Cable Start Up Guide Wall Mounting Kit Reset Pin Be ready You will need your WiFi router password. Write it down below so its handy when you need it! -
Page 4: Get Started
Get Started Connect Olivia to the mains using the power adapter and USB cable provided. The red LED will come on once plugged in and Olivia will chime twice before she is ready to connect. If you would like Olivia to record, you will be required to insert a Micro SD card. -
Page 5: Download App
Download App Download the "Clan at home" app from the iOS App Store or Google Play Store... -
Page 6: Register
Register Step 1 Step 2 Select Register, carefully read the Enter your email address Privacy Policy and select Agree if you would like to progress... - Page 7 Register Step 3 Step 4 Enter the verification code Create your password to login sent via email...
-
Page 8: Add A Home
Add Home Step 1 Step 2 Click Me in the bottom right Select Home Management hand corner... - Page 9 Add Home Step 3 Step 4 Select My Home. Enter a name Select Complete and your home for your home and a location. will be created Click Save...
-
Page 10: Add Olivia3
Add Olivia3 Step 1 Step 2 Select Security and Sensors In My Home, click the (+) icon in down the left hand side and the top right-hand corner of the screen click Smart Camera... - Page 11 Add Olivia3 Your WiFi Step 3 Step 4 Make sure the LED indicator Enter your WiFi router password. is flashing red, then select the Then press Next tick box and press Next...
- Page 12 Add Olivia3 Step 5 Step 6 If you heard Olivia chime, Remove the plastic film from press I Heard a Prompt the camera lens If you don’t hear the chime, Hold your phone up to Olivia as reposition Olivia in front of...
- Page 13 Add Olivia3 Olivia3 Olivia 2 Step 7 Step 8 Olivia will then establish a Once connected you can change Olivia’s name and select the room connection to Clan she’s in. Press Done...
-
Page 14: Live View
Live View Olivia3 Hear what is happening around the camera Select the video quality (lower quality) may broadcast more smoothly) Full Screen Save a screenshot on your smartphone memory Select to speak into the camera Record live footage onto your... -
Page 15: Add Sd Card
Add SD Card If you would like Olivia to record, you will be required to insert a Micro SD Card. Olivia will support any sized Micro SD Card up to 128GB Step 1 Turn off power to Olivia Step 2 Gently rotate the lens upwards to locate the Micro SD Card slot. -
Page 16: Format Sd Card
Format SD Card Before Olivia can start recording, you will have to format the Micro SD Card. Olivia3 Step 1 Step 2 Select your camera and click on Click Format SD Card and press the pencil icon in the top right. - Page 17 Cloud Storage (Single Camera) If you would like Olivia to record, you will be required to inset a Micro SD card Alternatively, you can sign up to the optional cloud storage. The camera can be set to record continuously or once it detects movement. You can also choose to store the recorded footage for 7,14 or 30 days.
- Page 18 Step 3 Step 4 Click Subscribe Choose which service you would like. You will be then directed to make the payment.
- Page 19 Cloud Storage (Multiple) Instead of paying per camera why not bundle your Cloud Storage. Please note selecting this option will only set the camera to record when it detects movement. Step 1 Step 2 Step 3 Click ‘ME’ Click ‘More Services’ Click ‘Cloud Storage for cameras’...
- Page 20 Step 4 Step 5 Click ‘Subscribe’...
-
Page 21: Playback
Playback Hear sound recorded on footage Full screen Slide to select the time you want to view Save the playback camera footage onto your phone memory Change date of video playback Save a screenshot of playback video onto your phone memory... -
Page 22: Multi Camera View
Multi Camera View Step 1 Click on the camera in the top right hand corner. - Page 23 Multi Camera View Red Outline- Controls the camera you have selected. Hear whats happening around your camera. Save a screenshot on your smartphone memory. Select to speak into your camera. Record live footage onto your smartphone memory. Full screen...
-
Page 24: Web View
Web View Step 1 Go to the following website on your PC. https://www.time2technology.com/webview/ and a QR code will be displayed. - Page 25 Web View Step 2 Step 3 Go into the Clan at Home Click on the square on the App and click on Me in the top right hand corner. bottom right hand corner.
- Page 26 Web View Step 4 Using your phone scan the QR code. Ensure the QR code is within the green square.
- Page 27 Web View Step 5 Click Confirm Login.
- Page 28 Web View 1. Select the home where you would like to view your cameras. 2. Select your camera. 3. Speaker – Listen in on what is going on around your camera. 4. Full screen 5. Cloud Service – View the recorded footage from the Cloud Service. 6.
-
Page 29: Reset
Reset If you are having trouble connecting to Olivia you may need to do a reset. How to reset Olivia3 Gently rotate the lens upwards to locate the reset button. Use the reset pin provided to hold down the button on the front of the... -
Page 30: Installation
Installation Easy Mounting Use the provided mounting bracket to mount the camera onto a surface, simply attach the bracket, ensuring it fits snugly on to the bottom of the camera. Then twist to the left. This locks the bracket into the camera. - Page 31 Be a part of Clan Are you on Facebook? Join our Clan to speak to other members of the Clan and our dedicated UK based support team: www.facebook.com/groups/partoftheclan Need further Help? Contact our Customer Support team on Social Me facebook.com/time2HQ m.me/time2HQ @time2HQ or visit our support page...
