EDITION: May 2013
Title: SERVICE MANUAL

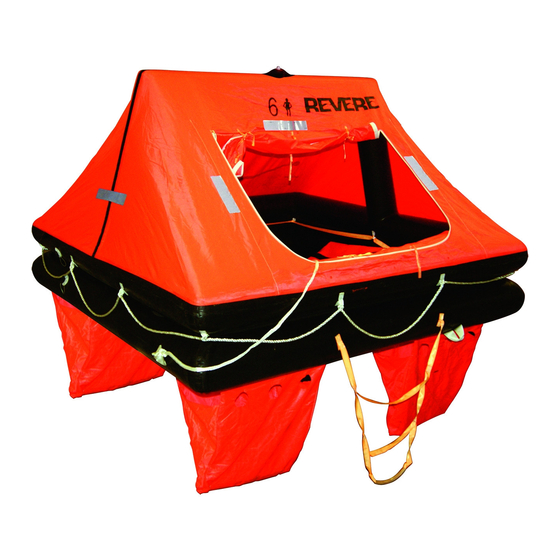

COASTAL CRUISER 6P LIFERAFTS
For
OFFSHORE OCEAN 4-6-8P LIFERAFTS
OFFSHORE OCEAN XTREME 4-6-8P LIFERAFTS
6
5
4
3
28/05/2013
2
14/06/2010
1
01/11/2007
0
14/07/2004
N°
DATE
REV.
Note:
This edition annuls and replaces any previous edition.
AMENDMENT
AMENDMENT
AMENDMENT
EMISSION
OBJECT OF
AMENDMENT
ISSUED
CHECKED
APPROVED
Code 55-15100211

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COASTAL CRUISER 6P and is the answer not in the manual?

Questions and answers

Related Manuals for Revere COASTAL CRUISER 6P

Summary of Contents for Revere COASTAL CRUISER 6P

  • Page 1 EDITION: May 2013 Title: SERVICE MANUAL COASTAL CRUISER 6P LIFERAFTS OFFSHORE OCEAN 4-6-8P LIFERAFTS OFFSHORE OCEAN XTREME 4-6-8P LIFERAFTS 28/05/2013 AMENDMENT 14/06/2010 AMENDMENT 01/11/2007 AMENDMENT 14/07/2004 EMISSION N° OBJECT OF DATE ISSUED CHECKED APPROVED REV. AMENDMENT Note: This edition annuls and replaces any previous edition.

  • Page 3: Table Of Contents

    LEISURE LIFERAFT SERVICE MANUAL Contents .......................... Page 1. MATERIALS AND CONSTRUCTION TECHNIQUE ............. 1.1 2. CONSTRUCTION DETAILS ....................2.1 2.1 OFFSHORE OCEAN LIFERAFT (4-6-8 PLACES) ............... 2.1 2.1.1 OFFSHORE OCEAN LIFERAFT: FRONT VIEW ............. 2.1 2.1.2 OFFSHORE OCEAN LIFERAFT: REAR VIEW..............2.2 2.1.3 OFFSHORE OCEAN LIFERAFT: SECTIONAL VIEW .............
  • Page 4 3.2.2 TOOLS NEEDED ......................3.3 3.2.3 PREPARATION OFD THE LIFERAFT ................3.4 3.2.4 WORKING PRESSURE TEST ..................3.4 3.2.5 OVERPRESSURE STRENGTH TEST - PNEUMATIC STRUCTURE ......3.6 3.2.6 CHECK OF THE CLOSURE PRESSURE FOR O.P. VALVES ........3.6 3.2.7 INFLATABLE FLOOR TEST (OFFSHORE OCEAN - XTREME) ........3.6 3.2.8 TABLE OF SERVICINGS .....................
  • Page 5 3.4.3 INSPECTING AND TESTING THE CYLINDER............. 3.32 3.4.3.1 HYDRAULIC TEST ....................3.32 3.4.4 REFILLING THE CYLINDER WITH VTE/99 VALVE ............3.32 3.4.4.1 REVERE RAFT CYLINDER CAPACITY ..............3.34 3.5 LIFERAFT STANDARD EQUIPMENT ................3.34 3.6 EQUIPMENT ........................3.40 3.6.1 REGISTRATION CARD ....................3.40 3.6.2 GUARANTEE REGISTRATION CARD ................
  • Page 6 4.2.2 PREPARING THE LIFERAFT ..................4.8 4.2.2.1 ILLUSTRATED PROCEDURE ................... 4.9 4.2.3 FOLDING THE LIFERAFT .................... 4.13 4.2.3.1 FOLDING THE COASTAL CRUISER 6P LIFERAFT ..........4.13 4.2.3.2FOLDING THE OFFSHORE OCEAN 4P LIFERAFT ..........4.15 4.2.3.3 FOLDING THE OFFSHORE OCEAN 6P LIFERAFT ..........4.17 4.2.3.4 FOLDING THE OFFSHORE OCEAN 8P LIFERAFT ..........
  • Page 7 Applicability The present technical Instruction reports the installation procedures of the water activated light type “L6A” (210cm cable) on liferafts produced by Revere Survival Products, in replacement of the LED3 (PN: 55-99990277) light formerly used. This Technical Update integrates the Service Manuals of the following raft models:...
  • Page 8 EV AT-13/04 Rev1 dated 26/08/2013 - Page 2 of 5 Materials required Item Q.ty 55-96880402 LIGHT KIT RETROFIT 1 kit CONSISTING OF: 55-99991529 LIGHT SYSTEM L6A (210) 1 pc. 55-10357385 PATCH FOR RETROFIT L6A (210) 1 pc. Procedures L6A light kit installed on Retrofit patch Retrofit patch configuration...
  • Page 9 EV AT-13/04 Rev1 dated 26/08/2013 - Page 3 of 5 L6A light kit installed on Retrofit patch (details) After removing the former light, apply the retrofit patch so that the patch hole corresponds to the hole on the canopy. Then mark the perimeter. Apply a coat of glue (EV/C2) on the patch and inside the marked perimeter of the canopy, leave about...
  • Page 10 EV AT-13/04 Rev1 dated 26/08/2013 - Page 4 of 5 Apply the patch over the perimeter. Pull the top part of the Velcro strip. Put the extremity of the L6A light in “OFF” position, as shown in picture. To facilitate the inserting through the patch hole.
  • Page 11 EV AT-13/04 Rev1 dated 26/08/2013 - Page 5 of 5 Pull the cable inside the canopy and apply the Velcro tape. Put the extremity of the L6A light in “ON” position, as shown in picture. The cable length is 210cm: place the extremity outside the raft, ready to go in contact of the water once the raft is deployed.
  • Page 12 Parent Publication (Manuals): ______________________________________________________ Title: Installation of light system type L6A (210cm cable) on Revere liferafts. NOTE: This page is not part of the respective technical publication but may be useful to record the acknowledgements of service technicians who may affect the quality condition of products undergoing service procedures.

  • Page 13: Materials And Construction Technique

    OFFSHORE OCEAN 1. MATERIALS AND CONSTRUCTION TECHNIQUE REVERE liferafts are constructed with high-tenacity polyester fabric coated with a specific mixture on both sides. This material is weather-proof and resistant to hydrocarbons and to temperature range. It is also rot-proof, it does not deteriorate with time and does not need any maintenance apart from normal cleaning with fresh water and detergent.

  • Page 15: Construction Details

    COASTAL CRUISER OFFSHORE OCEAN 2. CONSTRUCTION DETAILS 2.1 OFFSHORE OCEAN LIFERAFT (4-6-8 PLACES) 2.1.1 OFFSHORE OCEAN LIFERAFT: FRONT VIEW ITEM DESCRIPTION WATER POCKET EXTERNAL LIFELINE BOARDING RAMP CYLINDER ENTRANCE EXTERNAL LIGHT KNIFE POCKET...

  • Page 16: Offshore Ocean Liferaft: Rear View

    COASTAL CRUISER OFFSHORE OCEAN 2.1.2 OFFSHORE OCEAN LIFERAFT: REAR VIEW ITEM DESCRIPTION WATER POCKET EXTERNAL LIFELINE OVERPRESSURE VALVE BOARDING RAMP BOARDING LADDER ENTRANCE RAIN WATER COLLECTION EDGE VENTILATION SLEEVE EXTERNAL LIGHT AERIAL SLEEVE...

  • Page 17: Offshore Ocean Liferaft: Sectional View

    COASTAL CRUISER OFFSHORE OCEAN 2.1.3 OFFSHORE OCEAN LIFERAFT: SECTIONAL VIEW ITEM DESCRIPTION WATER POCKET THERMOINSULATING DOUBLE FLOOR INFLATING VALVE INTERNAL LIFELINE NON-RETURN VALVE EXTERNAL LIGHT...

  • Page 18: Offshore Ocean Liferaft: Top View (Canopy Opened)

    COASTAL CRUISER OFFSHORE OCEAN 2.1.4 OFFSHORE OCEAN LIFERAFT: TOP VIEW (CANOPY OPENED) ITEM DESCRIPTION RAIN WATER COLLECTION EDGE BOARDING RAMP VENTILATION SLEEVE AERIAL SLEEVE CANOPY BORDER OPENED EMERGENCY PACK BOARDING LADDER EXTERNAL LIGHT FLOATING ANCHOR...

  • Page 19: Offshore Ocean Liferaft: Top View (Reflective Position)

    COASTAL CRUISER OFFSHORE OCEAN 2.1.5 OFFSHORE OCEAN LIFERAFT: TOP VIEW (RETROREFLECTIVE POSITION) ITEM DESCRIPTION RETRO-REFLECTIVE STRIPS RAIN WATER COLLECTION EDGE BOARDING RAMP VENTILATION SLEEVE AERIAL SLEEVE KNIFE POCKET IDENTIFICATION RAFT POCKET EXTERNAL LIGHT EXTERNAL LIFELINE...

  • Page 20: Offshore Ocean Liferaft: Bottom View

    COASTAL CRUISER OFFSHORE OCEAN 2.1.6 OFFSHORE OCEAN LIFERAFT: BOTTOM VIEW ITEM DESCRIPTION WATER POCKET BOARDING RAMP RIGHTING SYSTEM RETRO-REFLECTIVE STRIPS CYLINDER TOWING...

  • Page 21: Coastal Cruiser Liferaft (6 Places)

    COASTAL CRUISER OFFSHORE OCEAN 2.2 COASTAL CRUISER LIFERAFT (6 PLACES) 2.2.1 COASTAL CRUISER LIFERAFT: FRONT VIEW ITEM DESCRIPTION EXTERNAL LIFELINE RIGHTING SYSTEM WATER POCKET...

  • Page 22: Coastal Cruiser Liferaft: Sectional View

    COASTAL CRUISER OFFSHORE OCEAN 2.2.2 COASTAL CRUISER LIFERAFT: SECTIONAL VIEW ITEM DESCRIPTION WATER POCKET BOARDING RAMP INFLATING VALVE INTERNAL LIFELINE...

  • Page 23: Coastal Cruiser Liferaft: Top View (Canopy Opened)

    COASTAL CRUISER OFFSHORE OCEAN 2.2.3 COASTAL CRUISER LIFERAFT: TOP VIEW (CANOPY OPENED) ITEM DESCRIPTION FLOATING ANCHOR CANOPY BORDER OPENED EMERGENCY PACK KNIFE POCKET RETRO-REFLECTIVE STRIPS...

  • Page 24: Coastal Cruiser Liferaft: Bottom View

    COASTAL CRUISER OFFSHORE OCEAN 2.2.4 COASTAL CRUISER LIFERAFT: BOTTOM VIEW ITEM DESCRIPTION RETRO-REFLECTIVE STRIPS CYLINDER RIGHTING SYSTEM WATER POCKET 2.10...

  • Page 25: Joining Of Buoyancy Tubes

    COASTAL CRUISER OFFSHORE OCEAN 2.3 JOINING OF BUOYANCY TUBES ITEM DESCRIPTION JOINING BY MEANS OF STUDS FLOOR BUOYANCY TUBES BAND CANOPY 4-8 P LIFERAFT JOIN BY LINE NOTE: FOR EACH TYPE OF LIFERAFT USE THREAD STOPPERS WHEN JOINING THE BUOYANCY TUBES 2.11...

  • Page 26: Bending The Buoyancy Tube

    COASTAL CRUISER OFFSHORE OCEAN 2.4 BENDING THE BUOYANCY TUBE 6 and 8 P LIFERAFTS 2.5 BENDING THE LIFERAFT SUPPORT ARCH 4-8P LIFERAFT 2.12...

  • Page 27: Cylindrical Boarding Ramp

    COASTAL CRUISER OFFSHORE OCEAN 2.6 CYLINDRICAL BOARDING RAMP ITEM DESCRIPTION NON-RETURN VALVE JOINING TO LOWER BUOYANCY TUBE BY MEANS OF STUDS UPPER BUOYANCY TUBE JOINING TO UPPER BUOYANCY TUBE BY MEANS OF ROPES INFLATION VALVE 2.13...

  • Page 29: Servicing

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3. SERVICING 3.1 PRELIMINARY INSPECTION 3.1.1 RECEIVING AND CHECKING THE ACCOMPANYING DOCUMENTS Servicing of the raft, obligatory by law, shall be carried out normally and at owner’s expense and it will have to be marked on the obligatory documents that accompany it and that must follow the raft for its entire life. So, first of all check that the raft is accompanied by the prescribed documents;...

  • Page 30: Disabling The Cylinder

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.1.3 DISABLING THE CYLINDER As soon as you open the rafts’ container proceed to the inactivation of the cylinder to avoid it to accidentally operate. For this operation you have to take the operative head off the valve as follows: Disconnect inflation tubes from the cylinder and close the openings with the caps (cod.

  • Page 31: Inflatable Part

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.2 INFLATABLE PART 3.2.1 CONTROL OF THE INFLATABLE PARTS The present Technical Update indicates the procedure of testing for pneumatic part which the liferafts have to be subjected. Pressure Relief valves Image Valve model Pt.

  • Page 32: Preparation Ofd The Liferaft

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.2.3 PREPARATION OF THE LIFERAFT a) Lay the deflated pneumatic part on the working table. b) Screw on the valve of the buoyancy tube, the device for pressure check (part.1). Open the obturator screwing part 2. c) Connect the manometer to the edge of the pressure check device.

  • Page 33: Overpressure Strength Test - Pneumatic Structure

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL Inflation valve Tighten the valve by means of dynamometric spanner and specific tool, at a coupling torque of 25 Nm. WARNING: THE VALVE BODY AND THE GASKET MUST BE WELL ALIGNED AND CENTRED TO THE HOLE ON THE BUOYANCY TUBE. IF NOT SO, LIGHTLY UNSCREW THE VALVE BODY AND REPOSITION THE ENSEMBLE CORRECTLY.

  • Page 34: Table Of Servicings

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.2.8 TABLE OF SERVICINGS Model Coastal Cruiser Offshore Ocean Offshore Ocean Xtreme Service Interval 1 year 1 year 3 years YEAR WP+IFT WP+CT WP+CT WP+IFT+CT OP+IFT OP+CT OP+CT WP+IFT+CT WP+CT WP+CT WP+IFT OP+IFT+CT OP+CT OP+CT WP+IFT WP+IFT+CT...

  • Page 35: Inflation System

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.3 INFLATION SYSTEM 3.3.1 CONSTRUCTION DESIGN Not present on Coastal Cruiser rafts Coastal Cruiser Offshore Ocean ITEM DESCRIPTION OPERATING HEAD (1 buoyancy tube) CYLINDER (1 buoyancy tube) JOINING PIPES (on buoyancy tubes only) CANOPY SUPPORT ARCH NON-RETURN VALVE INFLATING VALVE (2 buoyancy tubes +1 ramp + 1 canopy support arch) NON-RETURN VALVE (buoyancy tubes )

  • Page 36: Non-Return Valve

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.3.2 NON-RETURN VALVE Tightening torque 25Nm 3.3.2.1 CONSTRUCTION DESIGN 3.3.2.2 INSPECTIONS AND SERVICING The servicing and the inspections to be carried out are: • Tightness of fastenings to buoyancy tube; • Valve tightness. 3.3.2.2.1 Tightness of fastenings to buoyancy tubes Check valve tightness at fastenings by spraying soaped water in the area.

  • Page 37: Valve Tightness

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL In case of leaking, first check for correct value of valve torque (25 Nm). If this is not the cause, disassemble the valve (see procedure for stopper replacement) and check that the material does not show any wrinkling. Should this be the case, stretch the fabric well and reassemble the valve correctly.
  • Page 38 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.3.2.3.2 Replacing the stopper If leaking is due to construction defects of the stopper, the stopper should be replaced. With inflated liferaft, follow the procedure given below: 1. Hit with determination the head of the service pipe connecting piece to eliminate any adhesion to the gaskets;...
  • Page 39 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3. Tighten the connecting piece for the service pipe. WARNING: THE THREAD OF THE CONNECTING PIECE IS COUNTER CLOCKWISE. MAKE SURE THAT THE VALVE INNER PROTECTION DOES NOT COIL THUS HAMPERING THE PROPER FLOW OF THE DEFLATION GAS. IF NECESSARY, SEND THE LIFERAFT TO THE MANUFACTURER’S.

  • Page 40: Inflation-Deflation-Valve

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.3.3 INFLATION-DEFLATION VALVE 3.3.3.1 CONSTRUCTION DESIGN GASKET SHUTTER (CORE) VALVE BODY SNARE LOCKING NUT 3.3.3.2 INSPECTIONS AND SERVICING The Servicing and inspections to be carried out on this type of valve are • Tightness of fastening points to buoyancy tube; •...
  • Page 41 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL PLUG RING STOPPER BODY MEMBRANE In case of leaking, first check the correct value of the valve torque and, if necessary, tighten the valve with a dynamometric key calibrated at 25 Nm. If leaking is not due to bad tightening of the valve, disassemble the valve and check that the material does not show any wrinkling and/or that the plug holder is not damaged.

  • Page 42: Inspecting The Valve

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL PLUG RING STOPPER MEMBRANE BODY 3.3.3.2.3 Inspecting the valve Check the presence and integrity of the gasket inside the plug. Besides, check that, once plugged, the valve is tight by pouring soaped water on the valve plug in correspondence to the gasket. 3.3.3.3 REPAIRS The inflation valves may need the following repairs: •...

  • Page 43: Plug Gasket Replacement

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL PLUG GASKET STOPPER O.R. MEMBRANE BODY 3.3.3.3.2 Plug gasket replacement Proceed as follows: • Untighten the plug; • Remove and replace the gasket making sure that is placed in its seat properly; • Tighten the plug again. PLUG GASKET HOLDER...

  • Page 44: Stopper Replacement

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.3.3.3.3 Stopper replacement Proceed as follows: 1. Unplug the valve; 2. Untighten and remove the old stopper; 3. Insert and tighten the new stopper; 4. Plug the valve. PLUG RING STOPPER O.R. MEMBRANE BODY 3.3.3.3.4 Valve replacement Proceed as follows: 1.

  • Page 45: Pressure Relief Valve

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.3.4 PRESSURE RELIEF VALVE PLUG RING LOCKING RING VALVE BODY HOLDER 3.3.4.1 INSPECTIONS AND TESTS The inspections and tests to be carried out on this type of valve are: • Tightness at fastening points to buoyancy tube; •...

  • Page 46: Repairs

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL If leaking is not due to bad tightening of the valve, disassemble the valve and check that the material inside does not show any wrinkling and/or that the plug holder is not damaged. Should this be the case, stretch the fabric well and/or replace the holder, then tighten the valve body properly.

  • Page 47: Canopy Support Post

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.3.5 NON-RETURN VALVE FOR BOARDING RAMPS AND FOR CANOPY SUPPORT POST. 3.3.5.1 CONSTRUCTION DESIGN 3.3.5.1.1 Boarding ramp non-return valve ITEM DESCRIPTION CALIBRATING RING FASTENING RING VALVE BODY STEEL SPRING AISI 304 MEMBRANE MEMBRANE INSERT 3.19...

  • Page 48: Non Return Valve For Assembling Tent Support

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.3.5.1.2 Non return valve for assembling tent support DETAIL DESCRIPTION VALVE BODY THREADED FERRULE SIMPLE FERRULE AISI 304 STEEL SPRING NYLON PIN SEAL 3.20...
  • Page 49 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.3.6 INFLATION TUBES AND JOINTS With regard to their reconditioning, their assembly, lock up and insertion of protections see par. 4.1. “STRAIGHT” JOINT MODEL LENGTH QUANTITY POSITION 6P Coastal Cruiser 550 mm Bottle - Tubing 4-6-8P Offshore Ocean SEALS ON “STRAIGHT”...

  • Page 50: Operating Heads, Valves, Cylinders

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.4 OPERATIVE HEADS, VALVES, CYLINDERS OPERATIVE HEAD AND VTE/99 VALVE WITH “STRAIGHT” JOINTS PACKINGS-OR 2037 PROTECTION TYPE “A” 3.4.1 INSPECTING THE OPERATIVE HEAD FOR VTE/99 VALVE To carry out the checks and reconditioning listed below you need, besides normal workshop tools, also special devices for rearming the O.H.
  • Page 51 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL CONTROL CABLE OT 58 crude brass and Stainless steel WATER TIGHT CAP Rubber SPRING CAP OT 58 crude brass (chromed particular) SPRING AISI 302 Stainless steel for springs (Ø thread 2.5 mm – Ø ext. 13 mm – L =26.5-7 coils) SPHERES Ø...
  • Page 52 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL Take the tool off the O.H., replace the protection cap if damaged, insert the cap until the beginning of the hexagonal part. The sphere must be positioned about in the middle of the cap’s cylindrical terminal. Fix the cap to the valve body with tape.
  • Page 53 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL NOTE: ALL THE PARTICULARS CAN BE REPLACED, BUT NOT THE O.H. BODY AND THE SLIDING SHAFT; IF ONE OF THE TWO SHOULD BE DAMAGED YOU MUST REPLACE THE ENTIRE O.H. 11. Take the tool off the O.H., replace the protection cap if it’s damaged, insert the cap making it slide until the beginning of the hexagonal part.

  • Page 54: Inspecting The Vte/99 Valve

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.4.2 INSPECTING THE VTE/99 VALVE The VTE/99 valve is checked to determine if the valves are capable of ensuring perfect seal of gas. The operations you can carry out are the complete replacement of the valve and complete replacement of the obturator group.

  • Page 55: Inspecting And Testing The Cylinder

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.4.3 INSPECTING AND TESTING THE CYLINDER The first test to carry out is for the weight indicated on the label on the cylinder. A tolerance of 55 g is allowed. DATE ………………………………… TARE………………………….KG REFILL CO …………..……...

  • Page 56: Revere Raft Cylinder Capacity

    Sphere Adhesive tape 3.4.4.1 REVERE RAFT CYLINDER CAPACITY Below you can find a chart with the relative quantity of gas for the various models of rafts. Quantity of CO Quantity of N...

  • Page 57: Liferaft Standard Equipment

    The operations are the following: Revere Offshore Ocean (Offshore Ocean Xtreme) 1) Check the integrity, and in case repair, the tent and the ventilation manifolds. Also check the preservation of the lanyard and floating knife in the tent’s pocket (or in the internal lifeline for the Coastal Cruiser rafts.
  • Page 58 800 mm EXCEPT FOR THE STRIPES THAT FORM THE CROSSES (ON THE TENT AND ON THE BOTTOM) Below is a widening for different kinds of rectangular base rafts. REVERE OFFSHORE OCEAN 8P LIFERAFT POSITION OF THE REFLECTING MATERIAL BANDS ON THE TENT POSITION OF THE REFLECTING MATERIAL BANDS ON THE BOTTOM 3.30...
  • Page 59 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL REVERE OFFSHORE OCEAN 6P LIFERAFT POSITION OF THE REFLECTING MATERIAL BANDS ON THE TENT POSITION OF THE REFLECTING MATERIAL BANDS ON THE BOTTOM 3.31...
  • Page 60 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL REVERE OFFSHORE OCEAN 4P LIFERAFT POSITION OF THE REFLECTING MATERIAL BANDS ON THE TENT POSITION OF THE REFLECTING MATERIAL BANDS ON THE BOTTOM 3.32...
  • Page 61 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL REVERE COASTAL CRUISER 6P LIFERAFT POSITION OF THE REFLECTING MATERIAL BANDS ON THE TENT POSITION OF THE REFLECTING MATERIAL BANDS ON THE BOTTOM 3.33...

  • Page 62: Equipment

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL Check the preservation conditions, and replace the detective parts if necessary, of the lines that form the manual capsizing system of non self-straightening rafts. Check the preservation conditions of the bottom, inflatable or aluminized, and of the pull rod anchoring gunwales in lowering ones.

  • Page 63: Equipment Pack

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.6.3. EQUIPMENT PACK Equipment Quantity COASTAL CRUISER OFFSHORE OCEAN (XTREME) (XTREME) Inflator + inflator tube Bailer Instruction handbook Sea anchor Paddles Cyalume stick Fishing kit Repairing kit Parachute rockets Red hand flares equipment bag (PVC or PET) Sea-sickness tablets 6 tablets x P 6 tablets x P...

  • Page 64: Packing Procedures With Welding Jag

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL Later liferafts production may have the equipment bag made of transparent plastic (PET) which is supplied also as spare part (EV Code 55-52500028). Img 1.1 – Sample of equipment bag closed by welding In this case the packing procedure differs only for the closure system, described as follows: 3.6.3.1 Packing procedure with welding jag - After putting the equipment into the bag, weld the extremity leaving around 7-8cm from the top (img.1.2).
  • Page 65 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL - ensure the folded edge with adhesive tape around the bag. Leave a free edge on the tape so to facilitate the removing by the survivor; - position the equipment bag and fix to the internal side of the liferaft with the cord of the bag. Img 2.1 –...

  • Page 66: Repairs

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL Img. 2.7 – Equipment bag sealed by tape 3.7 REPAIRS 3.7.1 GENERAL Repairing means mending the damage by means of fabric patches. The patch fabric must be the same as the fabric of the item to be repaired. There may also be repairs of items such as studs. 3.7.1.1 GLUE The glue to be used for repairing must be of the EV/C2 type.

  • Page 67: Preparing The Surfaces

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.7.2 PREPARING THE SURFACES The surfaces must be degreased with MEK: Methyl-Ethyl-Ketone. Cleaning and degreasing should be thorough. The whole area for repairing should be cleaned and degreased as well as the edges of the torn part. 3.7.3 APPLYING THE GLUE With a brush, apply the glue to the surfaces to be joined in thin and even layers.

  • Page 68: Repairing Torn Areas With Patches

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.7.4.1 REPAIRING TORN AREAS WITH PATCHES Patches should stretch for at least 40 mm beyond the perimeter of the damaged part. For instance, if the hole is 40 mm, the patch should have a diameter of at least 120 mm; if a straight tear is 100 mm long, the patch should be at least 180 x 80 mm.

  • Page 69: Limitations To Repairing

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.7.4.1.2 Limitations to repairing It is allowed to repair the inflatable parts with patches up to a percentual surface of 25% of the total surface of the panel. In any case, for each buoyancy chamber, when the buoyancy chamber consists of several panels (see buoyancy tubes of decagonal liferafts), there should not be more than fifteen patches.

  • Page 70: Other Repairs

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3.7.4.3 OTHER REPAIRS The other repairs that may be carried out without sending the liferaft to the Manufacturer are mainly repairs required by the out-of-roundness of the holes of the seats for the inflation, relief and non return valves, or minor repairs of the containers.

  • Page 71: Packing

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 4. PACKING 4.1 PRELIMINARY OPERATIONS After finishing all the checking operations proceed as follows: 1) Disinflate the raft. 2) Make sure that all the valves are tightened with a torque of 25 Nm. 3) Assemble protections and joint tubes to the operative head: all the rafts are equipped with protections in expanded polyethylene positioned in correspondence of the fixing bolts, of the non return valves of the raft’s tubing and of the cylinder valve as indicated in the attached plans.
  • Page 72 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL PACKING-OR 2037 PROTECTION TYPE “A” PLAN STEP 1 PROTECTION TYPE “A” PLAN STEPS 2-3 PACKING-OR 2037...

  • Page 73: Packing

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 4.2 PACKING 4.2.1 PREPARING THE CONTAINERS / VALISES Revere Container OPERATION CABLE EXIT Revere Valise Check the conditions of the container; replace the container in presence of wrecks or damages. Also check for the perfect preservation conditions of the seal. Replace it if necessary.
  • Page 74 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL SUMMARIZING CHART FOR REVERE RAFT CONTAINERS REF. MODEL A (cm) B (cm) H (cm) Fastening Upper shell Lower shell Offshore Ocean 4P- 51.5 55-99991171 55-99991172 Hinges Offshore Ocean 6P- 51.5 55-99991171 55-99991174 Hinges Offshore Ocean 8P- 51.5...
  • Page 75 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL SUMMARIZING CHART FOR REVERE XTREME RAFT CONTAINERS MODEL A (cm) B (cm) H (cm) Type REF. Fastening Offshore Ocean 4P-C VTRF03/04 55-99991563 Hinges Offshore Ocean 6P-C VTRF03/04 55-99991563 Hinges Offshore Ocean 8P-C VTRF03/02 55-99991561...

  • Page 76: Preparing The Liferaft

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 4.2.2 PREPARING THE LIFERAFT Fix the equipment pack to the internal stud in the middle of the support tubing. Fix the log book to the equipment pack after filling it out and insert it inside a polyethylene envelope made waterproof with tape.

  • Page 77: Illustrated Procedure

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 4.2.2.1 ILLUSTRATED PROCEDURE 1 – FIXING THE « IMMEDIATE ACTION » LEAFLET ON THE ARCH TUBE (on the internal lifeline for coastal cruiser) 2 – FIXING THE SEA-ANCHOR TO THE EXTERNAL LIFELINE...
  • Page 78 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 3 – FIXING THE RAIN-WATER COLLECTING GAUGE AND THE LABEL FOR THE OVERPRESSURE VALVES ON THE INTERNAL LIFELINE 4 – FIXING WITH PVC CORD THE BOARDING LADDER TO THE BORADING RAMP (for Offshore Ocean) 5 –...
  • Page 79 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 6 – FIXING THE LIGHT SYSTEM (for Offshore Ocean) 7 – INSERT PVC TUBE FOR THE ENDS OF THE LIGHT SYSTEM (for Offshore Ocean) 8 – POSITION OF THE INFLATION TUBES ON THE BUOYANCIES...

  • Page 80: Folding The Liferaft

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 9 – FIXING THE INFLATION TUBES TO THE OPERATIVE HEAD 10 – FIXING THE EQUIPMENT PACK 4.2.3 FOLDING THE LIFERAFT For folding the rafts follow the plans on the following pages. In paragraphs 4.2.4 and 4.2.5 you will find the detailed operations you must carry out for inserting the raft into the containers and for connecting the cylinder’s operation system.
  • Page 81 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 4.2.3.1 FOLDING THE COASTAL CRUISER 6P RAFT COASTAL CRUISER 6P CONTAINER 4.11...
  • Page 82 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL COASTAL CRUISER 6P VALISE 4.12...
  • Page 83 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 4.2.3.2 FOLDING THE OFFSHORE OCEAN 4P RAFT OFFSHORE OCEAN 4P CONTAINER 4.13...
  • Page 84 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL OFFSHORE OCEAN 4P VALISE 4.2.3.3 FOLDING THE OFFSHORE OCEAN 6P RAFT 4.14...
  • Page 85 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL OFFSHORE OCEAN 6P CONTAINER 4.15...
  • Page 86 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL OFFSHORE OCEAN 6P VALISE 4.16...
  • Page 87 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 4.2.3.4 FOLDING THE OFFSHORE OCEAN 8P RAFT OFFSHORE OCEAN 8P CONTAINER 4.17...
  • Page 88 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL OFFSHORE OCEAN 8P VALISE 4.18...
  • Page 89 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL 4.2.4 VACUUM-PACKING THE RAFT The connection between the activating wire and the activating line is obtained by means of a buckle as shown in the figure below. Activating line The activating line consists of two parts: - The first part is 1.50 mts long and ties the liferaft to the water-tight bag through an eyelet which is placed near the excursion sleeve (dark in colour).
  • Page 90 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL Before placing raft inside Insert an extremity of the towing line inside the edge of the vacuum bag Fix the towing line around the ring of the vacuum bag edge Register S/N, date of packing and n. of persons (6) on the vacuum bag 4.20...
  • Page 91 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL Position the vacuum bag on the lower shell of the container (or on a shape with proper dimensions). Verify hat the welding of the vacuum bag is positioned at half of the container Insert activation cable of the Operative Head inside the edge of the vacuum bag Apply the clamp for activating cable and fix the screw, taking attention to don’t...
  • Page 92 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL Insert an extremity of the painter line into the hole of the clamp 1 mt. ca Fix the painter line into the hole of the clamp Fix the extremity of the painter line to the “eye”...
  • Page 93 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL Put the painter line inside the container (or shape) With folded raft inside Place the liferaft inside the vacuum bag (see folding pictures on par. 4.2.3 for cylinder position) Close the vacuum bag by means of a welding jag 4.23...

  • Page 94: Placement In The Container / Valise

    COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL Suck up air from the vacuum bag and in the meantime press the liferaft so to make Breaking line the shape of its container. Position painter line near the activation cable. The breaking line of the vacuum bag has to be positioned around half of the cylinder body 4.2.5 PLACEMENT IN THE CONTAINER / VALISE...

  • Page 95: Container Labels

    4.2.6 CONTAINER LABELS After closing the container check the integrity and readability of labels and replace them if necessary. NOTE: REVERE VALISES DON’T HAVE ANY LABEL: THE PERSONALIZATION IS STAMPED ON THE SURFACE OF THE VALISE ITSELF. REVERE CONTAINER LABEL...
  • Page 96 COASTAL CRUISER OFFSHORE OCEAN SERVICE MANUAL ACTIVATING PAINTER LABEL 4.2.6.2 INSTRUCTIONS FOR FILLING IN LABELS INDICATE NUMBER OF PEOPLE INDICATE SERIAL NUMBER INDICATE NAME OF THE SHIP 4.26...
  • Page 97 COASTAL CRUISER LIFERAFT CONTAINERS, OFFSHORE OCEAN VALISES AND RELATED SERVICE MANUAL ACCESSORIES DRAWING Drawings are not to scale; dimensions, where given, are in mm DESCRIPTION AND USE OF THE ITEM UPPER SHELL CONTAINER 034-031T FOR LIFERAFT : 4-6P OFFSHORE OCEAN (CONTAINER) Unit : per piece 55-99991171 LOWER SHELL CONTAINER 034-031B...
  • Page 98 VALISES AND RELATED SERVICE MANUAL ACCESSORIES DRAWING Drawings are not to scale; dimensions, where given, are in mm DESCRIPTION AND USE OF THE ITEM CONTAINER FOR COASTAL CRUISER 6P RAFT Unit : per piece 55-99991023 FIBREGLASS CONTAINER 74X42X29 VTRF03/01 FOR LIFERAFT :...
  • Page 99 SERVICE MANUAL ACCESSORIES DRAWING Drawings are not to scale; dimensions, where given, are in mm DESCRIPTION AND USE OF THE ITEM VALISE REVERE OFFSHORE OCEAN 4P FOR LIFERAFT : 4P OFFSHORE OCEAN Unit : per piece 55-9R45538001 VALISE REVERE OFFSHORE OCEAN 6P...

  • Page 100: Liferaft Containers, Valises And Related Accessories

    SERVICE MANUAL ACCESSORIES DRAWING Drawings are not to scale; dimensions, where given, are in mm DESCRIPTION AND USE OF THE ITEM VALISE REVERE COASTAL CRUISER 6P Unit : per piece 55-9R45537001 VALISE OFFSHORE OCEAN XTREME 4P Unit : per piece...
  • Page 101 COASTAL CRUISER LIFERAFT CONTAINERS, OFFSHORE OCEAN VALISES AND RELATED SERVICE MANUAL ACCESSORIES DRAWING Drawings are not to scale; dimensions, where given, are in mm DESCRIPTION AND USE OF THE ITEM FASTENING BELT H 12mm FOR LIFERAFT : 4-8P OFFSHORE OCEAN (CONTAINER) 6P COASTAL CRUISER (CONTAINER) Unit : per km 55-52400185-1...
  • Page 102 COASTAL CRUISER LIFERAFT CONTAINERS, OFFSHORE OCEAN VALISES AND RELATED SERVICE MANUAL ACCESSORIES DRAWING Drawings are not to scale; dimensions, where given, are in mm DESCRIPTION AND USE OF THE ITEM COASTAL CRUISER CONTAINER LABEL Unit : per piece 55-15310686 OFFSHORE OCEAN CONTAINER LABEL Unit : per piece 55-15310697 COASTAL CRUISER XTREME CONTAINER LABEL...
  • Page 103 COASTAL CRUISER LIFERAFT CONTAINERS, OFFSHORE OCEAN VALISES AND RELATED SERVICE MANUAL ACCESSORIES DRAWING Drawings are not to scale; dimensions, where given, are in mm DESCRIPTION AND USE OF THE ITEM ACTIVATING PAINTER LABEL Unit : per piece 55-15110129...
  • Page 104 5.2 FIXED PARTS, REPAIR COASTAL CRUISER FABRICS, CEMENT, OFFSHORE OCEAN CORDS SERVICE MANUAL AND ACCESSORIES DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm PAINTER LINE FOR: OFFSHORE OCEAN RAFTS Unit : per piece 55-10399983 PAINTER LINE FOR:...
  • Page 105 5.2 FIXED PARTS, REPAIR COASTAL CRUISER FABRICS, CEMENT, OFFSHORE OCEAN CORDS SERVICE MANUAL AND ACCESSORIES DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm NYLON 420/420 ORANGE FABRIC FOR: OFFSHORE OCEAN CANOPY 4-8P Unit: per sqm 55-50202033 NYLON 210 ORANGE FABRIC...
  • Page 106 5.2 FIXED PARTS, REPAIR COASTAL CRUISER FABRICS, CEMENT, OFFSHORE OCEAN CORDS SERVICE MANUAL AND ACCESSORIES DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm POLYETILENE RING D. 18mm FOR: PROTECTION FOR CANOPY HOOK BUTTON Unit : per ml 55-52509018 BLACK ELASTIC CORD D.
  • Page 107 5.2 FIXED PARTS, REPAIR COASTAL CRUISER FABRICS, CEMENT, OFFSHORE OCEAN CORDS SERVICE MANUAL AND ACCESSORIES DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm RAINWATER CATCHMENT BAG AND TUBE FOR: ALL TYPES OF LIFERAFTS Unit : per piece 55-10399202 Unit : per Kg...

  • Page 108: Fixed Parts, Repair Fabrics, Cement, Cords

    5.2 FIXED PARTS, REPAIR COASTAL CRUISER FABRICS, CEMENT, OFFSHORE OCEAN CORDS SERVICE MANUAL AND ACCESSORIES DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm INTERNAL BOARDING LADDER FOR: OFFSHORE OCEAN LIFERAFTS 55-10309163 Unit : per piece POLYPROPILENE PLAIT H25 mm YELLOW...
  • Page 109 5.2 FIXED PARTS, REPAIR COASTAL CRUISER FABRICS, CEMENT, OFFSHORE OCEAN CORDS SERVICE MANUAL AND ACCESSORIES DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm WHITE-COLOURED POLYESTER PLAIT DIA.5 mm (0.020kg/m) FOR: SEA ANCHOR 55-52400114 Unit : per kg...
  • Page 110 5.2 FIXED PARTS, REPAIR COASTAL CRUISER FABRICS, CEMENT, OFFSHORE OCEAN CORDS SERVICE MANUAL AND ACCESSORIES DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm NYLON HEXAGONAL HEAD SCREW M10x60 FOR: JOINING ARCHES ; FIXING OF THE BOARDING PLATFORM Unit : 100 pieces 55-99173123 NYLON HEXAGONAL HEAD SCREW M10x40...
  • Page 111 5.2 FIXED PARTS, REPAIR COASTAL CRUISER FABRICS, CEMENT, OFFSHORE OCEAN CORDS SERVICE MANUAL AND ACCESSORIES DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm COMPLETE LIGHT KIT “LED 3” Unit: per kit 55-99990277 5.15...
  • Page 112 COASTAL CRUISER 5.3 INFLATION OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm COMPLETE VALVE “VTE/99” 2 WAYS 55-10398025 Unit : per piece AIRTIGHT DEVICE FOR VALVE VTE/99 – BLUE GUMMED 55-99201251 Unit : per piece...
  • Page 113 COASTAL CRUISER 5.3 INFLATION OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm Unit : per piece 55-10399594 WATERTHIGHT CAP FOR CONTROL CABLE “VTE/99” Unit : per piece 55-99182047 SPRING HOLDER NUT FOR OPERATING HEAD “VTE/99”...
  • Page 114 COASTAL CRUISER 5.3 INFLATION OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm OR 2087 GASKET FOR VALVE “VTE/99” Unit : 100 pieces 55-99182145 HOLLOW SCREW FOR STRAIGHT CONNECTING PIECES 4 MM Unit : per piece 55-99201202...
  • Page 115 COASTAL CRUISER 5.3 INFLATION OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm OR 2037 GASKET Unit : 100 pieces 55-99182508 INTERNAL SUCTION PIPE FOR CYLINDER L 247-267 mm Unit : per piece 55-99201035...
  • Page 116 COASTAL CRUISER 5.3 INFLATION OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm NON-RETURN VALVE FOR STRAIGHT CONNECTING PIECES 55-99201207 Unit : per piece RUBBER HOSE D=1/4"; L= 550 mm. Unit : per piece 55-99184002 SUPERNOVA INFLATION VALVE...
  • Page 117 COASTAL CRUISER 5.3 INFLATION OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm RUBBER GASKET FOR SUPERNOVA INFLATION VALVE Unit : 100 pieces 55-10399292 STANDARD PRESSURE RELIEF VALVE; COMPLETE Unit : per piece 55-10399739...
  • Page 118 COASTAL CRUISER 5.3 INFLATION OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm O-RING GASKET OR 2037 FOR: STRAIGHT HOSES Unit : 100 pieces 55-99182508 “A” PROTECTION FOR INFLATION HOSES Unit : per piece 55-10399943 CLAMP FOR VTE/99 OPERATIVE HEAD CABLE...

  • Page 119: Emergency Equipment

    COASTAL CRUISER 5.4 EMERGENCY OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm WATERPROOF TORCH “T3021” Unit : per piece 55-99990906 PARACHUTE ROCKET - RED 30-50672 Unit : per piece RED HAND FLARES 30-52900...
  • Page 120 COASTAL CRUISER 5.4 EMERGENCY OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm CYALUME STICK Unit : per piece 55-99990170 SOLAS APPROVED RINA SCOTCHLITE Unit : per ml 55-52300005 SOLAS APPROVED HELIOGRAPH 55-99990408...
  • Page 121 COASTAL CRUISER 5.4 EMERGENCY OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm FIRST AID KIT Unit : per piece 80-956 SEASICKNESS PILLS (2 PACK) Unit : per piece 81-60-0900 FISHING TACKLE 55-99930150...
  • Page 122 COASTAL CRUISER 5.4 EMERGENCY OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm DRINKING VESSEL 55-99179201 Unit : per piece MEDIUM LEAK STOPPER FOR REPAIRS Unit : per piece 55-99320012 BIG LEAK STOPPER FOR REPAIRS Unit : per piece...
  • Page 123 COASTAL CRUISER 5.4 EMERGENCY OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm LARGE PVC EQUIPMENT BAG FOR: OFFSHORE OCEAN EQUIPMENT Unit : per piece 55-10399302 SMALL PVC EQUIPMENT BAG FOR: COASTAL CRUISER EQUIPMENT...
  • Page 124 COASTAL CRUISER 5.4 EMERGENCY OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm SPONGE Unit : per piece 55-50300008 WOOD PADDLES (MOD. 90) Unit : per piece 55-89310240 BAG 350X500 (SEA-SICKNESS) Unit : per piece...
  • Page 125 COASTAL CRUISER 5.4 EMERGENCY OFFSHORE OCEAN EQUIPMENT SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm IMMEDIATE ACTION TYVEK Unit : per piece 55-15100189 COASTAL CRUISER REGISTRATION CARD 55-15300236 Unit : per piece OFFSHORE OCEAN REGISTRATION CARD Unit : per piece...
  • Page 126 Drawings are not to scale; dimensions, where given, are in mm OFFSHORE OCAEN GUARANTEE REGISTRATION CARD Unit : per piece 55-15300173 REVERE XTREME GUARANTEE REGISTRATION CARD Unit : per piece 55-15300188 VACUUM BAG COMPLETE WITH REVERE CERTIFICATE AND NEXT INSPECTION STICKER Unit: per kit 50-YR3002 5.30...
  • Page 127 COASTAL CRUISER 5.5 SPECIAL TOOLS OFFSHORE OCEAN SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm SPANNER FOR INFLATION VALVE 55-99220486 Unit: per piece SPANNER FOR “TYPE STANDARD” PRESSURE RELIEF VALVE Unit: per piece 55-99220386...
  • Page 128 COASTAL CRUISER 5.5 SPECIAL TOOLS OFFSHORE OCEAN SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm • CONNECTION FOR LIFERAFT INFLATION THROUGH STRAIGHT HOSES Unit : per piece 55-99200504 •...
  • Page 129 COASTAL CRUISER 5.5 SPECIAL TOOLS OFFSHORE OCEAN SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm • CYLINDER RECHARGING DEVICE “VTE/99” Unit : per piece 55-99200035 • ALLEN SCREW NUT FOR VALVE “VTE/99” Unit : per piece 55-99990987 •...
  • Page 130 COASTAL CRUISER 5.5 SPECIAL TOOLS OFFSHORE OCEAN SERVICE MANUAL DRAWING DESCRIPTION AND USE OF THE ITEM Drawings are not to scale; dimensions, where given, are in mm FID 8mm Unit : per piece 55-99999860 FID 12mm Unit : per piece 55-99999861 5.34...

This manual is also suitable for:

Offshore ocean 4pOffshore ocean 6pOffshore ocean 8pOffshore ocean xtreme 4pOffshore ocean xtreme 6pOffshore ocean xtreme 8p

Table of Contents
