DEMO MANUAL DC2570A
QUICK START PROCEDURE

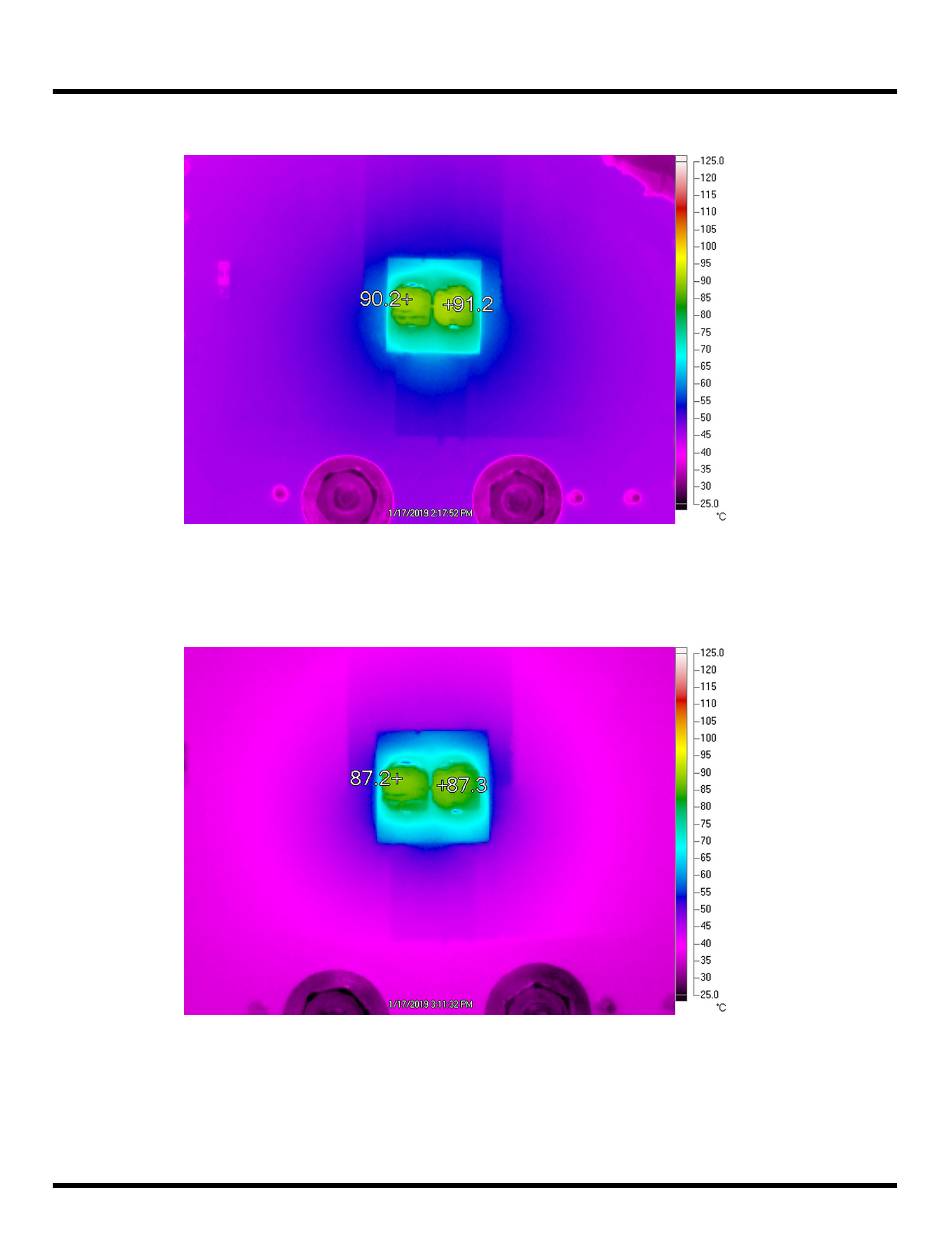

Figure 8. Thermal at V
 = 12V, V
 = 1.0V, I
 = 45A, T
 = 25°C, No Airflow
IN
OUT
OUT
A
Figure 9. Thermal at V
 = 12V, V
 = 1.0V, I
 = 50A, T
 = 25°C, 200LFM Airflow
IN
OUT
OUT
A
Rev. 0
6
