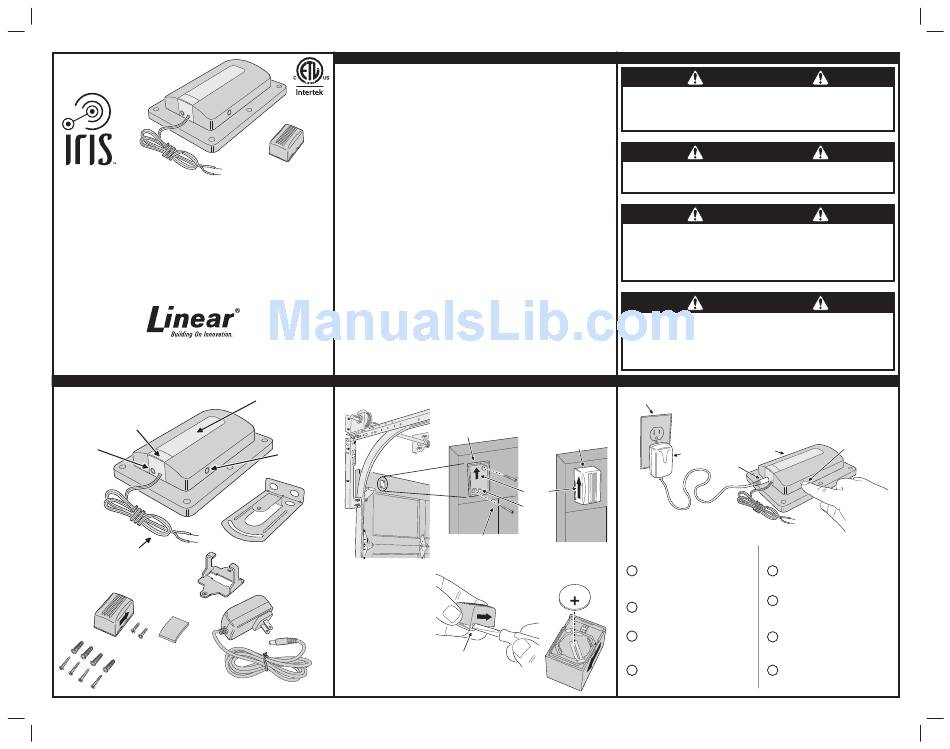

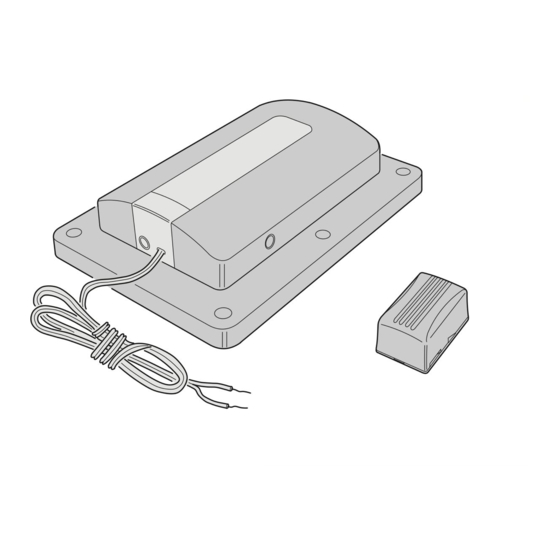

3. PRODUCT FEATURES
CONTROLLER
STATUS
INDICATOR
POWER
INPUT
JACK
CONTROLLER
CONNECTION
WIRES
POWER
SUPPLY
RETAINING
TILT
BRACKET
SENSOR
DOUBLE SIDED
MOUNTING TAPE,
SCREWS AND ANCHORS
INSTR,INSTL,GD00Z-1 - LINEAR P/N: 235686 X22 - INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 11.000" X 8.500" - SCALE: 1-1 - FOLDING: 2-FOLD ALTERNATE - SIDE 1 OF 2
1. PRODUCT DESCRIPTION
The Model GD00Z-1 is a garage door opener Remote Command Controller with
built-in Z-Wave ® interoperable two-way RF mesh networking technology designed for
use with Lowe's Iris ® hub. A garage door opener connected to the Controller can be
remotely activated using the Iris web interface or Iris mobile applications.
The GD00Z-1 Controller connects to the garage door opener's pushbutton wall
console terminals and communicates with the Iris hub using Z-Wave radio signals. A
wireless tilt sensor mounts on the garage door and reports the door's position to the
Controller. When the Controller receives a command from the Iris hub, it will open or
close the garage door.
Anytime the garage door opener is activated remotely by the Controller, a warning
indicator fl ashes and a beeper sounds for fi ve seconds before the door begins to
move.
If, due to an obstruction or other cause, the door does not completely open or close
when it is activated remotely, the Controller will pause for 30 seconds. After the delay,
a second remote activation can be attempted. If the door does not complete its motion
on the second attempt, the Controller will suspend operation until the door is operated
locally with the opener's pushbutton wall console.
The Controller is powered by a plug-in power supply. The Model TILT 345 tilt sensor
is powered by a 2032 lithium battery. If the tilt sensor battery is low, it will be reported
to the Iris hub by the Controller. A link button and status light are provided on the
Controller for adding or removing the device with the Iris hub.
Four screws and anchors are provided for mounting the Controller. An adjustable
controller mounting bracket with hardware is supplied for installing the unit onto the
door opener's hanging hardware. The wireless tilt sensor mounts with double sided
tape or the two screws supplied.
Z-Wave ® is a registered trademark of Sigma Designs Inc. and/or its subsidiaries.
4. TILT SENSOR INSTALLATION AND BATTERY
TO ACTIVATE THE TILT SENSOR, REMOVE THE BATTERY PROTECTION PULL STRIP
WARNING
LIGHT
LINK
BUTTON
ADJUSTABLE
MOUNTING
BRACKET
(OPTIONAL)
IRIS WILL NOTIFY YOU WHEN
POWER
THE BATTERY IS LOW,
SUPPLY
REPLACE THE BATTERY WITH
A TYPE CR2032 COIN CELL
TO OPEN THE CASE, TWIST
A SMALL SCREWDRIVER
IN CASE SLOT
PRINTER'S INSTRUCTIONS:
ARROWS ON PLATE
& SENSOR POINT UP
ATTACH MOUNTING PLATE
TO TOP PANEL OF THE DOOR
SNAP SENSOR ONTO
THE MOUNTING PLATE
"UP"
ARROWS
POST ON
BOTTOM
USE DOUBLE SIDED TAPE OR
THE TWO MOUNTING SCREWS SUPPLIED
(DRILL 1/16" PILOT HOLES IF REQUIRED)
PLUS SIDE UP !!!
INSERT THE
CR2032
BATTERY
INTO THE
TRANSMITTER
SLOT
2. SAFETY NOTES
WARNING
This operator system is equipped with an unattended
operation feature. This door could move unexpectedly.
NO ONE SHOULD CROSS THE PATH OF A MOVING DOOR!
WARNING
This system can be installed on sectional type (roll up) doors
only per (UL-325). DO NOT INSTALL ON ONE-PIECE DOORS!
WARNING
The Remote Command Controller must be mounted in
the garage, in sight of the garage door, where the visual
and audible movement warning indicators can be clearly
seen and heard.
WARNING
Do not install the Remote Command Controller on
garage door operators manufactured prior to 1993
(models without an operational safety beam entrapment
detection system).
5. PAIRING WITH IRIS
WALL
OUTLET
www.lowes.com/iris
CONTROLLER
POWER
SUPPLY
POWER
INPUT
JACK
TO PAIR WITH
TO REMOVE FROM
THE IRIS HUB
PARING THE CONTROLLER
REMOVING THE CONTROLLER
1
FROM THE IRIS WEB SITE, CLICK
1
FROM THE IRIS WEB SITE,
"DEVICES", THEN CLICK THE
CLICK "DEVICES"
"ADD DEVICES" BUTTON
ON THE GARAGE DOOR
2
2
SELECT GARAGE DOOR
CONTROLLER DEVICE CLICK
CONTROLLER FROM THE LIST
"MANAGE", THEN CLICK "REMOVE"
3
FOLLOW THE ON-SCREEN
FOLLOW THE ON-SCREEN
3
INSTRUCTIONS TO PAIR THE
INSTRUCTIONS TO UN-PAIR THE
CONTROLLER WITH THE HUB
CONTROLLER WITH THE HUB
4
WHEN INSTRUCTED, PRESS
4
WHEN INSTRUCTED, PRESS
THE LINK BUTTON ON THE
THE LINK BUTTON ON THE
CONTROLLER
CONTROLLER
LINK
BUTTON
THE IRIS HUB
