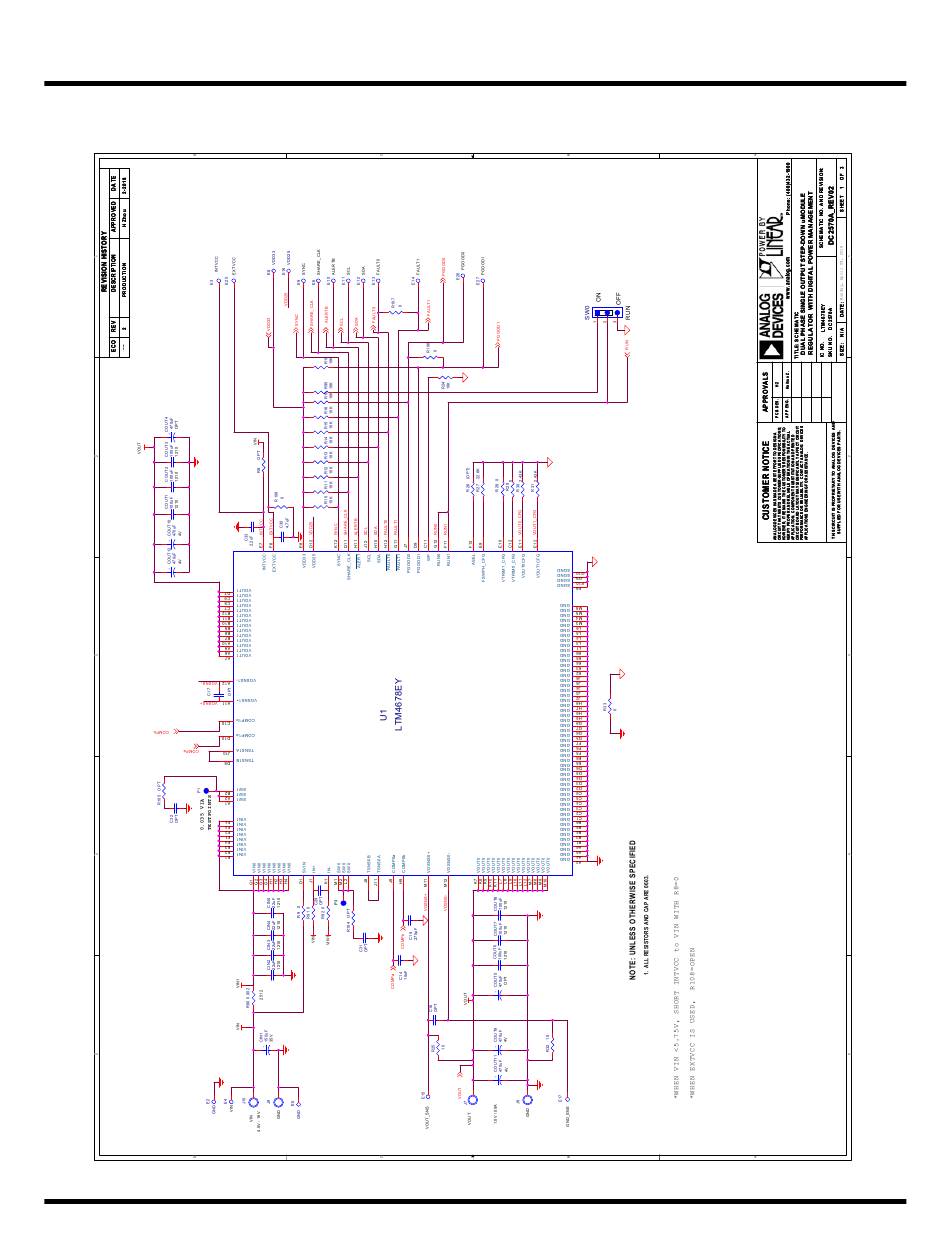

Schematic Diagram - Linear Analog Devices ADI Power DC2570A Demo Manual

Dual 25a or single 50a ymodule regulator with digital power system management,1x ltm4678, 50a
Hide thumbs

Advertisement

DEMO MANUAL DC2570A

SCHEMATIC DIAGRAM

Rev. 0
