INSTALLATION INSTRUCTIONS

5
1
C/L Flue
97
6

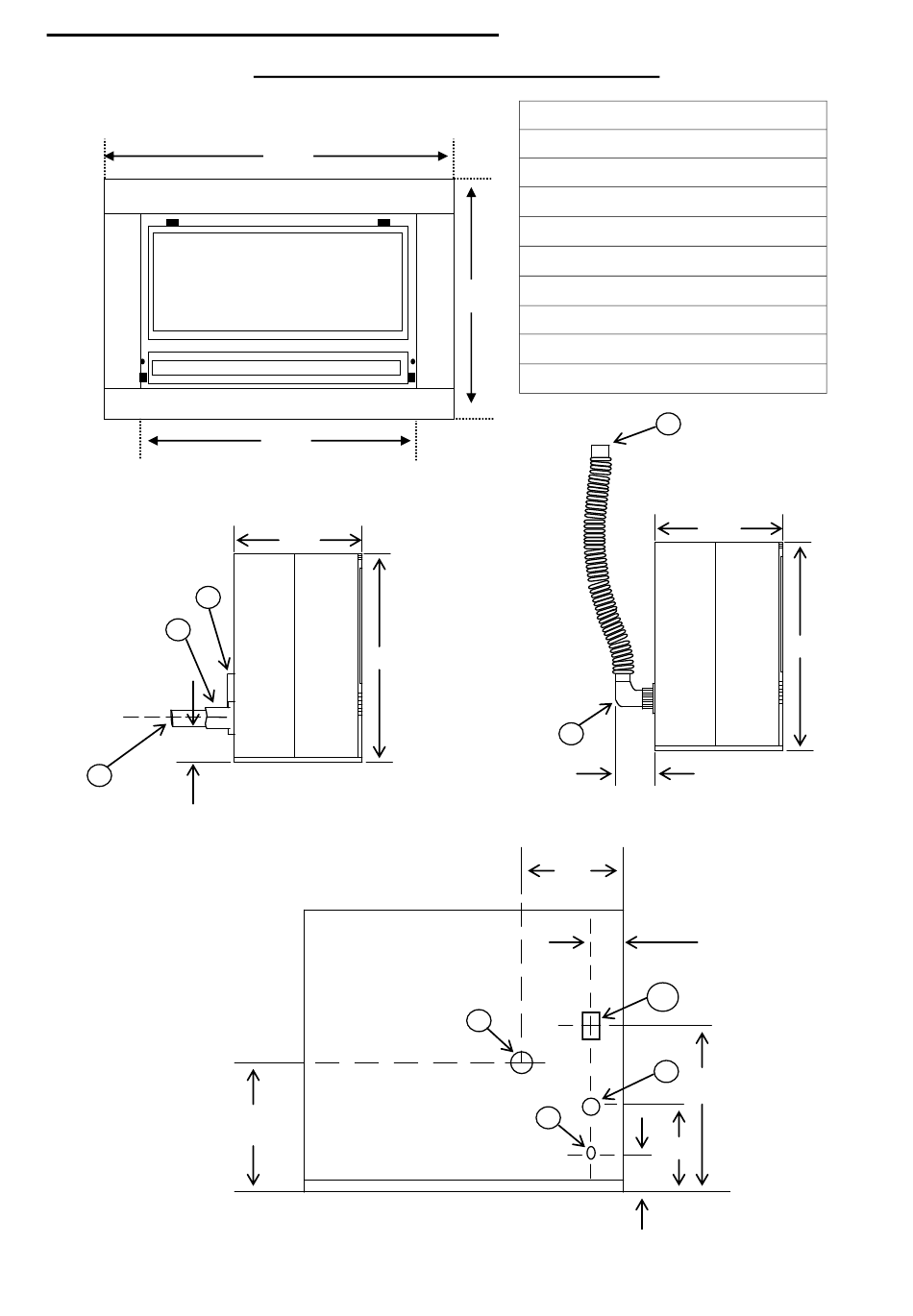

SPECIFICATIONS - MODEL NO. 720 G
949
649
430
630
97
1 Co-Axial Manifold Flue Starter 65mm
2 Electric Cord
3 1/2" BSP Gas Connection (Inside)
4 3 Sided Surround (885 x 742)
5 Air Inlet Cover Plate
6 PVC Exhaust Pipe 40mm
7 Flue Exit Point (centre line)
694
8 Single Flue Adaptor
9 Single Flexi Flue (suit 40mm pipe)
10 Air Inlet
8
150
157
23
7
2
5
9
430
630
10
3
189
103
63
