FLUEING OPTIONS INSTALLATION

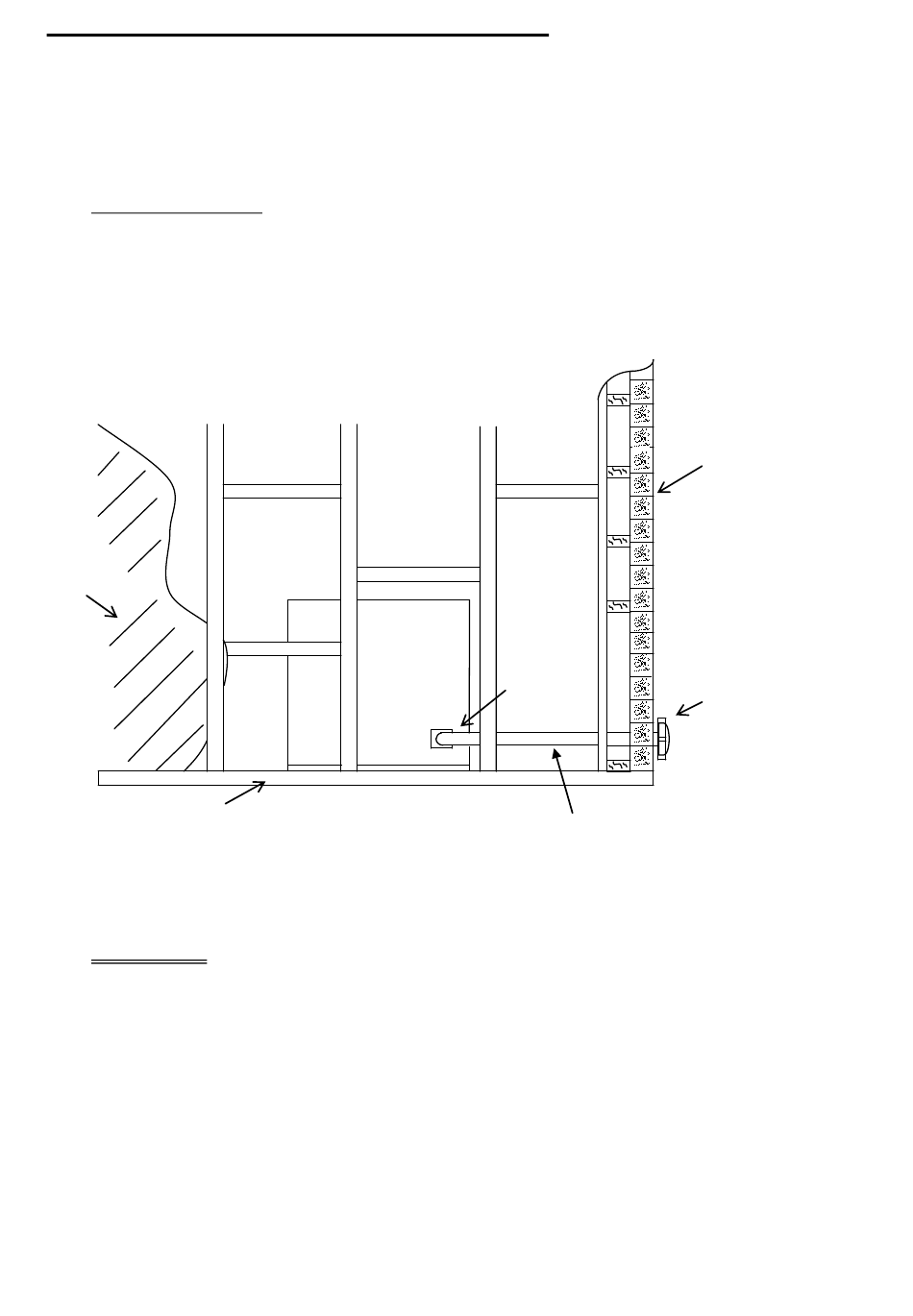

Internal to External Wall Installation using 40mm ø PVC Flue.
Side Wall Installation
(Horizontal Single Flue)
Internal Wall
Concrete Slab
CAUTION: DO NOT ALLOW WATER TRAPS TO FORM
Note: Total installation length in 40mm ø PVC pipe 5100mm
with 1 x 90º and 2 x 45º bends.
IN FLUE OR HEATER WILL CEASE TO OPERATE.
90º Elbow
40mm PVC Pipe
13 13
External Wall
75mm cowl to suit
40mm PVC flue
pipe.
