DEVICE DESCRIPTION

2.
3.
4.
5.
6
7.
10.

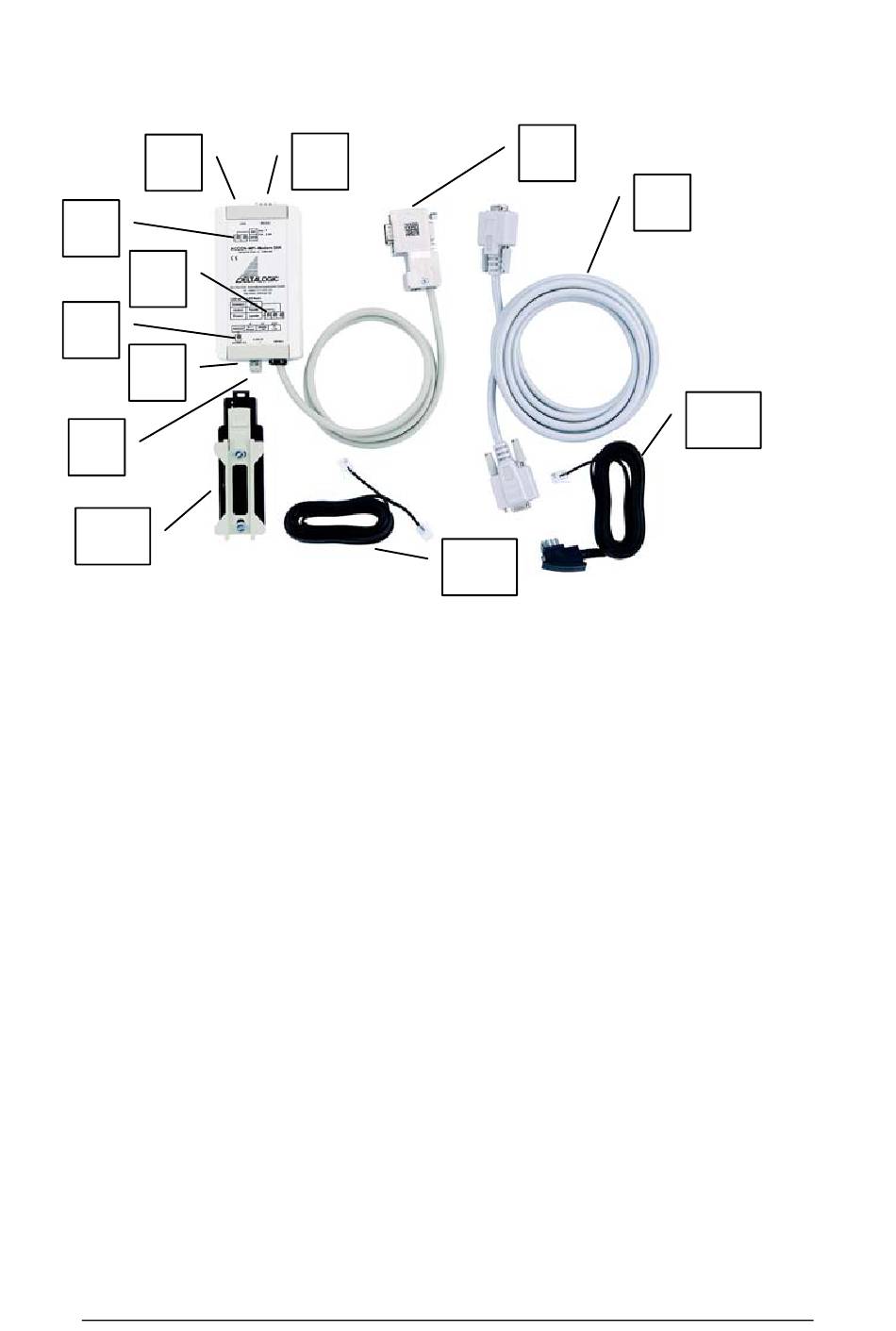

Figure 2: ACCON-MPI-Modem 56k
1) RS232 interface for the communication with the PC
2) RJ11 connection to connect the device with a TAE socket
3) Modem LEDs
4) Status LEDs
5) RS232 LED
6) Switch to change between the different operating modes (microswitch)
7) Power supply bushing for 24 VDC. Please keep the polarity in mind.
8) Bus plug with PG bushing, switchable terminator and a 1,2 m connection
line.
9) PC connection cable
10) Top hat rail holder
11) TAE connection cable
12) RJ11 connection cable
ACCON-MPI-Modem 56k
1.
12.
8.
9.
11.
7
