INSTALLATION MANUAL

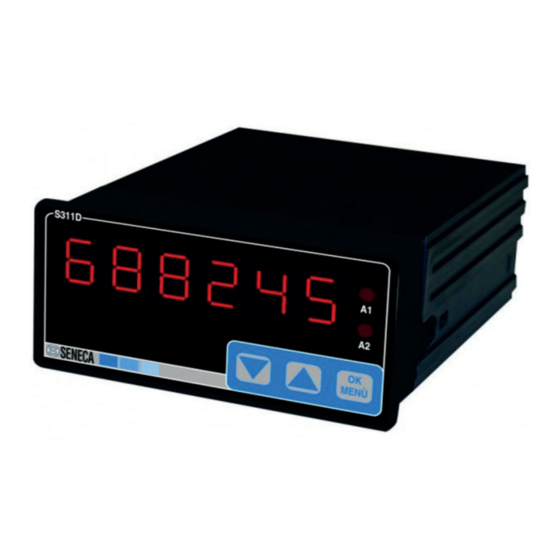

S311D-XX-L / S311D-XX-H Series
4, 6, 8, 11-digit display advanced digital
totalizers - indicators
EN
SENECA s.r.l.
Via Austria, 26 – 35127 – PADOVA – ITALY
Tel. +39.049.8705355 - 8705359 - Fax +39.049.8706287
For manuals in other languages and the configuration software, visit www.seneca.it/products/s311d
MI00150-8-EN
1/8
Advertisement
Table of Contents
Related Manuals for Seneca S311D L Series
Summary of Contents for Seneca S311D L Series
- Page 1 4, 6, 8, 11-digit display advanced digital totalizers - indicators SENECA s.r.l. Via Austria, 26 – 35127 – PADOVA – ITALY Tel. +39.049.8705355 - 8705359 - Fax +39.049.8706287 For manuals in other languages and the configuration software, visit www.seneca.it/products/s311d MI00150-8-EN...
- Page 2 WARNING: The full content of this manual must be read before any operation. The module must only be used by qualified electricians. Specific documentation is available at www.seneca.it/prodotti/s311d The module must be repaired and damaged parts replaced by the Manufacturer.
- Page 3 All the parameters of the instrument can be set via the Programming Menu or RS485 (via optional board). The alarm thresholds can also be set quickly via the specific Quick Alarm Menu. The dedicated Easy Setup software for programming/ configuring the module was also developed (see www.seneca.it). Retransmission mode:...
- Page 4 Alarms on frequency or totalizer measurement (optional board): Two alarms can be activated on the measurement of the frequency of the digital input signal or on the totalizer threshold values, each of which, if enabled, can be configured as follows: 1.
- Page 5 ELECTRICAL CONNECTIONS POWER SUPPLY S311D-XX-L S311D-XX-H 10 ÷ 40 Vdc 85 ÷ 265 Vac 19 ÷ 28 Vac 3.0 W 3.0 W DIGITAL INPUT REED NPN (2 WIRES) NPN 24 V (3 WIRES) PNP 24 V (3 WIRES) NAMUR VARIABLE RELUCTANCE 24 V INPUT TTL INPUT...
- Page 6 MENU PARAMETERS FREQUENCY MEASUREMENT LIMITS: TOTALIZER LIMITS DISPLAY DIGITS MIN. LIMIT MAX. LIMIT MIN. LIMIT MAX. LIMIT -1999 9999 9999 -199999 999999 999999 -19999999 99999999 99999999 11 (4+7) -1999 9999999 9999999 PARAMETERS TO SET FROM THE MENU: C. . n . F Parameter code Parameter name SETTING RANGE AND DESCRIPTION...
- Page 7 PARAMETERS TO SET FROM THE MENU: A. L . . . anda. L . 2 . . Parameters related to alarm 1: accessible from menu a. L . . . and identified by final index 1. Parameters related to alarm 2: accessible from menu A. L . . . and identified by final index 2. Parameter code Parameter name SETTING RANGE AND DESCRIPTION...
- Page 8 Product information sales@seneca.it This document is the property of SENECA srl. Copies and reproduction are prohibited unless authorised. The content of this document corresponds to the described products and technologies. Stated data may be modified or supplemented for technical and/or sales purposes.
