PRELIMINARY WARNINGS
The word WARNING preceded by the symbol
risk. The word ATTENTION preceded by the symbol
instrument or the connected equipment.
The warranty shall become null and void in the event of improper use or tampering with the module or devices
supplied by the manufacturer as necessary for its correct operation, and if the instructions contained in this
manual are not followed.
WARNING: The full content of this manual must be read before any operation. The module must only be used by
qualified electricians. Specific documentation is available using the QR-CODE shown on page 1.
The module must be repaired and damaged parts replaced by the Manufacturer. The product is sensitive to
electrostatic discharges. Take appropriate measures during any operation.
Electrical and electronic waste disposal (applicable in the European Union and other countries with recycling).
The symbol on the product or its packaging shows the product must be surrendered to a collection centre authorized
to recycle electrical and electronic waste.
SENECA s.r.l.; Via Austria, 26 – 35127 – PADOVA – ITALY; Tel. +39.049.8705359 - Fax +39.049.8706287
CONTACT INFORMATION
Technical support
This document is the property of SENECA srl. Copies and reproduction are prohibited unless authorised.
The content of this document corresponds to the described products and technologies.
Stated data may be modified or supplemented for technical and/or sales purposes.
MI00614-2-EN
INSTALLATION MANUAL
R203
DOCUMENTATION
supporto@seneca.it
INSTALLATION MANUAL
indicates conditions or actions that put the user's safety at
indicates conditions or actions that might damage the
R203
Product information
commerciale@seneca.it
1/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R203 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seneca R203

  • Page 1 The symbol on the product or its packaging shows the product must be surrendered to a collection centre authorized to recycle electrical and electronic waste. R203 DOCUMENTATION SENECA s.r.l.; Via Austria, 26 – 35127 – PADOVA – ITALY; Tel. +39.049.8705359 - Fax +39.049.8706287 CONTACT INFORMATION Technical support supporto@seneca.it Product information commerciale@seneca.it...
  • Page 2: Module Layout

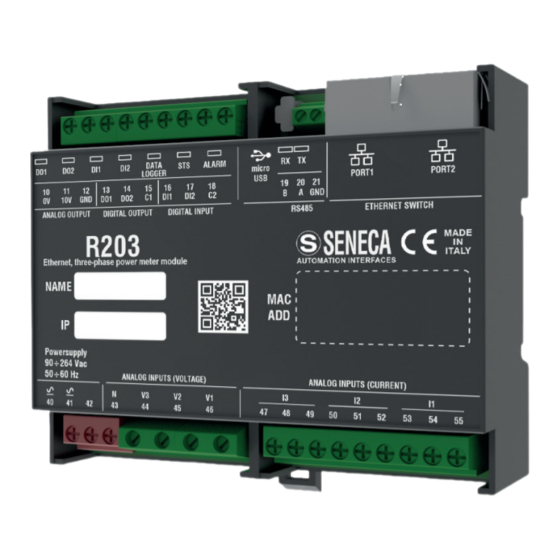

    MODULE LAYOUT 106.6 mm 32.2 mm Weight: 170 g; Enclosure: UL94-V0 self-extinguishing PC/ABS material, black. SIGNALS VIA LED ON FRONT PANEL STATUS LED meaning Output 01 activated Output 01 deactivated Output 02 activated Output 02 deactivated Input 01 activated Input 01 deactivated Input 02 activated Input 02 deactivated Data Logger function enabled...
  • Page 3: Technical Specifications

    DIN rail 35mm IEC EN60715, wall or panel with screws. CONNECTIONS Screw terminals 5 mm, 7.5 mm and 3.5 mm pitch (RS485), cable with section <2.5 mm Voltage: 90 ÷ 264Vac @ 50 ÷ 60Hz, max absorption: 2.5W / 4VA (only R203-2-H) POWER SUPPLY Voltage: 10 ÷...
  • Page 4: Dip Switch Settings

    CAUTION This is a Class A product. In a residential environment this equipment may cause radio interference. In this case, the user may have to take adequate countermeasures. ROGOWSKI SENSOR The Rogowski sensor is a ring-shaped device designed for measuring AC, impulsive or complex waveforms. For its correct use: - wrap the ring on the conductor so that the arrow symbol on the ring points in the same direction as the current in the conductor - make sure the connections are made correctly...
  • Page 5: Electrical Connections

    90 ÷ 264 Vac, 50 ÷ 60 Hz NOT CONNECTED It is advisable to insert a 1 A slow-blow fuse SUPPLY R203-2- L The power supply is connected to terminals 40 and 41. The supply voltage must be: 10 ÷ 30Vdc.
  • Page 6 ELECTRICAL CONNECTIONS CAUTION The installation of this appliance must only be carried out by qualified personnel. Check that the device plate data (measurement voltage, auxiliary power supply voltage, measurement current, frequency) match the actual data of the network to which the instrument is connected. In the wiring, strictly observe the insertion diagram;...
  • Page 7 THREE-PHASE: 3 wires L3 L2 L1 44 45 46 FACTORY IP ADDRESS (ONLY R203-2-H AND R203-2-L) The default module IP address is static: 192. 168. 90. 101 WEB SERVER (ONLY R203-2-H AND R203-2-L) To access the Web Server with the factory IP address above, use the following credentials: Username: admin;...
  • Page 8 ETHERNET CONNECTION RULES For the Ethernet cabling between the devices, the use of the shielded CAT5 or CAT5e cable is required. DAISY-CHAIN ETHERNET CONNECTION CAUTION IT IS NOT ALLOWED TO CREATE LOOPS WITH ETHERNET CABLES Using the daisy-chain connection it is not necessary to use switches to connect the devices. The following examples show the correct connections.
