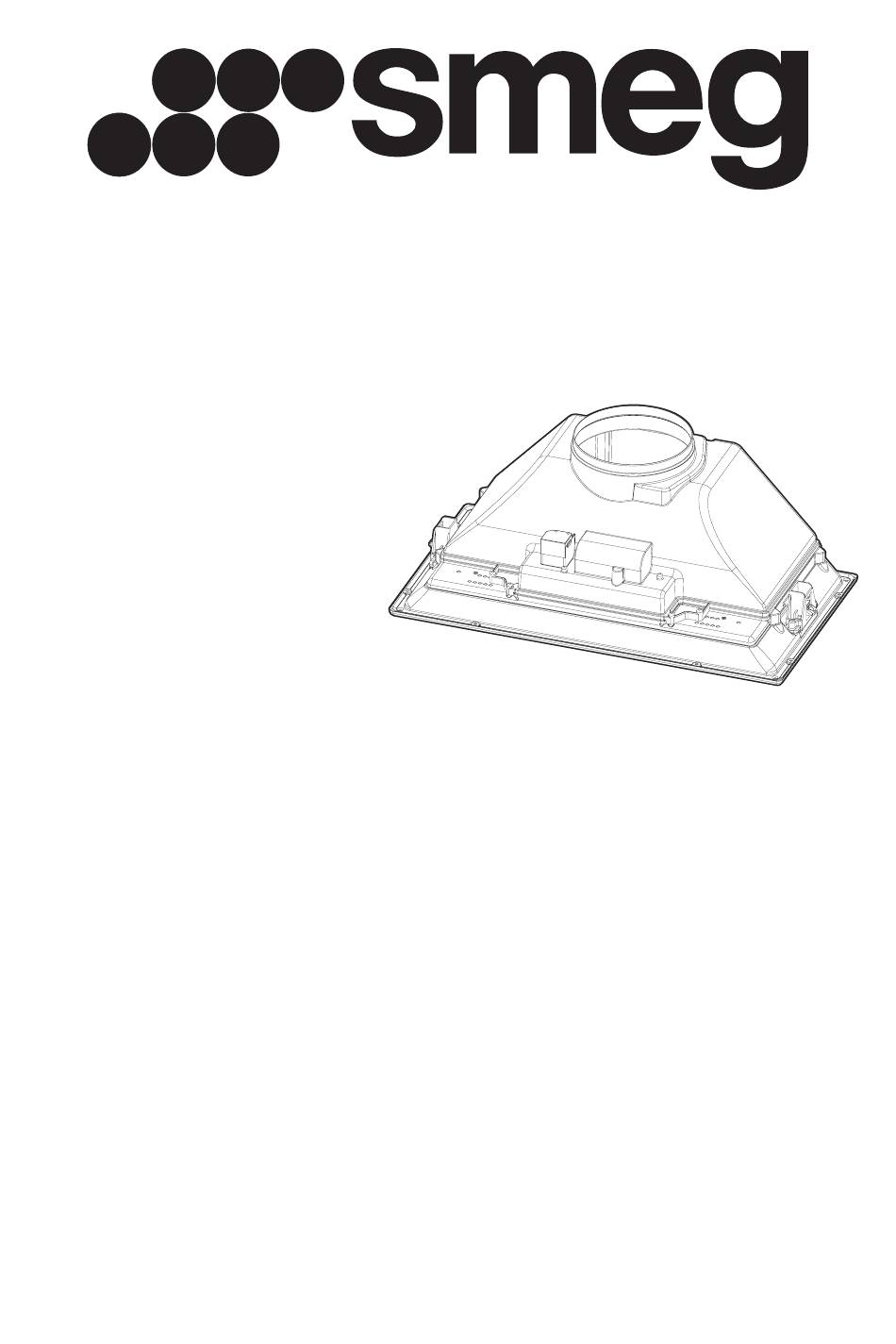

- Page 1 Manuel d’Instructions Manuel d’Instructions Instructions Manual Instructions Manual Manual de instrucciones Manual de instrucciones Libretto Istruzioni Libretto Istruzioni KSEIG36XU KSEGU24X KSEIG36XU...
- Page 2 INDEX INDEX WARNINGS AND REQUIREMENTS ........................................ 3 WARNINGS AND REQUIREMENTS ........................................ 3 RECOMMENDATIONS AND SUGGESTIONS ..................................... 6 RECOMMENDATIONS AND SUGGESTIONS ..................................... 6 DIMENSIONS and MAIN PARTS ........................................7 DIMENSIONS and MAIN PARTS ........................................7 INSTALLATION ................................................ 9 INSTALLATION ................................................ 9 USE ...................................................
- Page 3 READ AND SAVE THESE INSTRUCTIONS The Installer must leave these instructions with the homeowner. The homeowner must keep these instructions for future reference and for local electrical inspectors’ use. READ THESE INSTRUCTIONS BEFORE YOU START INSTALLING THIS RANGEHOOD WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: Never leave surface units unattended at high settings.
- Page 4 WARNING - To Reduce The Risk Of Fire, Use Only Metal Ductwork. W A R N I N G • Venting system MUST lead the air outside the building. • DO NOT expel the air through a ductwork in an attic or other enclosed space. •...
- Page 5 WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Installation Work And Electrical Wiring Must Be Done By Qualified Per- son(s) In Accordance With All Applicable Codes And Standards, Including Fire-Rated Construction. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting.
- Page 6 RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
- Page 7 Dimensions DIMENSIONS and MAIN PARTS Dimensions Ø 5-14/16" 7-14/16" 17-11/16" 19-11/16" 25-9/16" L = 8x (A= 20-8/16') L = 10x (A= 27-9/16')
- Page 8 INSTALLATION INSTALLATION SNAP-ON FITTING SNAP-ON FITTING SNAP-ON FITTING • The hood can be installed either directly on the bottom surface • The hood can be installed either directly on the bottom surface • The hood can be installed either directly on the bottom of the wall units using snap-on side supports.
- Page 9 Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using a rigid 6” duct. (not supplied) • Install the damper 10a ø 6”. • Fix the duct in position using sufficient pipe clamps. Electrical connection Electrical connection over from the Field Wiring Compartment with a phillips...
- Page 10 L Light Switches the lighting system on and off L Light Switches the lighting system on and off Light Switches the lighting system on and off. M Motor Switches the extractor motor on and off M Motor Switches the extractor motor on and off Motor Switches the extractor motor on and off.
- Page 11 CARE MAINTENANCE Grease filters Filtri antiodore (Versione Filtrante) Opening Panel Grease filters CLEANING METAL SELF-SUPPORTING GREASE FILTERS • Open the Panel by pulling it. CLEANING METAL SELF-SUPPORTING Sostituzione • The filters must be cleaned every two months • Clean the outside with a damp cloth and neutral detergent. GREASE FILTERS of operation, or more frequently with heavy us- •...
