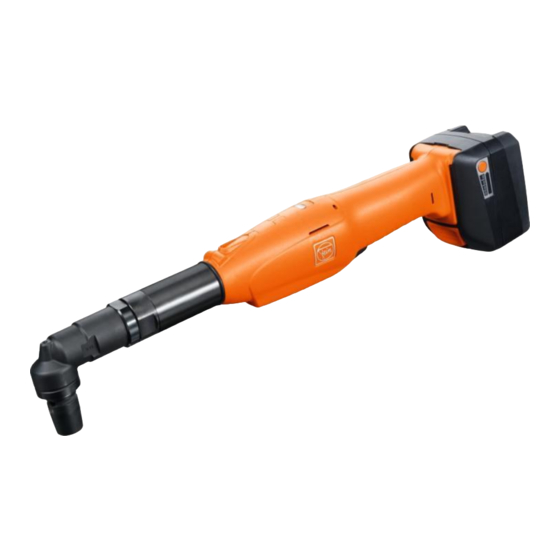

Fein ASW 14-30-PC Repair Instructions
  1. Manuals
  2. Brands
  3. Fein Manuals
  4. Power Tool
  5. ASW 14-30-PC
  6. Repair instructions

Fein ASW 14-30-PC Repair Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

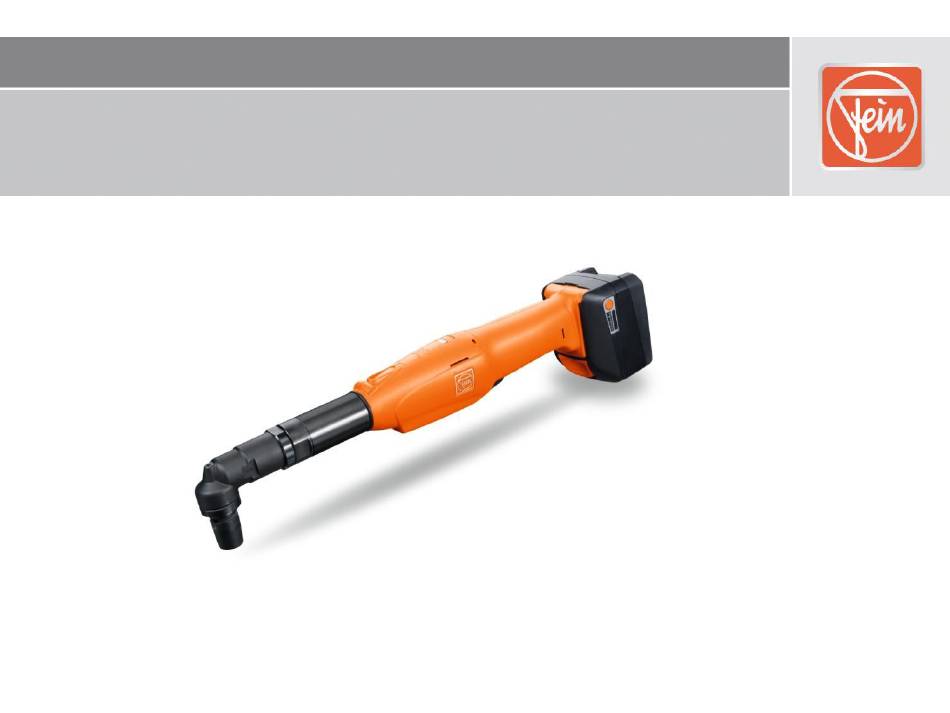

ASW 14-30-PC
Repair instructions
All rights reserved by FEIN, especially in case of industrial rights registration.
C-SC_CSSM
VERSION 1.0
14-07-22
1/53
FEIN retains all rights of disposal, such as copying and circulation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASW 14-30-PC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fein ASW 14-30-PC

Summary of Contents for Fein ASW 14-30-PC

  • Page 1 ASW 14-30-PC Repair instructions All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 1/53 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 2: Table Of Contents

    5. Lubricants and auxiliary substances required 6. Disassembly 7. Assembly 8. Troubleshooting 9. Connection diagram All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 2/53 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 3: Models Described

    These instructions describe how to repair the following models: Model Order no. ASW 14-30-PC 7 112 53 00 95 0 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 3/53 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 4: Technical Data

    The complete technical data can be found in the operating instructions for the model. Test data Up-to-date test data for all models can be found on the FEIN Extranet (Customer Service → Repair Guides). Lubricants The lubricants and container sizes available from FEIN can be found on the FEIN Extranet (Customer Service →...

  • Page 5: Notes / Requirements

    The German Equipment and Product Safety Act applies for correct use. Outside Germany, the regulations applicable in the relevant country must be observed! All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 6 Failure to comply with the safety regulations for ESD protection may cause tool damage. Only undertake assembly/disassembly work on the tool at a workplace with ESD protection. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...

  • Page 7: Tools Required

    6 29 10 029 00 7 - Flat nose pliers - Feeler gauge - Spring balance NOTE You can only order special tools with an order number from FEIN. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 7/53 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 8: Lubricants And Auxiliary Substances Required

    3 21 600 14 23 0 0.6g Tool holder; switch ring; cam ring Auxiliary substances Loctite 638 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 8/53 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 9: Disassembly

    1. Grip thread ring (1) and unscrew angled head (2) (left-handed thread). - Open-ended spanner, WAF 27 - Open-ended spanner, WAF 32 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 9/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 10 2. Remove connector (2). - Open-ended spanner, WAF 27 - Open-ended spanner, WAF 32 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 10/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 11 6. Disassembly Removing planetary gear Tools: 1. Remove round seal ring (1). -Small screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 11/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 12 6. Disassembly Disassembling housing Tools: 1. Loosen the eight screws (1). - Torx T10 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 12/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 13 1. Slide sliding cover (1) into gearbox housing. 2. Carefully pry off top part of housing (2). - Screwdriver  Place screwdriver between coupling and housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 13/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 14 ASW 14-30-PC 6. Disassembly Disassembling housing 1. Remove upper part of housing (1). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 14/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 15 NOTE When the slide switch is removed, the spring (4) may jump out slightly. 3. Remove slide switch (3). 4. Remove spring (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 15/53...
  • Page 16 ASW 14-30-PC 6. Disassembly Removing clutch 1. Remove clutch (1). 2. Pull out straight pins (2) from the flange. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 16/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 17 2. Remove circlip (2). NOTE You need modified circlip pliers to dismantle the circlip. The upper side of the pliers must be ground flat. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 17/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 18 2. Remove connector (2).  The flange and gearbox are inseparably glued with Loctite, spare parts are supplied individually and have to be glued together upon assembly. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 19 2. Pull off ball bearing (4). (6 41 04 150 00 8) - Ball bearing puller 19mm (6 41 07 019 00 7) All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 19/53...
  • Page 20 ASW 14-30-PC 6. Disassembly Removing clutch 1. Remove discs (1). 2. Remove circlip (2). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 20/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 21 1. Release all tension on spring (1). 2. Unscrew adjusting ring (2) (left-handed thread). -Torque wrench 3. Remove ring (3), the three balls and spring (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 21/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 22 2. Shake nine balls (3) out of hole in outer clutch ring (4). 3. Remove two clutch rings (5 and 6). NOTE Degreasing the clutch ring before disassembly makes it easier to remove the balls. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 22/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 23 Tools: 1. Remove two switch pushbuttons (1). 2. Remove leaf spring (2). -Flat-nose pliers 3. Remove pressure piece (3). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 23/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 24 2. Take out electronics circuit board (2). 3. Carefully pull ribbon cable (3) from electronics circuit board. 4. Remove pressure piece (4) from ribbon cable. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 25 If electronic strip is defective, the replacement strip must be kinked slightly at the same place. The kink (3) is located between the two notches on the electronic strip. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 26 3. Pull gearbox (3) from flange. NOTE Do not pull gearbox jerkily as otherwise gear-wheels may fall out of gearbox housing.  If gearbox has come apart, see assembly. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 26/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 27 6. Disassembly Removing motor/gearbox unit Tools: 1. Unscrew flange (1). - Torx 10 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 27/53 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 28: Assembly

    The balls must be inside the cam ring and must not lie inside the hole. 3. Insert the nine balls (4) [D=5mm] into the recesses on the switch ring. 4. Slide switch ring (2) on to cam ring. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 29 1. Slide spiral spring (1) and ring (2) on to tool holder. 2. Insert the three balls [D=3] (4). 3. Screw down adjusting ring (3) (left-handed thread). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 30 3. Slide circlip (3), disc(s) (4) and grooved ball bearing (5) on to tool holder. 4. Insert circlip (6). 5. Slide flange (7) on to grooved ball bearing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 31 - Circlip pliers (ground) NOTE You need modified circlip pliers to fit the circlip. The upper side of the pliers must be ground flat. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 31/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 32 The kink (1) is located between the two notches on the electronic strip. 1. Clip LED (2) with electronic strip into holder. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 33 3. Carefully connect ribbon cable (3) to electronics circuit board. NOTE The notches on the pressure piece must be at the top and on the operating side. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 34 3. Fit one circlip on each screw and tighten to 1.1 Nm. 4. If the gearbox falls out, reassemble it in the correct order as shown in the photo. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 35  The three prongs on the circlip must lie snugly inside the teeth. 2. Join gearbox (3) to motor (2). 3. Join bush (4) to gearbox. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 36 7. Assembly Assembling electronics 1. Insert ribbon cable (1) in guides (2). 2. Insert electronics circuit board (3) in lower part of the housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 36/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 37 1. Insert motor/gearbox unit (1) in lower part of housing. NOTE Ensure that no cables become trapped. The rounded side of the bush (2) must be on the operating side. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 37/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 38 7. Assembly Routing the cables 1. Carefully insert ribbon cable (1) in plug (2) on motor circuit board. 2. Route cables (3) as shown. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 38/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 39  The switch pushbutton and pressure piece must be flush at the top (2). NOTE The round depression in the switch pushbutton must be on the operating side. 2. Insert switch pushbutton (3) in housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 39/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 40 The notches on the leaf spring are on the side and the curvature of the spring must face the operating side. 2. Insert switch pushbutton (2) in housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 41 For the rest of the assembly process, keep the slide switch continually pressed down to prevent the slide switch and spring from jumping out again. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 42 5. Put straight pin (5) into hole in flange. 6. Arrange folded electronic strip (6) as shown. 7. Insert holder (7) with LED in housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 43 ASW 14-30-PC 7. Assembly Fitting motor/gearbox unit NOTE Ensure that the cable is correctly kinked and installed in the correct position. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 43/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 44  The installation dimension can be adjusted with the addition or removal of discs in front of and behind the ball bearing (see page 29). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0...
  • Page 45 ASW 14-30-PC 7. Assembly Assembling housing 1. Fit upper part of housing (1). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 45/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 46 7. Assembly Assembling housing Tools: 1. Screw in the eight screws (1). - Torx T10 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 46/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 47 2. Apply Loctite 638 to flange (2). - Adjustable pin wrench 3. Screw on thread (3) (left-handed thread). - Loctite 638 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 47/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 48 1. Tighten planetary gear (left-handed thread) [11 Nm / 76 N].  Leave Loctite to harden for 24 hours before commissioning. - Adjustable pin wrench - Spring balance All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 48/53...
  • Page 49 1. Slide on round seal ring (1). 2. Screw on thread ring (2) as far as stop (left-handed thread). - Open-ended spanner, WAF 32 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 49/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 50 2. Screw on angled head (2) (left-handed thread). - Open-ended spanner, WAF 27 - Open-ended spanner, WAF 32 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 50/53 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 51 - Open-ended spanner,  The angled head can be aligned first if desired. WAF 27 - Open-ended spanner, WAF 32 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 51/53 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 52: Troubleshooting

    ASW 14-30-PC 8. Troubleshooting See separate file on Extranet or retail partner portal. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 52/53 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 53: Connection Diagram

    ASW 14-30-PC 9. Connection diagram All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM VERSION 1.0 14-07-22 53/53 FEIN retains all rights of disposal, such as copying and circulation.
