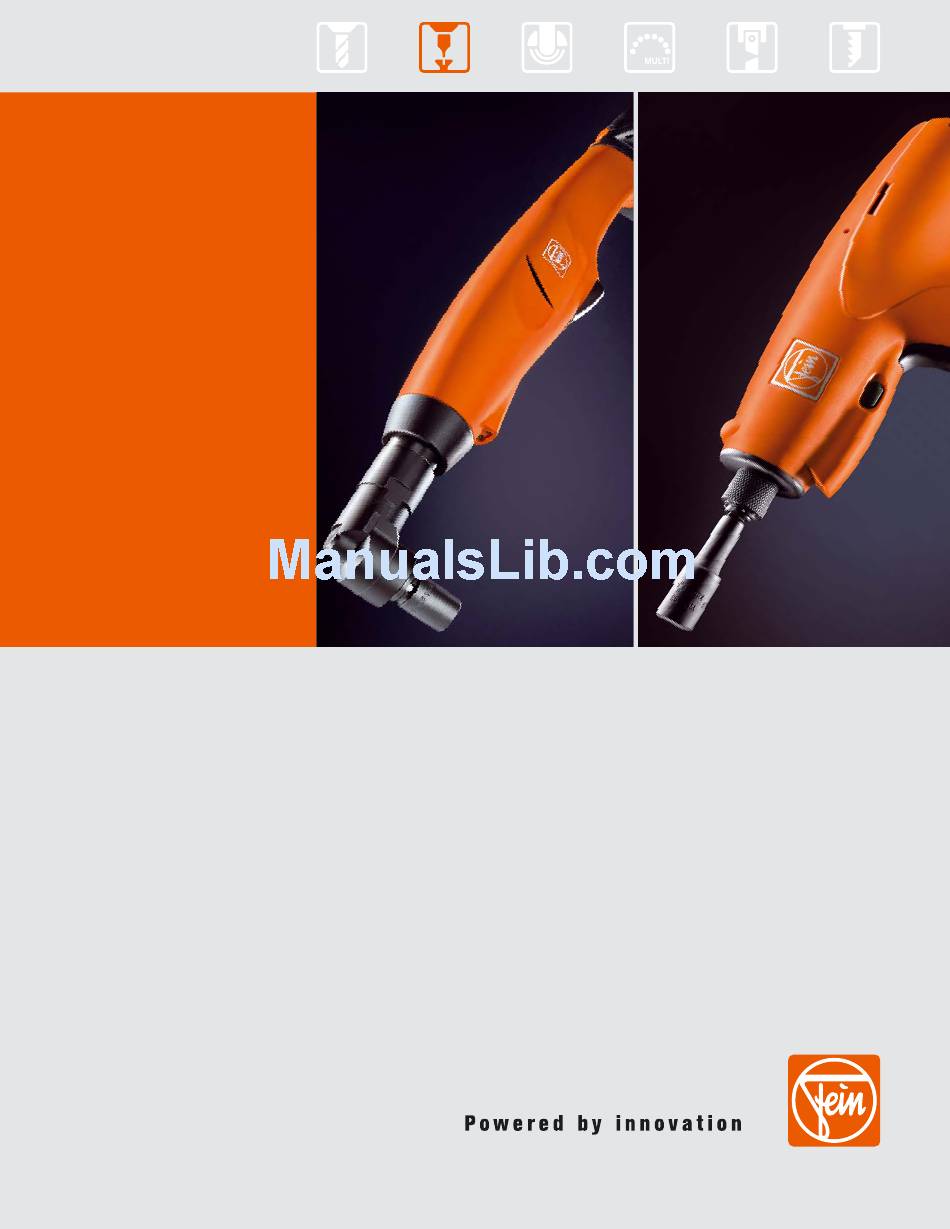

  • Page 1 FEIN A Screwdrivers Precision cordless screwdrivers for use in assembly production.
  • Page 2 FEIN A screwdrivers: Quality in assembly. FEIN has good reason to claim that it is, “Powered by innovation.’’ The demands of torque fastening have increased enormously in the last decade. Based on many years of experience, FEIN has acquired the knowledge for fastening applica- tions: torque repeatability and excellent er- gonomics for comfortable handling.
  • Page 3 Improper fastenings are indicated by the red LED and an acoustical signal. Battery capacity is monitored continu- ously. The LED indicator also signals when the battery should be exchanged. Maintenance Costs Comparison: FEIN EC motor Brush motor...
  • Page 4 150 rpm in the torque range of 9 - 53 in.lbs. (1-6 Nm). This guarantees that the screw drive meets quality requirements from onset until the set torque is reached. More than exact screw- driving: FEIN A gun with pistol grip handle or … Unique left-hand operation!
  • Page 5 ... as an angle nutrunner. Direct illumination. The LED illumination integrated into all screwdrivers lights up the fas- tening site. The view is optimal even in spots where the view is usually difficult. During the actual screwdriving the illumination is automati- cally switched off in order to conserve valuable battery capacity.
  • Page 6 1,250 mAh 1,250 mAh Very high operating efficiency Work without fatigue thanks to op- timal ergonomics and well-balanced weight distribution FEIN batteries with high loading capacity/screwdrives Continuous illumination of the screwdriving site Left-hand operation activated at the press of a button...
  • Page 7 1 NiCd battery 1,250 mAh Very high operating efficiency Work without fatigue thanks to op- timal ergonomics and well-balanced weight distribution FEIN batteries with high loading capacity/screwdrives Continuous illumination of the screwdriving site Left-hand operation activated at the press of a button...
  • Page 8 Soft cut-out without hand/arm recoil Very high operating efficiency Work without fatigue thanks to optimal ergonomics and well- balanced weight distribution FEIN batteries with high loading capacity/screwdrives Integrated illumination for the screwdriving point Left-hand operation activated at the press of a button...
  • Page 9 Soft cut-out without hand/arm recoil Very high operating efficiency Work without fatigue thanks to optimal ergonomics and well- balanced weight distribution FEIN batteries with high loading capacity/screwdrives Integrated illumination for the screwdriving point Left-hand operation activated at the press of a button...

  • Page 10: Model Range

    ASW 12-16 8.9 – 141.6 (6.0 – 16.0) " " 2 x 180° 7 113 04 ASM 9-9 ASM 12-9 ASM 12-12 17.7 – 79.65 17.7 – 79.7 26.6 – 106.2 (2.0 – 9.0) (2.0 – 9.0) (3.0 – 12.0) "...
  • Page 11 A complete program Since assemblies are becoming ever more compact, access to screw connections often becomes impossible with conven- tional tools. FEIN offers an ideal program consisting of the A nutrunner offset screwdriver with various types of tongue tools. Flat drives or tongue tools offer the perfect solution in the production pro- cess.
  • Page 12 FEIN A 12 V angle nutrunner – with angled head and tongue tool. Model number Torque range in.lbs (Nm) Idle speed Current/Voltages Weight incl. battery lbs (kg) Chuck (QuickIN) Adapter Features/Order reference Model with: Flat drive and drive toothed gear...
  • Page 13 FEIN A 12 V angle nutrunner – with flat drive inline and tongue tool. Model number Torque range in.lbs (Nm) Idle speed Current/Voltages Weight incl. battery lbs (kg) Chuck (QuickIN) Adapter Features/Order reference Model with: Flat drive and drive toothed gear...
  • Page 14 9 26 04 079 02 1 12 V NiMh ASW only FEIN offers ecological battery disposal. We accept used battery packs for proper and complete recycling to protect the environment. Faults in the batteries such as cell shorts are detected by the batteries’ coding and indicated.
  • Page 15 Accessories at a glance. ASM accessories Coding sleeves For color IDs of different models Color Qty. Order reference Black 3 05 01 345 01 0 Grey 3 05 01 346 01 0 Green 3 05 01 347 01 0 Blue 3 05 01 348 01 0 3 05 01 349 01 0 Orange...
  • Page 16 Germany: C. & E. FEIN GmbH, Leuschnerstr. 43, 70176 Stuttgart, Telefon 07 11 66 65-191, Fax -229 Great Britain: FEIN Industrial Power Tools U.K. Ltd., 4 Badby Park, Heartlands Business Park, Daventry, Northants NN11 5YT, Tel. 01327 308730 Canada: FEIN Canadian Power Tool Company, 323 Traders Boulevard East Mississauga, Ontario L4Z 2E5, Tel. (905) 890-1390, Toll Free: 1-800-265-2581 FEIN Canadian Power Tool Company, 2810 De Miniac St.
