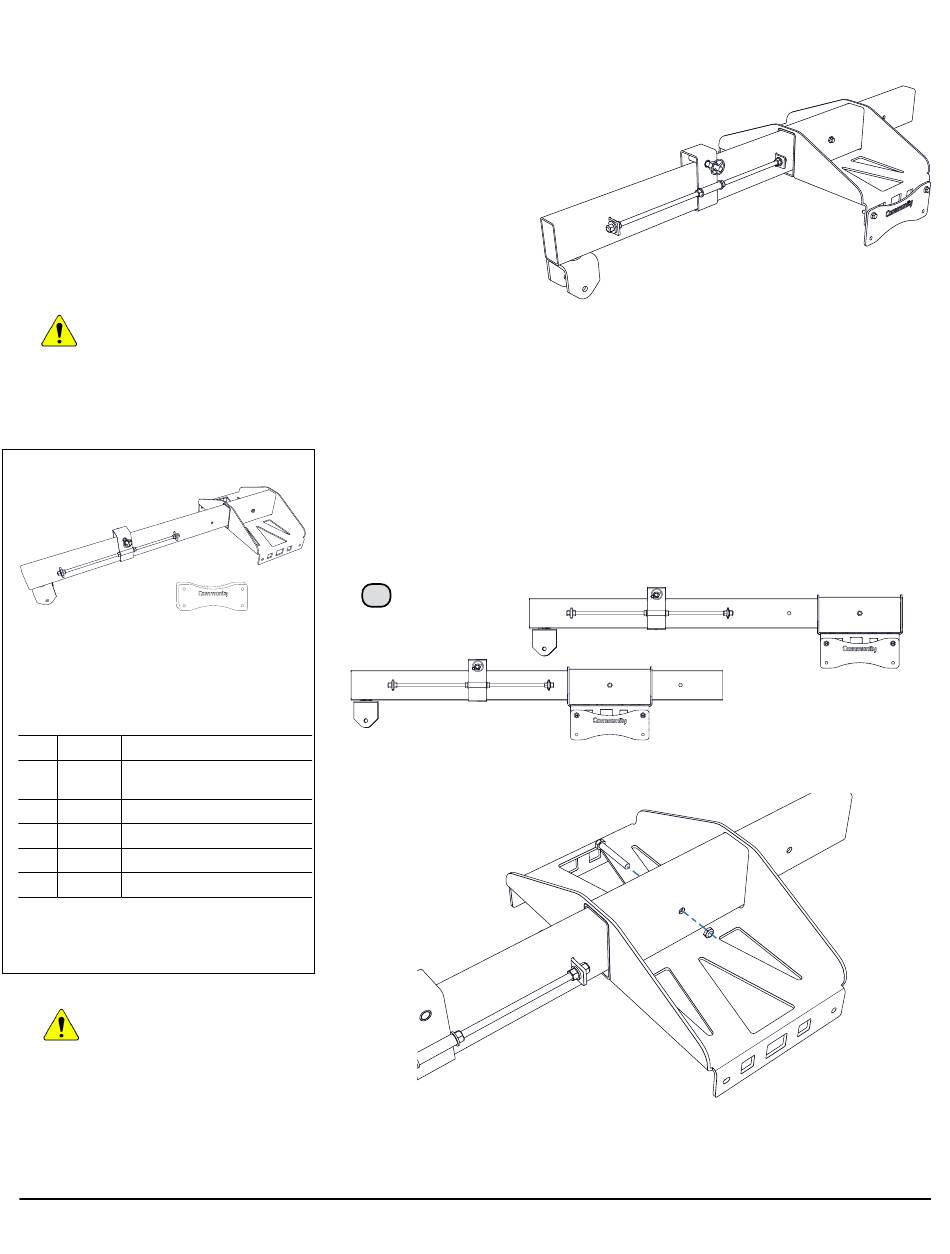

SUB BEHIND ARRAY FRAME
Hang up to eight (8) IV6 subwoofers behind the main indoor array
APPLICATION: Connect to and suspend subwoofers behind a loudspeaker
array.
Before assembly: Determine the weight of the main array (from modeling the
system in EASE® Focus 3). Connect S1 splay brackets to all but one of the
subwoofers - that one will be mounted to the IV6-SB-AF.
Tips:
• The mounting frame is preinstalled at the rear position
• Using the rear position will better counterbalance the weight
of a larger main array
IMPORTANT: The IV6-SB-AF must always hang level. Use the
•
Sub-behind Hang Point Calculator to help determine both the
mounting frame position and the carriage location.
• When building the main array along with the sub-behind array, the main array
can be rotated (up to 90°) to prevent the cabinets from potentially hitting
while lifting the assembly and adding to the length of the array.
Parts:
SB-AF
S1 with Logo
IV6-SB-AF
SB-AF: Sub Behind Array Frame (1)
S1 w/ Logo: Splay brackets w/wordmark (2)
Hardware:
Code Description
Qty
Grade 10.9 Flanged
4 HHB-F
Hex Head Bolts
HN-F Flanged Nuts
4
C-HB Carriage Hex Bolt
1
1 C-HN Carriage Hex Nut
LR Locking Ring
1
Kit Weight: 108.0 lbs (49.0 kg)
Working Load Limit: 2000 lbs (907.2 kg)
(10:1 safety factor)
IMPORTANT: Leave bracket
hardware slightly loose until
the cabinet is attached to the
brackets. This allows cabinet to fit
between the brackets easily. Then
fully tighten all bolts. Do not place
under load until connections are
tight!
Page 4
ASSEMBLY
1. Move the sub mounting frame to the
forward position if only 1-2 subwoofers
are being mounted.
1
SB-1. Determine sub mounting position
(Reposition frame, forward if needed, using installed bolt/nut)
IV6-SB-AF Instructions
Forward mounting position
Rear mounting
position
