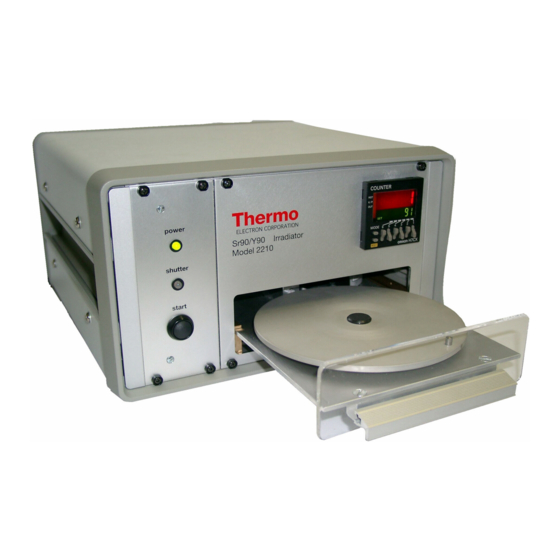

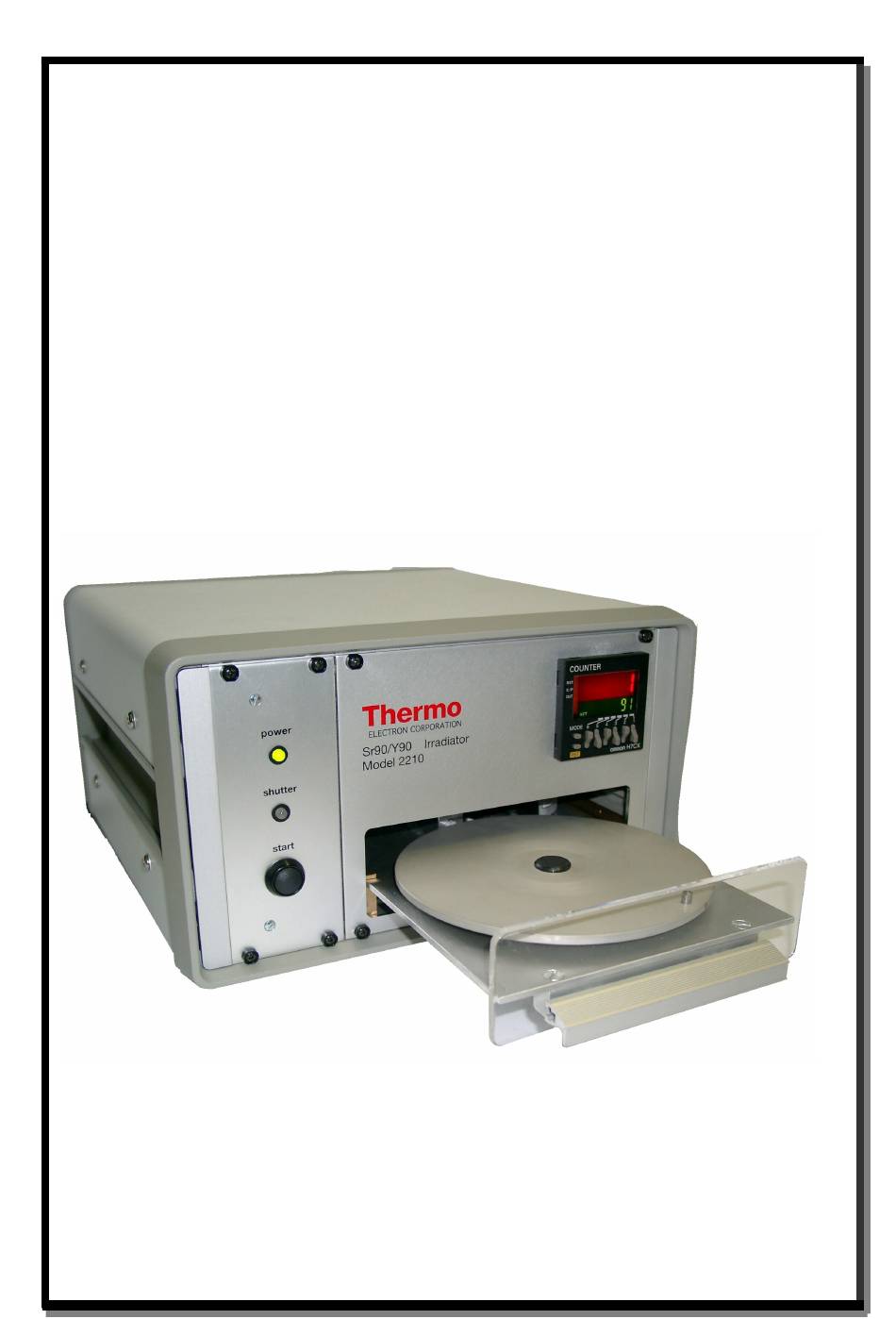

- Page 1 Instrument Manual Sr90/Y90 TLD-IRRADIATOR MODELL 2210 Serial-No.: 010205..TLD-Irradiator serves the calibration of TLD chips, -sticks or maps. Technical subject to change Conditions: March 2009 designed by Scheliga...
-
Page 2: Contents And Purpose
0. Prefaces Contents and purpose This manual serves for the support of the instructed personnel for operation TLD-Irradiators and to the guarantee of its employment fitness. References In this manual the references have Caution, Attention and Note the following meaning: Caution: This heading is used, if inaccurate obeying or disregarding of instructions or procedures... -
Page 3: Range Of Application
1. Range of application The Tld-irradiator MODELS 2210 is a versatile calibration system and serves the calibration of TLD chips, - sticks with 2, 3 or 4 elements. For this is a Sr90/Y90 radiation source used by 33 MBq (0.9mCI) with an activity. -
Page 4: Technical Manual
2. Technical manual TLD-Irradiator is built in a portable condition housing. The front side of the housing contains the following modules from on the left of to the right: the electronic tax and control unit the thrust subject the calibration factor announcement. On the back is a cold equipment installation plug in combination with the in out rocker switch, the safeguard subject and the voltage switch as slidegate valve. - Page 5 During the calibration procedure the disk, propelled by an alternating current synchronous geared motor, turns with the elements which can be illuminated continuously under the opened source screen. With a frequency of 50 cycles per second the speed 1 rotation / minute is. With a frequency of 60 cycles per second the speed 1.2 rotations / minute is.
- Page 6 2.1 Function of the serving and indicators Serving and/or Position/ Result / Function indicating announcement green LED does not shine Equipment switched off ,,power“ shines Equipment switched on white LED does not shine Map disk not in basic position shutter closed ,,shutter“...
- Page 7 3. Technical data of the equipment Manufacturer: Günther Scheliga Gerätebau * Steuerungstechnik * Industrieservice Aachener Str. 79 D-52249 Eschweiler Tel.: 02403 / 838484 Fax: 02403 / 839108 E-mail: elektro-scheliga@t-online.de Typ: 01 02 04 ………/ 01 02 05……… Capacity: 50 chips/plate (combi disc) 5 maps with 2, 3 or 4 elements (card disc) Source: 90Sr / (Y90)
-
Page 8: Safety Precautions
4. Manual Caution Please read the manual carefully and completely, before you take the equipment in enterprise! 4.1 Safety precautions Caution The equipment corresponds to the relevant safety regulations. Repairs may be accomplished only by authorized specialists! Inappropriate repairs can result substantial dangers for the user, for which the manufacturer is not responsible! If the equipment is purpose-alienated used, the manufacturer takes for this no guarantee! - Page 9 4.2 Operating instructions In order to serve duly the equipment, first is to be clarified it, which kind of Tld elements are to be calibrated. If it concerns TLD maps, then the photograph plate is to be used for maps (card disc). Five maps can be put, with the map corner outward, on the plate.
- Page 10 When TLD chips and/or. TLD- sticks are calibrated, you take the plate with the blind holes arranged at the edge (combi disc), into which the elements are to be put down. Then the thrust subject is put to be pulled out up to the notice and the appropriate plate is put on the thorn.
- Page 11 4.2.1 Table for calibration factor The next step consists of stopping by means of the shown table the calibration factor at the counter. Calibrating Type of plate Dose / Type of net Source, activity Calibration Element Revolution factor Standard 40µGy 230V, Sr 90, Harshaw Typ...
- Page 12 Note Calibration data for other dosimeters and/or plates can be determined easily with an TLD-analyzer (e.g. Harshaw model 4000 TLD). The determined desired value can be entered by the appropriate manipulation of the keys at the counter. After effected input those, the ,,reset" key is to be pressed in order to put the counter exit back.
- Page 13 4.3 Error recognition and recovery If the red, lights up ,,shutter”-LED announcement with the start of the calibration process, the source screen did not open. Repeat the starting process after the equipment were completely switched off. If the Irradiator does not show the desired reaction after renewed switching on and operation of the push-button, please inform the service.
-
Page 14: Maintenance
5. Maintenance This section contains measures and data for maintenance of the equipment. The equipment is to a large extent maintenance-free implemented. Caution The equipment may be waited only by instructed and entitled personnel. Before opening the equipment it is to be guaranteed that the power supply plug pulled and the equipment is unstressed! 5. -
Page 15: Scope Of Supply
6. Scope of supply 1 Sr90/Y90 TLD-IRRADIATOR 1 Mains connection line (3m long) 1 Set of fuses (installs) 1 Documentation ( CD ) - Page 16 6.1 Spare parts and part numbers and prices All prices are stand March 2009 and are adjusted to the annual price increases. The value added tax will be separately billed according to valid amount at time of delivery. Designation Order No.: €...
- Page 17 Designation Order No.: € / Piece Holder plate with safety closure, reinforcing bar and 0102030006 45,30 clamp holder Plate with axle and switching 0102030007 78,60 magnet Slide plate with bearing flange, friction bearing and 0102030008 136,75 bushing Belt pulley for motor and 0102030009 90,25 plate incl.
- Page 18 Designation Order No.: € / Piece Bar holder with pull-off for 0102030016 91,35 slide-plate incl. Micro-switch Source block for check source VZ 2687, cpl. with washer 0102030017 85,20 and spring Housing with extension kit, 0102030018 437,50 front panel and rear panel 1 set bar device with serial No longer available no.: 940603/1 and 010202…...
-
Page 19: Block Diagram
7. Block diagram E1 Micro switch drawer closed E2 Micro switch shutter openly I1 Initiator zero-position Y1 Shutter magnet M- equipment exhaust M~ synchronous motor... - Page 20 8. EMV test Inspection station: Phoenix EMV-Test Königswinkel 10 32825 Blomberg Information of the test: Electrical breakdown sending tests Electrical noise immunity tests Tests based on: Breakdown sending: EN 55022 radiated breakdown sending of 1994 EN 55022 Interference voltage of 1994 The limit values and requirements based on EN 50081-1 of 1992 Noise immunity:...
- Page 21 8. Equipment inspection VDE 0701...
- Page 22 TLD-Map opener / TLD-Holderopener To open the dosimeter maps is offered a map opener. The map opener makes fast access possible to the TLD crystals by automatic opening of the maps. Further information on request.
