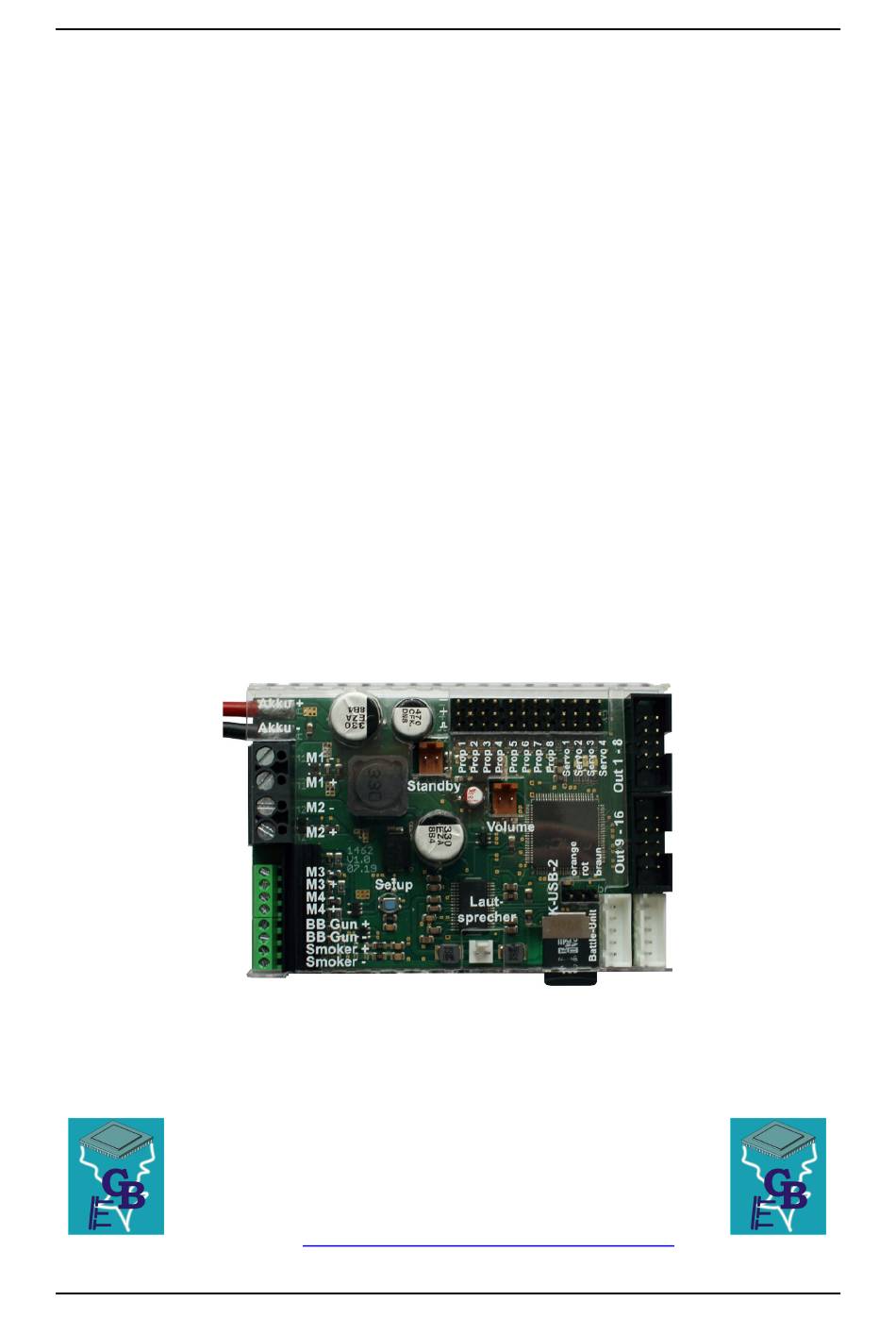

Double Sound Speed Controller SFR-1-D
Operating manual
Double Sound
Speed Controller
SFR-1-D
V1.01
BEIER-Electronic
Winterbacher Str. 52/4, 73614 Schorndorf - Weiler
Phone +49/7181/46232, Fax +49/7181/45732
eMail: modellbau@beier-electronic.de
Internet:
http://www.beier-electronic.de/modellbau
01.03.2020
BEIER-Electronic
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFR-1-D and is the answer not in the manual?

Questions and answers

Related Manuals for BEIER-Electronic SFR-1-D

Summary of Contents for BEIER-Electronic SFR-1-D

  • Page 1 Double Sound Speed Controller SFR-1-D Operating manual Double Sound Speed Controller SFR-1-D V1.01 BEIER-Electronic Winterbacher Str. 52/4, 73614 Schorndorf - Weiler Phone +49/7181/46232, Fax +49/7181/45732 eMail: modellbau@beier-electronic.de Internet: http://www.beier-electronic.de/modellbau 01.03.2020 BEIER-Electronic...

  • Page 2: Table Of Contents

    Sounds ........................19 Engine sound ......................20 Turning on/off engine sound ..................22 Engine sound 2 ......................23 Functions of the SFR-1-D ..................24 Additional sounds 1 - 30 ................... 26 Random sounds ....................... 28 WAV-Player ......................28 Functional assignment at proportional channels #1 - #8 .......... 30 Stick simulation via keys or switches ................
  • Page 3 Double Sound Speed Controller SFR-1-D Current monitoring ....................46 LEDs on the SFR-1-D ....................48 PC software „SFR-1-D Sound-Teacher“ ..............49 Using software „SFR-1-D Sound-Teacher“ ............... 51 Saving sounds and configurations on SD card ............86 Transferring configurations with data cable K-USB-2 ..........87 Adjustments of driving sound with the driving sound diagram ........

  • Page 4: Introduction

    USM-RC-2 and the speed controller UFR-1230-D. Thanks to various setting options the SFR-1-D can be easily adjusted to all model requirements and driving behaviours. The SFR-1-D comes with a large light control unit, eight proportional channels, four servo outputs, two mini speed controller for auxilliary drives and additional outputs for a smoke generator, a Xenon flasher and an IR battle unit.

  • Page 5: Safety Notes

    YouTube tutorials If you have questions about basic functions of the sound module SFR-1-D, please watch our YouTube video tutorials with English subtitles. In these videos we explain for example how to connect the sound module and how to program and control different functions.

  • Page 6: Technical Details

    Double Sound Speed Controller SFR-1-D Technical details Supply Voltage (U 6 – 18 V DC Power consumption: Bias current: approx. 1 mA Standby current (sound, motor and outputs off): approx. 80 mA Motor current (M1 and M2): Max. 2 x 30 A continuous current,...
  • Page 7 Double Sound Speed Controller SFR-1-D Protection features: • Short circuit protection at motor output stage • Short circuit protection at switching outputs • Short circuit protection at BEC • Temperature monitoring • Battery voltage monitoring • Protection while switching on power supply •...

  • Page 8: Pin Assignment

    Double Sound Speed Controller SFR-1-D Pin assignment Connections at SFR-1-D: X1/A+ Battery + / Akku + (6 – 18 V) X1/A- Battery - / Akku - X1/M1 Motor 1 (motor left) X1/M2 Motor 2 (motor right) X2/1 – X2/8 Proportional input channel #1 – #8...

  • Page 9: Wiring Diagram

    Double Sound Speed Controller SFR-1-D Wiring diagram 01.03.2020 BEIER-Electronic...

  • Page 10: Installation

    Always switch off power before connecting the module! Connection of supply voltage (battery) The SFR-1-D is suitable for 6 – 18 V DC. Choose a suitable battery for your motor. In order to connect the power supply the red cable is connected to the positive pole of the battery and the black cable to the negative pole of the battery.
  • Page 11 To proportional inputs X2/1 - X2/8 up to 8 proportional channels can be connected to the receiver. 5 servo patch cables are included in the SFR-1-D delivery. Additional servo patch cables (15 and 30 cm) can be ordered in our online shop.
  • Page 12 5,6 V. The maximum continuous BEC current is 3 A. Up to 10 seconds a current of 5 A is possible. In case the BEC voltage of the SFR-1-D should not be used, the red cable from all servo cables from proportional channels #1 - #8 must be disconnected! Connection of loudspeaker The loudspeaker ist connected to X7 (white) at the SFR-1-D.
  • Page 13 Black The switched voltage at the outputs (with 100% intensity) is always as high, as the supply voltage of the SFR-1-D. For example if the module is supplied with 12 V, only lamps with 12 V can be connected. If LEDs are used, series resistors are always required. Furthermore, attention must be paid to the correct polarity of the LED.
  • Page 14 If no switch is connected to X9 or the switch is not closed, the SFR-1-D will operate normally. At the standby switch there is only a small spreader current of a few μA and not the complete current of the module.

  • Page 15: Setup (Teaching Function)

    The SFR-1-D is delivered with following standard setting: neutral position (1,5 ms), minimal position (1,0 ms) and maximal position (2,0 ms). We recommend to „teach“ the SFR-1-D with the radio at least once. The motor is not used during the setup.
  • Page 16 2. All channels and their trim must be in neutral position on your radio. Switch on transmitter first and then the SFR-1-D. 3. Activate the setup, with the blue button on the SFR-1-D board, until the green LED flashes fast. The blue LED flashes once.

  • Page 17: Loudspeaker

    SFR-1-D. 3. Switch on power supply at the speed controller. 4. Activate the setup, with the blue button on the SFR-1-D board, until the green LED flashes fast. The blue LED flashes once. 5. With correct signals at throttle channel X2/1 and X2/2, all neutral positions are evaluated and stored.

  • Page 18: Volume Control

    Double Sound Speed Controller SFR-1-D Volume control A volume control is possible by an external potentiometer or by different functions with the radio. The external potentiometer (100kΩ) is connected to X8 (see wiring diagram, page 9). If no potentiometer is connected, the maximum volume, set in the Sound-Teacher (10 –...

  • Page 19: Sounds

    Double Sound Speed Controller SFR-1-D Sounds All sounds are stored at the SFR-1-D with our software SFR-1-D Sound-Teacher, in so called „slots". You don’t have to use every slot. If you don’t want e.g. any starting-noise, just keep the starting-noise slot free.

  • Page 20: Engine Sound

    Double Sound Speed Controller SFR-1-D Engine sound The engine sound consists of several single noises. Normally there is an engine start noise, an idling noise, a driving noise and an engine stop noise. This module also offers the possibility to imitate up to five different driving sounds (for example for...
  • Page 21 (e.g. slow, normal and fast). Please keep in mind; the “gears” are just generated by the SFR-1-D and not through a mechanic gearshift. Yet it is not possible to activate the different sounds through an engine control or a real gearshift.

  • Page 22: Turning On/Off Engine Sound

    How to open sound files In the folder “SFR-1-D Sounds”, on the supplied DVD-ROM, you will find some exemplary sounds for different vehicle types. In order to store a new sound on the SFR-1-D, start the program “SFR-1-D Sound-Teacher", open a *.sfr-1-d project file (Menue “File”...

  • Page 23: Engine Sound 2

    Double Sound Speed Controller SFR-1-D Using nautic-mode on proportional channel #5 (X2/5) and #6 (X2/6) to switch on engine sound: If you have a nautic swich unit installed in your receiver, you can assign the function “engine sound on/off" to a nautic switch (Configuration  Nautic/multiswitch) to turn the engine sound on or off with the selected switch (see page 33).

  • Page 24: Functions Of The Sfr-1-D

    2. These functions continue to be controlled through the throttle channel at the normal engine sound. Functions of the SFR-1-D Additionally to the driving sound, the SFR-1-D offers more features, which can be controlled by the remote control. Overview of all the functions: Additional sounds •...
  • Page 25 Double Sound Speed Controller SFR-1-D • Ship: Constrained by draught • Ship: Towing • Ship: Assisting • Ship: Fishing • Smoke generator • BB gun Speed controller • Change of direction • Throttle curve 2 • Load regulation on / off •...

  • Page 26: Additional Sounds 1 - 30

    Double Sound Speed Controller SFR-1-D Additional sounds 1 - 30 On top of the engine sound, the SFR-1-D can play up to 30 additional sounds. Typical sounds are e.g. horns, hydraulic and pneumatic noises, warning horns, shooting noises, Songs, radio calls, and so on. There are nearly no limits set to your imaginations.
  • Page 27 Double Sound Speed Controller SFR-1-D Triggering with proportional channels #2 - #8 (as memory configured) or with EKMFA-mode: Mode Function Once / complete When the sound is started, it is played exactly once, from start to finish, and then it stops. It is not possible to halt the sound prematurely;...

  • Page 28: Random Sounds

    Double Sound Speed Controller SFR-1-D Random sounds Up to eight random sounds can be played with the SFR-1-D. The frequency of the sound play-back is determined by a random generator. The time spans (min/max) can programmed by 1 – 250 s for every sound separately. In the same way the conditions (idling/drive - engine sound on/off) the sound should be played can be programmed for each of the 8 random sounds.
  • Page 29 Double Sound Speed Controller SFR-1-D After track 30 the internal counter will jump back to track 1. By the way, the sound module always remembers the current track number. The next time the power supply is switched on, this track number “will be loaded“ again. If any changes are made to the SD card via the Sound-Teacher, the track counter will be reset to track number one.

  • Page 30: Functional Assignment At Proportional Channels #1 - #8

    Double Sound Speed Controller SFR-1-D Functional assignment at proportional channels #1 - #8 The proportional channel #1 and #2 are responsible for the speed recognition of M1 and M2. The remaining 6 channels can be used with different functions. (100)
  • Page 31 Double Sound Speed Controller SFR-1-D Difference between static and memory function: Static Memory If a function is defined as static, it will be If a function is defined as memory and switched on as long as the joy-stick is in you move the joy-stick for the specified the corresponding area.

  • Page 32: Stick Simulation Via Keys Or Switches

    Double Sound Speed Controller SFR-1-D Hint: With the diagnosis function and the data cable K-USB-2 the neutral position of each channel can be checked. For more information, see page 91. Stick simulation via keys or switches To use the functions of the proportional...

  • Page 33: One-Channel Multi-Function Selection (Ekmfa)

    To use the EKMFA mode it must be activated in the Sound-Teacher. With the “One-channel multi-function selection” (EKMFA) you can control up to 30 functions of the SFR-1-D with only one proportional channel (channel #3). You can assign in the Sound-Teacher the functions you would like to trigger with the EKMFA-mode (see page 68).

  • Page 34: Sum Signals S-Bus, Sumd/Sumd3 And I-Bus

    With correctly received data from the switch module, the blue LED on the SFR-1-D always flashes at regular intervals.

  • Page 35: Digital Switches At Sum Signal Sumd3

    Using the Sound-Teacher all 16 channels of the sum signal can be assigned to one of the 16 propotional channels of the SFR-1-D. It is important to use Prop #1 at the SFR-1-D for the throttle channel and Prop #2 for the steering channel of the transmitter.
  • Page 36 Double Sound Speed Controller SFR-1-D Following output types are possible: • Output static on • Output flashing • Output as pulse • Output flickering (sound dependend) • Daytime running light • Parking light • Low beam headlight • High beam headlight •...
  • Page 37 Double Sound Speed Controller SFR-1-D Following outputs must be activated with the „light name“ in the selection of functions and not with the output number: parking light, low/high beam light, front/rear fog light, indicator left/right and all „combined“ lights. For example: the parking light is connected at output 1. To activate the light (via prop channel, nautic/multiswitch or light switch) the function „parking light“...
  • Page 38 Double Sound Speed Controller SFR-1-D This can be used to generate very impressive light effects, such as a simulation of fire or a welding torch. The Sound-Teacher allows you to adjust the sensitivity of the flicker effect separately for each of the outputs. A value between 1 and 255 can be entered in the field “Option 1“.The higher the value the higher the sound volume must be to activate...
  • Page 39 Double Sound Speed Controller SFR-1-D Outputs "Bending light left" and "Bending light right" These outputs can be turned on at cornering. There are 2 ways in which the bending lights can be turned on: 1. By steering on proportional channel #2 (X2/2) 2.
  • Page 40 Double Sound Speed Controller SFR-1-D backward" is activated. In stand always the last switched output remains switched Output “In motion on“ This output is always switched on when the model is in motion, whether it is moving forwards or in reverse.
  • Page 41 Double Sound Speed Controller SFR-1-D Output „Temperature controlled“ If the motor output stage requires some cooling with an additional fan, the fan can be controlled via the existing temperature sensor. In Configuration  Outputs  Outputs you can define from which temperature the fan should be switched on ("Option 2") and at which temperature the fan should be switched off again ("Option...

  • Page 42: Additional Outputs

    Double Sound Speed Controller SFR-1-D The condition "In operation" can either be manually switched on with the function "Ship: In operation" (e.g. by using a Nautic switch), or automatically with the throttle channel on proportional channel #1. If you want to use the automatic detection of "In operation" or "At anchor", you will have to switch them on in the configuration of the Sound-Teacher (see page 72).

  • Page 43: Input „Cannon Shot

    Double Sound Speed Controller SFR-1-D Input „cannon shot“ At output X15/1 and X15/2 a „cannon shot“ can be activated. If X15/1 and X15/2 are connected with a switch contact, a cannon shot is started. A cannon shot has three parts: •...

  • Page 44: Servo Outputs

    The servo outputs deliver usual pulses from 1,000 - 2,000 ms, so you can connect standard servos or speed-controllers. The power supply for these servo outputs is the integrated BEC of the SFR-1-D. There are two different ways to control the servo outputs: 1.

  • Page 45: Function Sequences

    Double Sound Speed Controller SFR-1-D Function sequences All functions that can be triggered with the sound module (see page 24) can be compiled to a special function sequence with defined order and time for each step. More information can be found in this manual starting on page 84.

  • Page 46: Current Monitoring

    Double Sound Speed Controller SFR-1-D Some battery types (e.g. LiPo-batteries) should not be subjected to deep discharge, because this can damage the battery! With the help of the integrated voltage monitoring, it is now possible to warn the user. There are two thresholds in the Sound-Teacher: •...
  • Page 47 Double Sound Speed Controller SFR-1-D If an overcurrent is detected, the additional sound „Sound at overcurrent“ is played (if the slot is not empty) and the red LED on the sound module is also permanently switched on. 01.03.2020 BEIER-Electronic...

  • Page 48: Leds On The Sfr-1-D

    Double Sound Speed Controller SFR-1-D LEDs on the SFR-1-D There are three LEDs on the sound module to show different conditions. Green LED The green LED allways lights up while the supply voltage is connected to X1/A+ and X1/A-. Red and blue LED These two LEDs shows different conditions and errors.

  • Page 49: Pc Software „Sfr-1-D Sound-Teacher

    Double Sound Speed Controller SFR-1-D PC software „SFR-1-D Sound-Teacher“ With our software „SFR-1-D Sound-Teacher“ the module can be configured and sound files can be tranfered to the SD-card. System requirements • Windows compatible PC • Windows 2000, NT, XP, Vista, Windows 7, Windows 8 or Windows 10 •...
  • Page 50 Click on the “Start” button at the bottom left- hand corner of the screen then on “Programs”, on to “SFR-1-D Sound-Teacher” and finally click on “SFR-1-D Sound-Teacher”. The program should now start.

  • Page 51: Using Software „Sfr-1-D Sound-Teacher

    Transfer of project data to SD card by data Upload project data with cable data cable Data Shows live diagnostic data of the SFR-1-D Diagnosis via datacable cable with the datacable Functions can be triggered with the data Control SFR-1-D...
  • Page 52 Double Sound Speed Controller SFR-1-D Configuring sounds A lot of different sounds can be saved in the sound slots of the SFR-1-D. The sounds are divided into five different parts: • Engine sound • Engine sound 2 • Additional sounds •...
  • Page 53 Therefore the Sound-Teacher asks, when you are saving a project, to copy all files to the project directory. Configuring the sound module Click on the “configuration“ tab in order to carry out adjustments to the SFR-1-D. The settings are divided up into different ranges: • General •...
  • Page 54 Double Sound Speed Controller SFR-1-D Configuration - General SFR-1-D configuration If digital servos are connected to the servo outputs, the speed of the pulse output on the servo outputs can be reduced from the standard 20 ms to 10 ms. Some digital servos work better with 10 ms than 20 ms.
  • Page 55 Bluetooth controller: If you want to control the SFR-1-D via the Android app "SFR-1 Controller" with the Bluetooth module BTC-1, this must be activated here. A 4-digit PIN protects the model from being controlled by others.
  • Page 56 Double Sound Speed Controller SFR-1-D Configuration – Speed Controller – Motor M1 + M2 Dual mixer If no mixer function is used, both motors M1 and M2 can be used completely separate. Prop #1 (X2/1) controls motor M1 and prop #2 (X2/2) motor M2, just like two separate speed controller.
  • Page 57 Double Sound Speed Controller SFR-1-D There are also 3 different variants possible for controlling the two motors via an electronic differential. Here, both motors are always controlled together via the throttle channel #1. The electronic differential sets the ratio as the speed is distributed to both motors.
  • Page 58 Double Sound Speed Controller SFR-1-D Throttle curve 1 and 2 Using the curve, the proportion between throttle signal and driving behaviour can be set in the diagram. Both driving directions (backwards and forwards) have 10 values (at 10 %, 20 %, 30 %, 40 %, 50 %, 60 %, 70 %, 80 %, 90 % and 100 % of throttle signal) to adjust the driving behaviour.
  • Page 59 Hence, the motor has 3 conditions: turning left / stop / turning right. With this setting no complete prop. channel is used. It is also possible to activate the motors with a nautic/multiswitch or the bluethooth app SFR-1-D controller. However, it is not possible to control the motor speed proportional and steplessly.
  • Page 60 Double Sound Speed Controller SFR-1-D Configuration – Engine Sound – Engine Sound Engine sound options With no setting the engine sound of the faster motor is played. Optionally the average of both motors can be used for the engine sound.
  • Page 61 Double Sound Speed Controller SFR-1-D throttle stick shortly while standing. After an adjustable time the engine sound turns off automatically. Driving is only possible when the engine sound is on: If this option is activated, the model can only be driven if the engine sound has been switched on before.
  • Page 62 Double Sound Speed Controller SFR-1-D Driving sound diagram: The diagram shows graphically which driving sound/gear is played at the corresponding speed. In addition it is possible to set the driving sound directly in the diagram (see page 88). BEIER-Electronic 01.03.2020...
  • Page 63 Double Sound Speed Controller SFR-1-D Configuration - Engine Sound - Engine Sound 2 Different parameters for engine sound 2 can be configured in this section. Speed via proportional channels: Proportional channels #1 - #8 can be used as source/recognition for speed.
  • Page 64 Double Sound Speed Controller SFR-1-D Configuration - Random sounds Random sounds If you want to play random sounds (see page 28), you can set the time in which interval a random sounds should be triggered. The time ranges between 1 and 999 seconds.
  • Page 65 If sum signals should be used, they must be activated here. The sum signal channel of the receiver is connected to proportional channel #8 (X2/8) of the SFR-1-D. The proportional channels of the SFR-1-D can be assigned to the sum signal channels (see also page 34).
  • Page 66 Double Sound Speed Controller SFR-1-D Configuration - Proportional channels Assignments and thresholds for proportional channel #3 - #8 For proportional channel #3 - #8, the ranges A, B, C and D can be assigned to various functions of the SFR-1-D.
  • Page 67 Configuration - Nautic/Multiswitch If you want to use the nautic mode 1 or 2, you will first have to activate it here and connect the SFR-1-D prop. channel #5 (X2/5) or #6 (X2/6) to the receiver channel. Switch assignment Every switch position can be assigned to a function (see page 24).
  • Page 68 Double Sound Speed Controller SFR-1-D Configuration - EKMFA If you want to use EMKFA mode, you have to activate it first. The used functions for EKMFA mode (see page 33) can be configured here. Of course, you don’t have to assign every position (2 x 15 positions).
  • Page 69 Kraftwerk. The control pad channel is connected from the receiver output to channel # 5 (X2/5) or channel # 6 (X2/6) of the SFR-1-D. The control pad can trigger up to 44 functions: • 11 keys on level 1, short key press •...
  • Page 70 Double Sound Speed Controller SFR-1-D Teach-in the control pad: Before first use, the SFR-1-D must be taught-in on the control pad and the transmitter. This works as follows: 1. Connect throttle channel, steering channel and all other proportional channels you want to use to your receiver.
  • Page 71 Configuration - Outputs The colored small boxes next to each output indicate the color of the flat ribbon cable that is connected to each output at the SFR-1-D. Output type You can assign 16 switching-outputs to various output types/characteristics (see page 35).
  • Page 72 Double Sound Speed Controller SFR-1-D Configuration - Outputs - Output options If the function “Light flickering when starting“ is activated, all 16 outputs will flicker while the starting noise (coldstart or warmstart) is played. The light bulb effect can be set in 3 levels: Light, medium and strong.
  • Page 73 Double Sound Speed Controller SFR-1-D Indicator lights: The indicator can also (e.g. like in a real car) be switched off with the steering channel prop. #2. The lights flash until the steering channel returns to neutral position. The indicator light threshold determines how strong the vehicle must turn until the indicator light is activated.
  • Page 74 Double Sound Speed Controller SFR-1-D The ship light functions can be configured to detect automatically the condition of "in operation" or "at anchor" using the throttle channel #1. The condition "in operation" is automatically switched off, if the throttle channel is in neutral for a defined time. After the time has expired (1 –...
  • Page 75 Double Sound Speed Controller SFR-1-D be used, can be selected as well as the active lights in each step. An active output is indicated with a " " in the table.  For "reversing light possible", "brake light possible" and "indicator light possible"...
  • Page 76 Double Sound Speed Controller SFR-1-D Configuration - Outputs -Sequences With the SFR-1-D up to 16 outputs can be combined and activated in a defined sequence (duration and intensity). This can be parallel or in a row. In total 8 output sequences can be programmed, each with 36 steps.
  • Page 77 Double Sound Speed Controller SFR-1-D In each step you can set for each output the desired intensity. For this purpose, click with the mouse on the value that you want to change and select in the drop- down box the new value (0% - 100%).
  • Page 78 Double Sound Speed Controller SFR-1-D Output sequence 2: This example shows a simple fluorescent lighting simulation. Here is only one output used, however, the lamp switches not only on and off but it simulates the typical start of a fluorescent lamp.
  • Page 79 Configuration - Servo outputs - Servos 1 + 2 and Servo 3 + 4 Here you can configure the four servo outputs of the SFR-1-D (see page 44). If you want to use the servo outputs, you have to activate them here.
  • Page 80 Double Sound Speed Controller SFR-1-D If this option is not activated, the servo will not go back to home position during deactivation, but stays in the current position. This means, any position can be allocated to the servo. For this, the speed should be set relatively slow.
  • Page 81 Double Sound Speed Controller SFR-1-D For #1 and #2, e.g. a crane arm will turn slowly to the right and left and at positions #3 and #4 quickly. With "Speed" the acceleration (slow or fast) can be set from neutral (motor off) to the positions #1 - #4 (maximum rotation speed).
  • Page 82 Double Sound Speed Controller SFR-1-D Configuration - Servo outputs - Servos sequence 1 + 2 For both servo outputs you can program a time controlled flow sequences. A sequence may consist of up to 10 steps. For every step a servo position (1,000 - 2,000ms) must be assigned, that indicates the starting position of the servo.
  • Page 83 Double Sound Speed Controller SFR-1-D Sound at servo movement With this option the sound (additional sound) for the servo is always played as long as the servo moves. Sound when not in home position With this option, the sound will be played when the servo is not in home position (position of step 1).
  • Page 84 Double Sound Speed Controller SFR-1-D Configuration - Function sequences All functions of the SFR-1-D (see page 24) can be compiled to a timed sequence of up to 36 functions/steps. For each step a function can be selected and switched on or off. In Duration the time can be defined until the next step is activated.
  • Page 85 Double Sound Speed Controller SFR-1-D Project notes In project notes you have space for remarks about your project and settings. 01.03.2020 BEIER-Electronic...

  • Page 86: Saving Sounds And Configurations On Sd Card

    The sound module must be disconnected from the supply voltage before inserting or pulling out the SD card! 1. Pull out the SD card from the slot of the SFR-1-D. The card should be handled with care in order to prevent damage because the side with the golden contacts is very sensitive to scratches.

  • Page 87: Transferring Configurations With Data Cable K-Usb-2

    SFR-1-D can not be found with data cable If the SFR-1-D port can not be found with the data cable, check the port in the device manager. If there is a yellow warning sign a new hardware driver (Prolific) is required.

  • Page 88: Adjustments Of Driving Sound With The Driving Sound Diagram

    The range starts at 60% and goes up to 300 %. This percent refers to the play-back speed of the driving sounds (100 %) saved in the SFR-1-D slots. A higher play-back speed (e.g. 150 %) equals a higher engine speed.
  • Page 89 Double Sound Speed Controller SFR-1-D The thresholds can be adjusted with the red quadrates. As soon as the driving speed reaches the speed at the red line, a change of the driving sound takes place. Depending on the number speed steps/gears the same amount of red lines will appear.

  • Page 90: Sound Simulation

    • Button 1 - 0  Additional sound 11 - 20 Testing functions with help of data cable K-USB-2 The function “Control SFR-1-D functions with data cable” can be found under menu “Data cable”. With the help of the data cable K-USB-2, all functions can be controlled directly from the PC and not only via the remote control.

  • Page 91: Diagnosis

    Double Sound Speed Controller SFR-1-D Diagnosis A diagnosis function is integrated in the SFR-1-D to control different functions, values and features. There are two different types of diagnosis: 1. Diagnosis with datacable (live) 2. Diagnosis with SD card (recorded) The diagnosis window is divided into different areas: proportional channels, outputs, servo outputs, motor, nautic mode and others.
  • Page 92 The additional datacable K-USB-2 is needed for live-diagnosis. It is connected to X11. The brown cable points to the SD-card. A live-diagnosis using the data cable is generally only useful when the SFR-1-D in the model is completely installed; wired and all necessary equipment is switched on (e.g.
  • Page 93 Double Sound Speed Controller SFR-1-D Record diagnosis with SD card You can also record diagnosis data from the SFR-1-D to the SD card. This data can be displayed with the Sound-Teacher on the computer. Consider following points: • The must be enabled first in the Sound-Teacher.

  • Page 94: Firmware Update

    The sound-Teacher writes the firmware file automatically while saving the project data onto SD card. A firmware update of the SFR-1-D is always performed automatically when the Sound-Teacher version is different from the current version of the SFR-1-D firmware. The firmware update will be started after the supply voltage is switched on and it takes 10 seconds.

  • Page 95: Neue Sounds Am Pc Aufnehmen

    Double Sound Speed Controller SFR-1-D This part of the manual has not yet been translated into English… Neue Sounds am PC aufnehmen Auf der mitgelieferten DVD-ROM befinden sich einige Beispielsounds, mit denen Sie erste Versuche mit dem Soundfahrtregler tätigen können. Irgendwann wollen Sie sicher auch eigene Sounds auf Ihren Soundfahrtregler spielen.
  • Page 96 Double Sound Speed Controller SFR-1-D Eine weitere Möglichkeit ist das Aufnehmen von eigenen Sounds. Als Quelle können beispielsweise ein Kassettenrekorder, ein MP3-Player, eine CD/DVD, Videokamera oder ein Mikrofon dienen. Auf der mitgelieferten DVD befindet sich eine Vollversion der Software „Audacity“.
  • Page 97 Double Sound Speed Controller SFR-1-D einen Haken bei „Deaktivierte Geräte anzeigen“. Wird das verwendete Aufnahmegerät nicht angezeigt, kann eventuell ein neuer Treiber der Soundkarte Abhilfe schaffen. Stellen Sie nun wie unter Punkt 2 das Aufnahmegerät ein. c. Wenn Sie einen Sound aufnehmen möchten, der gerade auf Ihrem PC abgespielt wird (z.B.

  • Page 98: Sounddateien Konvertieren

    6. In dem Fenster „Metadaten bearbeiten“ bitte nichts in die Felder eintragen, bzw. vorhandene Werte löschen. Ansonsten können die WAV-Dateien nicht über die Sound-Simulation im Sound-Teacher abgespielt werden! 7. Nun kann die neu erstellte Datei mit Audacity weiter bearbeitet, oder direkt mit unserer Software „SFR-1-D Sound-Teacher“ geladen werden. BEIER-Electronic 01.03.2020...

  • Page 99: Sounds Am Pc Bearbeiten

    Double Sound Speed Controller SFR-1-D Sounds am PC bearbeiten Sound „verstärken“ Damit der Sound vom Soundfahrtregler auch laut genug abgespielt wird, muss der Sound auch dementsprechend ausgesteuert werden. In der Praxis hat sich gezeigt, dass ein gewisses Übersteuern die Soundqualität nicht gleich sehr verschlechtert, aber dafür die Lautstärke natürlich anhebt.
  • Page 100 Double Sound Speed Controller SFR-1-D Sound „zurechtschneiden“ Zum Erstellen von brauchbaren Geräuschen, ist es oft notwendig einzelne Teile aus der Tonspur auszuschneiden, oder zu entfernen. Dazu benötigt man: 1. Das Auswahlwerkzeug zum Markieren 2. Das Zoomwerkzeug zum Vergrößern Vorgehensweise: 1. Suchen Sie sich aus der Tonspur, mit Hilfe des Zoomwerkzeugs einen Teil aus, den Sie verwenden möchten (Linksklick hineinzoomen, Rechtsklick...
  • Page 101 Double Sound Speed Controller SFR-1-D 8. Wenn etwas gelöscht werden soll, nutzen Sie das Auswahlwerkzeug um den Teil zu markieren, der nicht mehr benötigt wird und klicken Sie im Menü „Bearbeiten“ auf „Löschen“. Einfaches Fahrgeräusch erstellen Ein „ganz einfaches“ Fahrgeräusch besteht aus einem Anlassgeräusch, der Schleife des Stand-/Fahrgeräusches und einem Abstellgeräusch.
  • Page 102 Double Sound Speed Controller SFR-1-D 5. Im linken Fenster können Sie nun den Anfang der Markierung ablesen und im rechten Fenster das Ende. Notieren Sie sich das Ende. 6. Schneiden Sie sich dann ein passendes Anlassgeräusch aus. 7. Um das Anlassgeräusch zu verbessern, kann am Anfang ein „Einblenden“...
  • Page 103 Double Sound Speed Controller SFR-1-D 12. Sie können sich die markierte Schleife als Endlosschleife anhören, indem Sie die Shift/Umschalttaste gedrückt halten und die grüne Wiedergabetaste drücken. 13. Die Schleife sollte ohne „Knacken“ und hörbare Unterschiede ineinander übergehen. Ist das nicht der Fall, so gibt es verschiedene „Tricks“ um die Schleife zu verbessern: a.
  • Page 104 Double Sound Speed Controller SFR-1-D h. Hören Sie sich die Schleife erneut an. i. Nutzen Sie das Zoomwerkzeug um „knackende Stellen“ zu finden und versuchen Sie mit Hilfe des Zeichenwerkzeugs diese zu verbessern. j. Solche Stellen können durch ruckartige Übergänge in der Tonspur...
  • Page 105 Double Sound Speed Controller SFR-1-D n. Schauen Sie sich auch den Anfang und das Ende der Schleife an und versuchen Sie mit dem Zeichenwerkzeug den Übergang zu verbessern. Bei dem linken Bild befindet sich das letzte Sample der Schleife im oberen Bereich.
  • Page 106 Double Sound Speed Controller SFR-1-D 17. Mit einem Klick auf „Projekt einpassen “ haben Sie eine bessere Übersicht. 18. Klicken Sie mit dem Auswahlwerkzeug an den Anfang des ersten Geräuschs und verwenden Sie die Wiedergabetaste um sich den Sound anzuhören.
  • Page 107 Double Sound Speed Controller SFR-1-D k. Falls nun wieder ein leichtes „Knacksen“ auftritt, beseitigt man dies am Besten erst nach dem Zusammenfügen der Tonspuren. l. Um Ihr neues Anlassgeräusch zusammenzuführen, entfernen Sie zunächst die Schleife und klicken Sie zweimal im Menü „Spuren“ auf „Spuren zusammenführen“...
  • Page 108 Double Sound Speed Controller SFR-1-D 25. Erzeugen Sie zunächst ein „Ausblenden“ am Ende des Abstellgeräusches. Die zu wählende Länge ist abhängig vom Sound. Im Beispiel wären etwa 0,5s optimal. 26. Hören Sie sich dann den Übergang vom Standgeräusch zu Abstellgeräusch 27.
  • Page 109 Double Sound Speed Controller SFR-1-D f. Hören Sie sich nun das Geräusch an g. Wenn Sie zufrieden sind, können Sie nun Ihr fertiges Abstellgeräusch zusammenfügen. Dazu entfernen Sie zunächst das Standgeräusch. h. Klicken Sie dann zweimal im Menü „Spuren“ auf „Spuren zusammenführen“...
  • Page 110 Double Sound Speed Controller SFR-1-D Damit ist die Einführung in die Soundbearbeitung mit „Audacity“ beendet. Natürlich bietet das Programm noch mehr Möglichkeiten als die hier erklärten. Wenn Sie sich dafür interessieren, dann schauen Sie bitte in die Hilfe des Programms.
