11 Installing the multisensor set

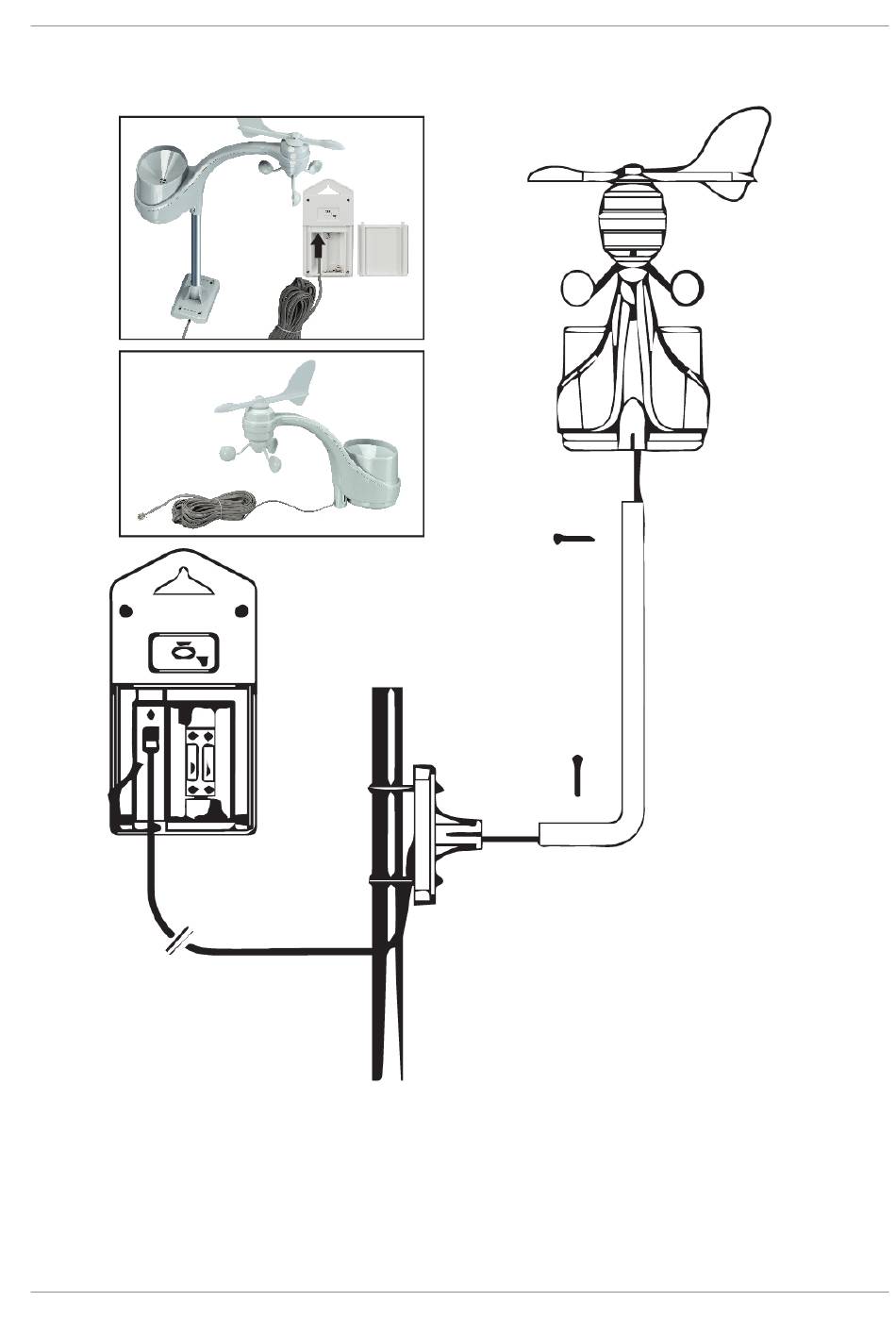

Illustration 4: Mounting example
1. Assemble the individual parts of the mounting tube.
2. Carefully run the connection cable from the windmeter / rain gauge through the mounting tube and
the mounting shoe.
3. Insert one end of the mounting tube into the opening below the windmeter / rain gauge and the
other end into the opening of the mounting shoe.
CAUTION! Make sure that the cable is not being damaged when inserting the tube!
