6 Parts overview Multisensor Set

1
2
3
4
B
13
D

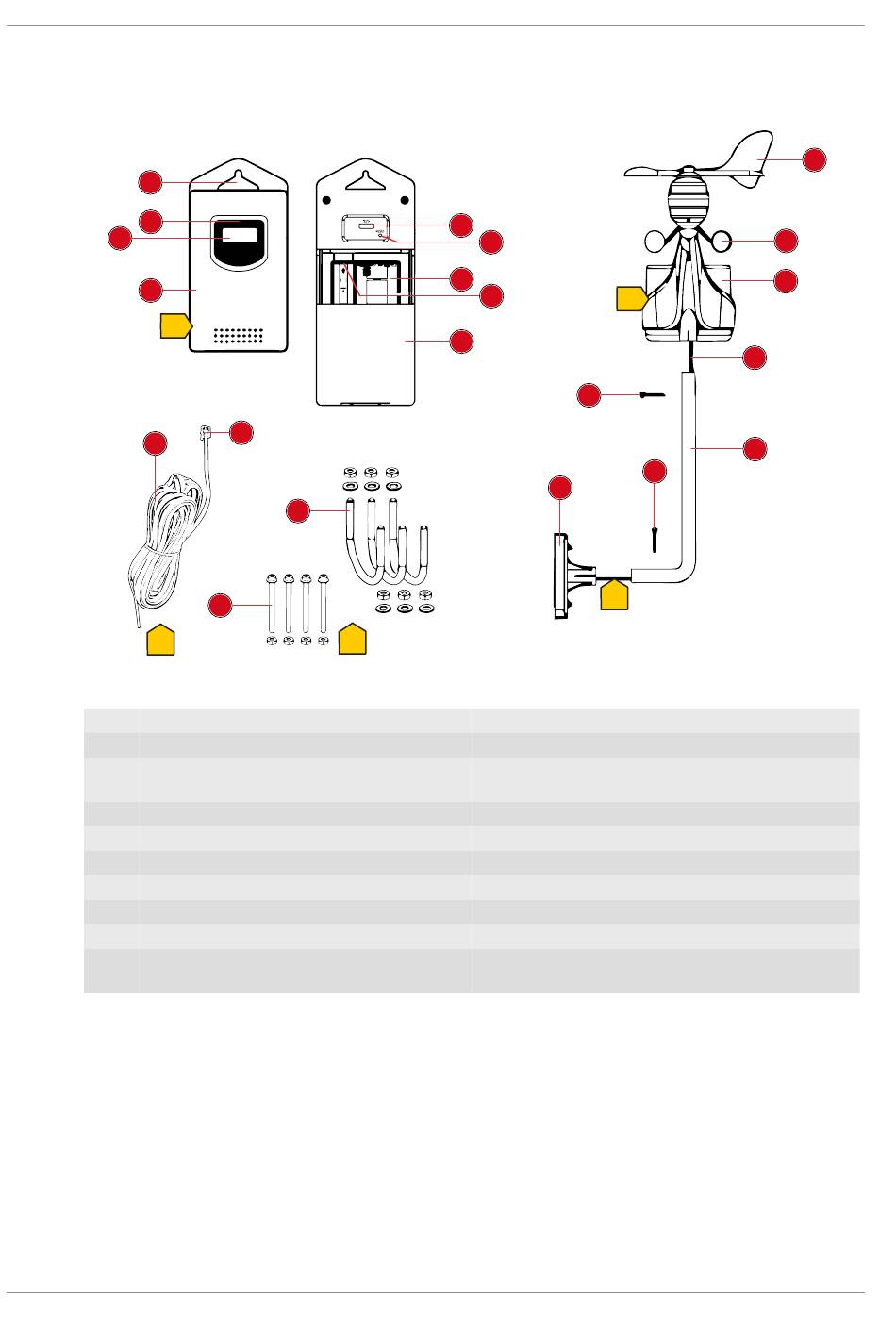

Illustration 2: Multisensor Set: Thermo-hygrometer (top left) and windmeter/rain gauge (right)
1 Wall mount fixture
3 Display
5 °C/°F button (display change between °C
or °F)
7 Battery compartment
9 Battery compartment cover
11 Wind cups
13 Connection cable with modular plug
15 Mounting shoe
17 Tube clamps
19 Modular plug for connection to the modu-
lar socket on the Base station

7 Scope of delivery

Base unit (A), thermo-hygrometer (B), windmeter/rain gauge (C), connection cable (D), mounting
utensils (E)
Also required (not included):
Station: 2 pcs. Mignon batteries (1.5V, AA type)
Sensor: 3 pcs. Mignon batteries (1.5V, AA type)
Small Phillips screwdriver
22 / 80
19
17
18
E
5
6
7
8
C
9
16
15
D
2 Signal transmission indicator
4 Housing
6 RESET button (reset all settings)
8 Modular socket
10 Wind vane
12 Rain gauge
14 Mounting tube (severeal parts)
16 Fixing screws
18 Mounting screws and nuts
10
11
12
13
14
16
