1. Product Overview

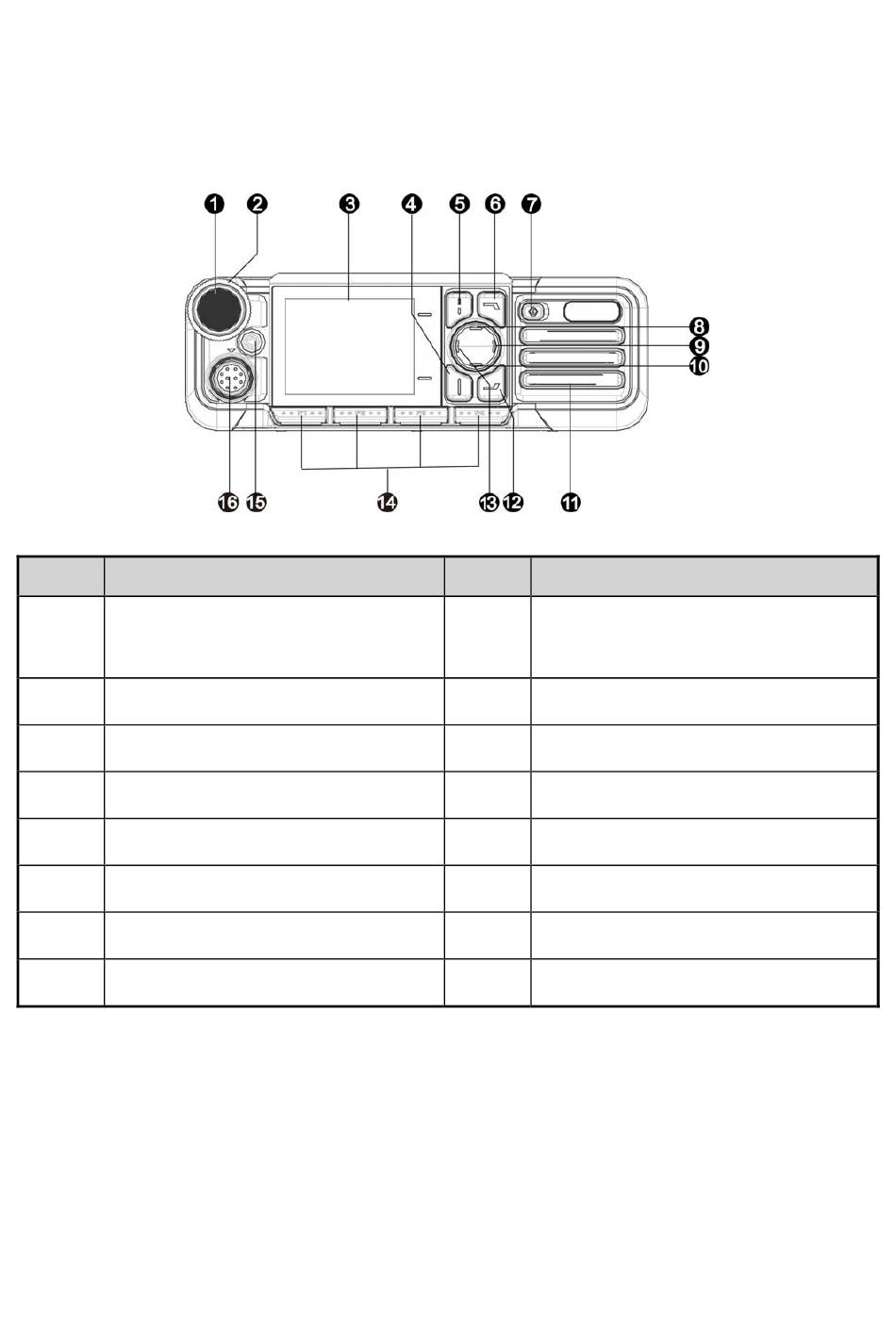

1.1 Product Layout
Front Panel
No.
Volume Control &Channel/GroupSelector
1
Knob
2
LED Indicator
3
LCD Display
4
OK/Menu Key
5
Back/Subgroup Key
6
P6/End Key
7
Power On/Off Key
8
Up Key
Part Name
No.
9
Right Key
10
Down Key
11
Speaker
12
P5/Answer Key
13
Left Key
14
P1/P2/P3/P4 (Programmable Keys)
15
Top Key (TK)
16
Aviation Connector
1
Part Name
Advertisement
Related Manuals for Hytera HM78XVHF
Summary of Contents for Hytera HM78XVHF
- Page 1 1. Product Overview 1.1 Product Layout Front Panel Part Name Part Name Volume Control &Channel/GroupSelector Right Key Knob LED Indicator Down Key LCD Display Speaker OK/Menu Key P5/Answer Key Back/Subgroup Key Left Key P6/End Key P1/P2/P3/P4 (Programmable Keys) Power On/Off Key Top Key (TK) Up Key Aviation Connector...
- Page 2 Rear Panel Part Name Part Name RF Antenna Connector GPS Antenna Connector Power Inlet Network Port Accessory connector Note The GPS antenna connector is used only by radioswith the GPS feature. Palm Microphone Note The palm microphone without keypad is available for the digital radio and the one with keypad is for the trunking radio.
- Page 3 Handset Note The handset is available only for the duplex radio. 1.2 Programmable Keys You can request your dealer to program the followingkeys as shortcuts to assignable radio features: Mobile radio: TK, P1 key, P2 key, P3 key, P4 key, P5/Answer key, and P6/End key. ...
- Page 4 Installation Instructions Before installing the radio in a vehicle, read the following instructions carefully: The radio must work with a 13.6V ± 15% negative ground electrical system only. Ensure to check the ground polarity and voltage of the vehicle power supply prior to installation. ...
- Page 5 Parts Part Name Part Name Mobile Radio Handset Locking Knobs Screw (4 mm x 16 mm) Mounting Bracket Handset Hanger Screw (4.8 mm x 20 mm) GPS Antenna Palm Microphone Power Cord (with fuse) Screw (4 mm x 16 mm) RF Antenna Microphone Hanger...
- Page 6 Note The RF antenna should be purchased separately. The GPS antenna is available only for radioswith the GPS feature. The palm microphone without keypad (with ⑥and ⑦) is available for the digital radio, and theone with keypad (with ⑥ and ⑦) is for thetrunking radio. The handset (with ⑨ and ⑩) isfor the duplex radio. Procedure Select a location, drill holes based on the shape of themounting bracket, and then use the screws (4.8 mm x20 mm) to secure the bracket.
- Page 7 ic Op peratio Turn ning th e Radi o On o or Off o turn the rad dio on, long pr ress the On-O Off key. o turn the rad dio off, press t the On-Off k key. Adju usting t the Vo lume o increase or...
- Page 8 Switching the Operation Mode The radio can operate in conventional or trunking mode.In conventional mode, you can receive and transmit voiceand data after selecting the required channel. In trunkingmode, you can receive and transmit voice and data afterthe radio registers with the base station (BS)successfully. ...
- Page 9 Selecting a Subgroup 3.4.2.2 A subgroup consists of multiple groups or private contacts. To select a subgroup, do one of the following: Press the Back/Subgroup key, and then press the Upor Down key. Press the preprogrammed Subgroup Up or Subgroup Down key.
- Page 10 Stat tus In dicati ions Chec cking L LCD Ic cons Icon Radio Status The radio de etects no signa More bars in ndicate strong ger signal stre ength. The radio op perates in low w power mode The radio op perates in high h power mod The keypad i...
- Page 11 Glows red The radio is transmitting. The radio is establishing a call in trunking mode. This indication is applicable Flashes red only to the calling radio. Conventional mode: The radio is scanning or roaming. Flashes orange slowly Trunking mode: The radio is hunting. ...
- Page 12 Call Serv vices When you are speaking du uring a call, keep themic rophone abo ut 2.5 to 5 c cm away fro om your mou uth.This ensu u res ptimal voice q quality on the e receiving ra adio. Note The radi io cannot mak...
- Page 13 Press or press s and hold the e PTT key on n the palm mi crophone or t the handset. .1.1.3 hrough M Manual D Dial Conventio onal Mod Go toCon ntact>Manua al Dial. Press on th he palmmicro ophone or the ehandset to sw witch theinpu...
- Page 14 The base s station signal l is lost. Initi iating P Private C Calls .1.4 ou can initiat e simplex or duplex calls, which can be e set by going g to Settings> >Radio Set> >Call Setup M M ode or ressing the pre eprogrammed d Call Setup...
- Page 15 runking Mode Go to Sett tings>Radio Set>Keypad dMode, and t thenselect En nable. From the h homescreen, enter thepriv vate call numb ber. Do either of the follow wings: Press on the m mobile radio. Press or press s and hold the e PTT key on the palm mic...
- Page 16 The base station signal is lost. Analog Calls In conventional mode, you can initiate or receive a call on an analog channel with or without signaling. Call Without Signaling 5.2.1 On an analog channel without signaling, you can initiate acall to all the other users on the channel. Do as follows: Select the required channel.
- Page 17 All to delete a ll messages w with the conta act. or details on more feature es and operati ions, please v visit our web bsite athttp://w www.hytera.c or scan the QR code e to ownload the r relevant user m manual.
- Page 18 Compliance with RF Exposure Standards fonctionnement Hytera's radio complies with the following RF energy exposure standards and guidelines: United States Federal Communications Commission, Code of Federal Regulations;...
