JABSCO 30296 Series Quick Start Manual

SHOWER SUMP PUMP

FEATURES

G
Multiple intake ports:
2 each: 3/4"
1 each: 1", 1-1/8" & 1-1/2"
G
Evacuates 2-3 showers simultaneously
G
Extra large strainer is easy to clean
G
Clear cover for easy inspection
G
Discharge check valve prevents back-flow

SPECIFICATIONS

Flow: Maximum 13 GPM
At 3' of head 10-1/2 GPM
At 6' of head 8 GPM
Discharge Port: 3/4"
AMP Draw: 4 maximum
Dimensions: 9-3/8" (238mm) x 11-1/4" (286mm)
including length of intake ports x
5-1/8" (130mm) high

VARIATIONS AVAILABLE

MODEL NO.
30296-2012
30296-2024

OPERATION

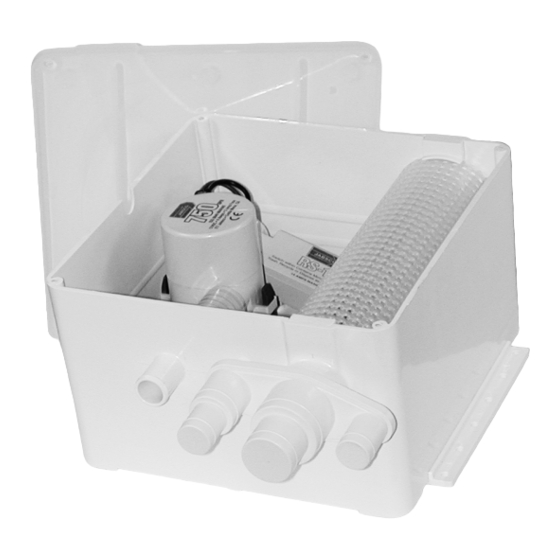

The Jabsco Shower Sump Pump consists of an automatic
float switch and powerful submersible evacuation pump
fixed inside a compact reservoir with integral, easy to
clean strainer that protects the system from debris. The
switch automatically activates the pump when water
drains in from a shower and keeps it running until the
reservoir is evacuated. The high capacity of the pump
makes the system capable of handling up to three
showers simultaneously.
DESCRIPTION
12 Volt
24 Volt
Model 30296-Series

MAINTENANCE

The Shower Sump Pump needs no regular maintenance
other than an occasional inspection and, if required, the
removal of excessive debris that may have accumulated
in the reservoir's intake strainer. Visual inspection is
easy through the reservoir's clear top cover. If excessive
amounts of debris are trapped inside the intake strainer
simply remove the four screws securing the top cover
and lift off the top. Grasp the round strainer in the middle
and compress the strainer then slide it to the center of
the reservoir (toward the pump and switch) and out of
the strainer locators on each end. Remove the debris
and rinse out the strainer. Replace the strainer in the
reservoir and reattach the reservoir's top cover.
