EchoNous Uscan Setup Manual

ECHONOUS, INC
www.echonous.com
P004040-002 Rev A
4
SETUP FOR A MOBILE STAND
CONFIGURATION
A. Insert the tablet into the Mobile Stand by
aligning the Stand's Dock Connector with
the Tablet's Dock Connector.
B. Connect the Cable to the Probe and Stand.
C. Install the DC Power Supply into the Mobile
Stand.
Note: If required install a multiple socket outlet
or a medical grade extension cable.
D. Plug the DC Power Supply into the Mobile
Stand.
E. Plug the system into an AC socket to fully
charge.
Note: To add a wireless printer, please refer to
the User Manual.
TABLET SETUP GUIDE
The Uscan is for non-invasive imaging of the human body
and is intended for the following applications: Abdominal,
Musculoskeletal, Pediatric, and Small Organ. Users must
have ultrasound training for abdominal, musculoskeletal,
pediatric, and small organ imaging.

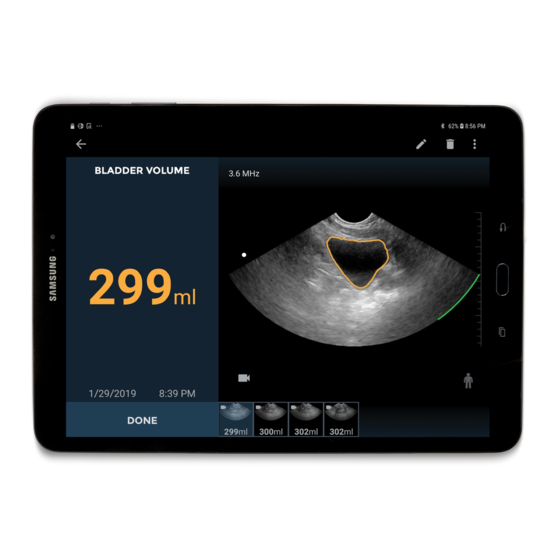

The Uscan can also be used to obtain an image of the
bladder that is used to automatically determine bladder
volume.
Refer to user manual before use.
Caution: Federal (USA) law restricts this
device to sale by or on the order of a
physician.
1
TURN THE TABLET ON
Press and hold the Power Button for about 2
seconds to turn the tablet on.
2
CONFIGURING THE TABLET
AND REGISTRATION
Follow the on-screen setup wizard to
configure the tablet.
• Select Language.
• Setup Date and Time.
• Optional (Connect to Wi-Fi). Note:
A Wi-Fi connection is required for
automatic registration and activation of
the system.
• Enter Registration Information.
