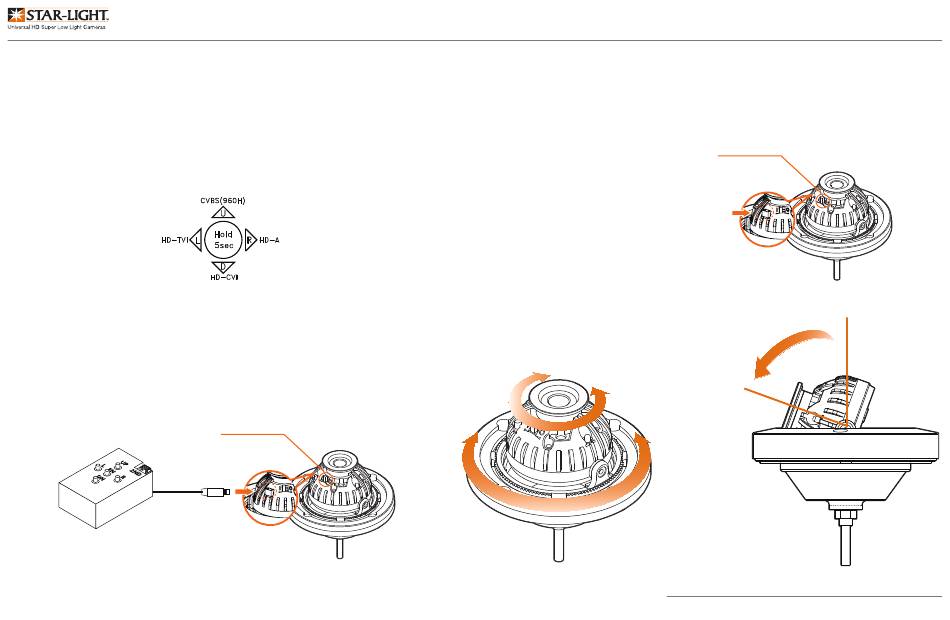

STEP 3 – CHANGING THE SIGNAL IN
THE CAMERA
1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To
switch between the signals:
a. Remove the camera's dome and connect the external controller to
the base of the camera. See the image below for more information.
b. Use the OSD Switch to switch the camera's signal.
- To switch the camera to
HD-TVI mode, press OSD
joystick to the left
for 5 seconds.
- To switch the camera to
HD-Analog mode, press OSD
joystick to the right
for 5 seconds.
- To switch the camera to CVBS
mode, press OSD joystick up
for 5 seconds.
- To switch the camera to
HD- CVI mode, press OSD
joystick down for 5 seconds.
External OSD and
signal controller
STEP 4 – INSTALLING THE CAMERA
1. Once all cables have been connected, use the screws included with the camera to properly mount and secure the camera to the mounting surface.
2. Adjust the camera's pan, tilt and position to achieve the desired view. The cameras' max angles are:
Pan: 0° ~ 360°
Tilt: 0° ~ 70°
Rotation: 0° ~ 360°
3. Once the installation is complete, remove the protective film from the camera's dome cover.
4. For DWC-MC253WTIR models, the camera has a manual IR switch,
located under the camera's lens. You can use this switch to manually
turn the IR LED board on or off according to the installation needs.
OSD board
External OSD and
signal controller
Rotation 360°
Panning 360°
Quick Start Guide
IR Switch
ON/OFF
Titling 70°
