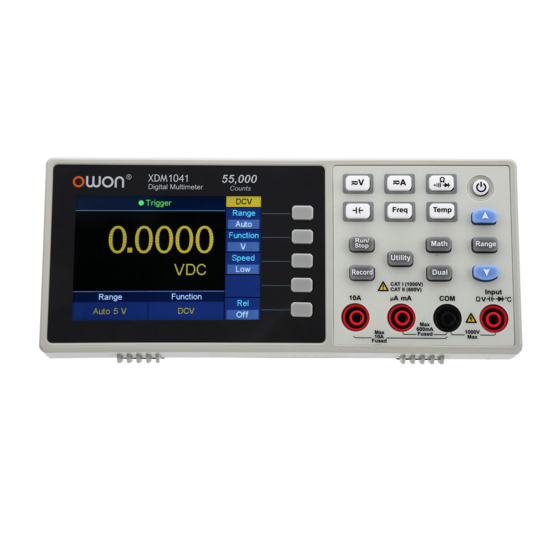

Owon XDM1041 Quick Manual
Hide thumbs Also See for XDM1041:

Advertisement

General Warranty
We warrant that the product will be free from defects in materials and workmanship
for a period of 3 years (1 year for accessories) from the date of purchase of the
product by the original purchaser from our company. This warranty only applies to
the original purchaser and is not transferable to a third party.
If the product proves defective during the warranty period, we will either repair the
defective product without charge for parts and labour, or will provide a replacement
in exchange for the defective product. Parts, modules, and replacement products
used by our company for warranty work may be new or reconditioned like new. All
replaced parts, modules and products become the property of our company.
In order to obtain service under this warranty, the customer must notify our
company of the defect before the expiration of the warranty period. Customer shall
be responsible for packaging and shipping the defective product to the designated
service centre, a copy of the customers proof of purchase is also required.
This warranty shall not apply to any defect, failure or damage caused by improper
use or improper or inadequate maintenance and care. We shall not be obligated to
furnish service under this warranty a) to repair damage resulting from attempts by
personnel other than our company representatives to install, repair or service the
product; b) to repair damage resulting from improper use or connection to
incompatible equipment; c) to repair any damage or malfunction caused by the use
of not our supplies; or d) to service a product that has been modified or integrated
with other products when the effect of such modification or integration increases
the time or difficulty of servicing the product.
Please contact the nearest Sales and Service Offices for services.
Excepting the after-sales services provided in this summary or the applicable
warranty statements, we will not offer any guarantee for maintenance declared or
hinted, including but not limited to the implied guarantee for marketability and
special-purpose acceptability. We should not take any responsibilities for any
indirect, special, or consequent damages.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XDM1041 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Owon XDM1041

  • Page 1 General Warranty We warrant that the product will be free from defects in materials and workmanship for a period of 3 years (1 year for accessories) from the date of purchase of the product by the original purchaser from our company. This warranty only applies to the original purchaser and is not transferable to a third party.
  • Page 2: Table Of Contents

    Table of Contents 1.Safety Information ...................... 1 Safety Terms and Symbols ....................1 General Safety Requirements ....................2 Measurement Limits ......................3 Main Input Terminals Measurement Limits ..................3 Current Input Terminal Measurement Limits ..................3 Measurement Category ....................... 3 2.Quick Start ........................
  • Page 3: Safety Information

    1.Safety Information 1. Safety Information Safety Terms and Symbols Safety Terms Terms in this Manual. The following terms may appear in this manual: Warning: Warning indicates the conditions or practices that could result in injury or loss of life. Caution: Caution indicates the conditions or practices that could result in damage to this product or other property.
  • Page 4: General Safety Requirements

    1.Safety Information General Safety Requirements Before any operations, please read the following safety precautions to avoid any possible bodily injury and prevent this product or any other products connected from damage. In order to avoid any contingent danger, this product is only used within the range specified.
  • Page 5: Measurement Limits

    1.Safety Information Measurement Limits The protection circuitry of the multimeter can prevent damage to the instrument and protect against the danger of electric shock, when the Measurement Limits are not exceeded. To ensure safe operation of the instrument, do not exceed the Measurement Limits shown on the front panel, it is defined as follows: Main Input Terminals Measurement Limits Input and COM Input terminals are used for voltage, resistance,...
  • Page 6 1.Safety Information Measurement CAT II applies to protect against transients from energy-consuming equipment supplied from the fixed installation, such as TVs, PCs, portable tools, and other household circuits. Measurement CAT III applies to protect against transients in equipment in fixed equipment installations, such as distribution panels, feeders and short branch circuits, and lighting systems in large buildings.
  • Page 7: Quick Start

    2.Quick Start 2. Quick Start General Inspection After you get a new multimeter, it is recommended that you should make a check on the instrument according to the following steps: 1. Check whether there is any damage caused by transportation. If it is found that the packaging carton or the foamed plastic protection cushion has suffered serious damage, do not throw it away first till the complete device and its accessories succeed in the electrical and mechanical property tests.
  • Page 8: Foot Stool Adjustment

    2.Quick Start 86.5 mm 64 mm Foot Stool Adjustment Unfold the foot stool on the bottom of the multimeter. Front Panel Overview Figure 2-1 Front panel overview Item Name Description Display the user interface Menu selection Activate the corresponding menu Keys...
  • Page 9 2.Quick Start Measurement DC or AC voltage measurements Function Keys DC or AC current measurements Resistance, continuity, and diode measurements Capacitance measurements Frequency/Period measurements Temperature measurements Power button Turn on/off the multimeter. Range/Direction Keys When the Range softkey is shown on the right menu, you can press the key to switch between auto and manual range.
  • Page 10: Rear Panel Overview

    2.Quick Start Rear Panel Overview Figure 2-2 Rear panel overview(Take the -R model for instance) Item Name Description -R models can be connected to a computer through a serial port; Communication int -U model can be connected to the computer via USB Device. erface Line Fuse The fuse rating is...
  • Page 11: Power On

    2.Quick Start Primary function reading Secondary function Primary function Figure 2-4 User interface (Dual display) Power On (1) Connect the instrument to the AC supply using the supplied power cord. Warning: To avoid electric shock, the instrument must be grounded properly. (2) Press down the power button at the front panel, the screen shows the boot screen.
  • Page 12: Measurement Connections

    2.Quick Start Measurement Connections After selecting the desired measurement function, please connect the signal (device) under test to the multimeter according to the method below. To avoid instrument damage, do not discretionarily switch the measurement function when measuring. DC Voltage Measurement AC Voltage Measurement AC Voltage DC Voltage...
  • Page 13 2.Quick Start Continuity Test Resistance Measurement Open or Closed Circuit Resistance Diode Measurement Capacitance Measurement Capacitance Forward Bias Frequency/Period Measurement Temperature Measurement Temp AC Signal Transducer...
  • Page 14: Data Record Function

    2.Quick Start Data Record Function Data record function includes manual record and auto record. You can use any or both functions to record the data. Manual and automatic records share a table of data stored in internal storage. The maximum number of recorded points is 1000. After collecting the data, it can be exported to the computer.
  • Page 15 2.Quick Start 1 to 1000. Press the Interval softkey to specify the time interval between readings. The range is 15 ms to 9999.999 s. 2. Record data: Press the Start softkey to start auto record. The icon will show up on the top of the display.
  • Page 16: Troubleshooting

    3.Troubleshooting 3. Troubleshooting 1. The instrument is powered on but no Display. 1) Check if the power is connected properly. 2) Check if the line fuse which is below the AC Mains Input is used appropriately and in good condition (see page 15, Appendix C: Line Fuse Replacement). 3) Restart the instrument after the steps above.
  • Page 17: Appendix

    4.Appendix 4. Appendix Appendix A: Enclosure Standard Accessories (subject to final delivery): Spare Fuse Crocodile clip Test lead Power Cord Quick Guide Appendix B: General Care and Cleaning General Care Do not store or leave the instrument where the liquid crystal display will be exposed to direct sunlight for long periods of time.
  • Page 18 4.Appendix Warning: Disconnect the line cord at the rear panel and remove all test leads connected to the instrument before replacing the line fuse. Failure to do so could expose the operator to hazardous voltages that could result in personal injury or death. Use only the correct fuse type.
