Elkron FAP54 Installation Manual

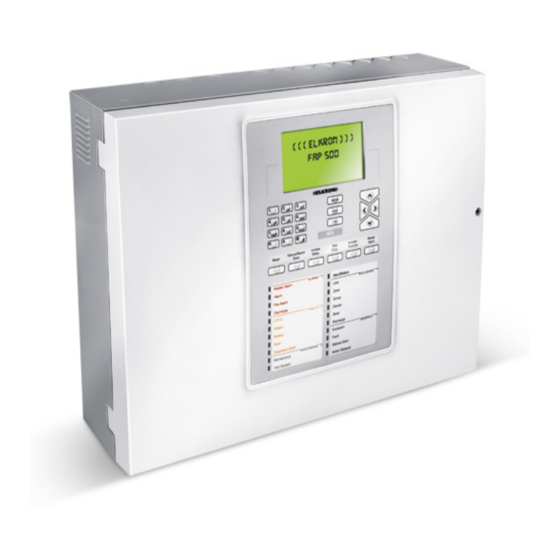

Multiprocessor modular control panel for fire detection
Hide thumbs
Also See for FAP54:
- Programming manual (152 pages) ,
- User manual (28 pages) ,
- Programming manual (144 pages)
Subscribe to Our Youtube Channel
Related Manuals for Elkron FAP54
Summary of Contents for Elkron FAP54
- Page 1 FAP54 Multiprocessor modular control panel for fire detection 00 51 DS80SC61-002I LBT80099...
- Page 2 Elkron is a trademark of URMET S.p.A. All trademarks mentioned in this document belong to the corresponding owners. All rights reserved. The total or partial reproduction of this document is authorised only for installation purposes of the FAP54 System. Tel. +39 011.3986711 – Fax +39 011.3986703 www.elkron.com –...
-
Page 3: Table Of Contents
FAP ELECTRICAL SPECIFICATIONS ..........................16 FAP54 CPU BOARD ................................17 FAP54 CONTROL AND COMMAND BOARD ........................18 EXAMPLES OF FAP54 TERMINAL BOARD CONNECTION ..................... 19 FAP54 BATTERY CHARGER BOARD ..........................20 3.10 FA128 LINE MODULE ................................. 21 3.11 CE LABELS ..................................22 DETECTION LINES ................................... -
Page 4: General Safety Rules
Do not try to change battery wiring or connectors. These operations can cause injuries 1.1.4 Battery disposal Lead batteries contain harmful substances! At the end of their life cycle they shall not be disposed of with common waste, but delivered to an authorized recycling and disposal centre. FAP54 Installation... -
Page 5: Sicurezza Product Safety
1.4 DECLARATION OF THE MANUFACTURER The control panel described in this manual has been developed according to the quality, reliability and performance criteria used by ELKRON. Every component can operate according to the EN54-2 and EN54-4 standards. 1.5 LIST OF OPTIONS WITH REQUIREMENTS... -
Page 6: Fap54 Overall Dimensions
2 FAP54 OVERALL DIMENSIONS Figure 1 - Internal view and hole template for fastening to the wall FAP54 Installation... -
Page 7: Fastening The Fap Control Panel To The Wall
• Be of VRLA (Valve Regulated Lead Acid) type • Have a case with UL94V-1 or better flame rating • Be compliant with IEC 60896-21:2004, IEC 60869-22:2004 standards The batteries replacement must be performed on by qualified personnel. FAP54 Installation... -
Page 8: Layout Of Fap54-01 Internal Modules
2.5 LAYOUT OF FAP54-01 INTERNAL MODULES FAP54 Installation... -
Page 9: Layout Of Fap54-04 Internal Modules
2.6 LAYOUT OF FAP54-04 INTERNAL MODULES FAP54 Installation... -
Page 10: Layout Of Fap54-08 Internal Modules
2.7 LAYOUT OF FAP54-08 INTERNAL MODULES FAP54 Installation... -
Page 11: Layout Of Fap54-16 Internal Modules
2.8 LAYOUT OF FAP54-16 INTERNAL MODULES FAP54 Installation... -
Page 12: Fap54 Components
3 FAP54 COMPONENTS 3.1 FRONT PANEL OF FAP541 FAP54 Installation... -
Page 13: Front Panel Of Fap544 - Fap548 - Fap5416
3.2 FRONT PANEL OF FAP544 - FAP548 - FAP5416 The front panel contains the following components • display • alphanumeric keypad • keys • LEDs FAP54 Installation... -
Page 14: Keypad
Key confirming the data entry. 3.4 LED INDICATORS ON THE FRONT PANEL FIRE ALARM MAIN/BATTERY MASTER ALARM LINE MODEM ACTIVE ZONE MODEM STATE GROUP GENERAL DEVICE SYSTEM SIREN BATTERY DISCHARGE SIREN EXCLUSION EARTH REMOTE DEVICE MAINTENANCE SILENCE SIREN TEST SYSTEM ACTION DELAYED FAP54 Installation... - Page 15 SILENCE SIREN key. When ON, it indicates that the timer of a zone or group in time mode is running or has expired and the zone or group has ACTION DELAYED YELLOW undergone an alarm condition. FAP54 Installation...
-
Page 16: Fap Electrical Specifications
LAN: Ethernet (10/100 Mbit , RJ45 connector) optional MODEM: Modem PSTN/GSM optional KEYBOARD: Connector for PS2 keyboard REMOTE PANEL: Terminal blocks for connection to a 1043/534 remote panel Symbol Meaning Direct current voltage Refer to the installation manual FAP54 Installation... -
Page 17: Fap54 Cpu Board
3.6 FAP54 CPU BOARD NOTES The following (optional) modules are not covered by the EN54-2 standard: • MODEM MODULES: MPSTN500 (PSTN) and MGSM500 (GSM) • LAN MODULE: LAN/TCP/IP500 • 232/485 MODULE: RS232/RS485 • IT USB/KEY MODULE: for connection (via JP17) with external mass storage USB key... -
Page 18: Fap54 Control And Command Board
3.7 FAP54 CONTROL AND COMMAND BOARD NOTES • C NO NC are meant to be idle NOT armed. • The fault relay is normally energized when the control panel is powered on, in case of fault the relay is released. -
Page 19: Examples Of Fap54 Terminal Board Connection
3.8 EXAMPLES OF FAP54 TERMINAL BOARD CONNECTION NOTES • If the siren output is used, always connect a 3300Ω line end resistor on the last siren. • If no siren output is used, connect a 3300Ω resistor with the siren output terminals on the control and command board. -
Page 20: Fap54 Battery Charger Board
3.9 FAP54 BATTERY CHARGER BOARD The battery charger board of FAP control panels handles the recharge of two lead acid batteries connected in series. As to performance, it complies with EN54-4. NOTE: in case of connection of additional power supply units, connect the negative terminal of the additional power supply unit with the negative terminal of the control panel power supply unit. -
Page 21: Fa128 Line Module
The FA128 line module can be acquired separately to expand the number of lines of the following control panels: FAP54-04, FAP54-08, FAP54-16. It can be inserted in any free slot of the Backplane and its configuration is completely automatic without the need to set the address. -
Page 22: Ce Labels
8.3 Fault signals from points 8.3 Fault signals from points 8.9 Output to fault warning routing equipment 8.9 Output to fault warning routing equipment 9.5 Disablement of addressable points 9.5 Disablement of addressable points Test condition Test condition FAP54 Installation... -
Page 23: Detection Lines
4 DETECTION LINES 4.1 LOOP LINE CONNECTION - CLASS A Shield to be connected to earth on the control panel Figure 2 - Device connection on loop line class A FAP54 Installation... -
Page 24: Operation And Characteristics Of Connection With Class A
Max loop line total length: 2000 m • Cable total resistance: less than 100 Ω To find out the line cable resistance, short circuit one end of the two wires and measure the opposite end with an ohmmeter. FAP54 Installation... -
Page 25: Open Line Connection - Class B
The picture on the left shows a series type connection. The picture on the right shows a parallel type connection. Note that the execution of autoaddressing procedures on series type connections guarantees the assignment of consecutive addresses to the points. FAP54 Installation... -
Page 26: Operation And Characteristics Of Connection With Class B
• Connect the wires and the line cable shield with the control panel terminals and the earth connection point. NOTE: the connection of the line cable shield with the earth point shall be carried out in the control panel and only with a cable end. FAP54 Installation... -
Page 27: Addressing
5 ADDRESSING FAP54 control panels can manage up to 128 devices for each detection line. The devices can be addressed in manual mode or in a completely automatic mode. In case of manual addressing, the following constrains are applied: •... - Page 28 16 circuits) according to the following rules: The configuration is represented by symbol C, which can be: | = open circuit configuration o = loop circuit configuration XX is the circuit number FAP54 Installation...
- Page 29 The menu above gives the user the possibility to choose whether to carry out these association cancellation/update operations. The circuit initialization carried out on a pre-existing configuration, therefore, can change the type of the devices already present. FAP54 Installation...
-
Page 30: Configure Single Circuit
For the auto-addressed mode the same considerations made in the case of configuration of all the circuits can be applied. The user will be asked for a further confirmation before proceeding: WARNING! THIS PROCEDURE AFFECTS THE ADDRESSES OF THE DEVICES [OK] CONTINUE [ESC] BACK FAP54 Installation... - Page 31 By pressing ESC, the procedure is interrupted and the control panel cancels the circuit configuration. Cancellation is due to the fact that the walk addressing mode changes the addresses of the devices in the field which now are misaligned with a possible old configuration potentially restorable by the control panel. FAP54 Installation...
- Page 32 If an error related to the detection line (concerning specifically the field) occurs , the following message is displayed (please, refer to appendix 3 for further details): FAULT ON CIRCUIT: XX BMP1: 01234567 BMP2: 01234567 ----**-- *-*----- TYPE: XXXX A = D--- B = D--- FAP54 Installation...
- Page 33 Therefore, if the user interrupts the initialization procedure in auto-addressed or walk- addressing mode, any configuration stored in the module before the start of initialization procedure will be lost. The above operations will be carried out as well on modules where the procedure has been terminated with errors. FAP54 Installation...
-
Page 34: Appendixes
Module not usable because of a serious line fault (e.g. short circuit, overload) Fault in the module transmitter Fault in the module transmitter Data memory corrupted (1) System memory corrupted (1) System memory corrupted (1) Code memory corrupted Non volatile memory corrupted (1) (1) Please, contact the ELKRON Customer Service. FAP54 Installation... -
Page 35: Appendix 2: Procedure Error Codes
A voltage on LB terminals has been detected at the beginning of the initialization procedure; this voltage is probably due to an unwanted connection between line LA and line LB (please, note that it is necessary to place at least one point in series between LA and LB). FAP54 Installation... - Page 36 Update open mode initialization: lack of 4 consecutive addresses to assign to a multiple I/O module. Update open mode initialization: missing answer from a point with valid (1–128) address. The module could not communicate with the point: check the electrical connections. FAP54 Installation...
- Page 37 LA and line LB. Search open loop: line fault (overload / short circuit) after point addressing or acquisition. Check the electrical connections after the just addressed/acquired point. Search open loop: missing communication with the point. Check the electrical connections. FAP54 Installation...
-
Page 38: Appendix 3: Circuit Fault Bitmaps
A = D --- and B = D - - -, which indicate: the address involved in the fault in case of open configuration the physical position of the point involved in the fault in case of loop configuration FAP54 Installation... - Page 39 FAP54 Installation...
- Page 40 ELKRON URMET S.p.A. Tel. +39 011.3986711 - Fax +39 011.3986703 Via Bologna, 188/C - 10154 Torino (TO) – Italy Milano: Tel. +39 02.334491- Fax +39 02.33449213 www.urmet.com www.elkron.com – mail to: info@elkron.it MADE IN ITALY FAP54 Installation...
