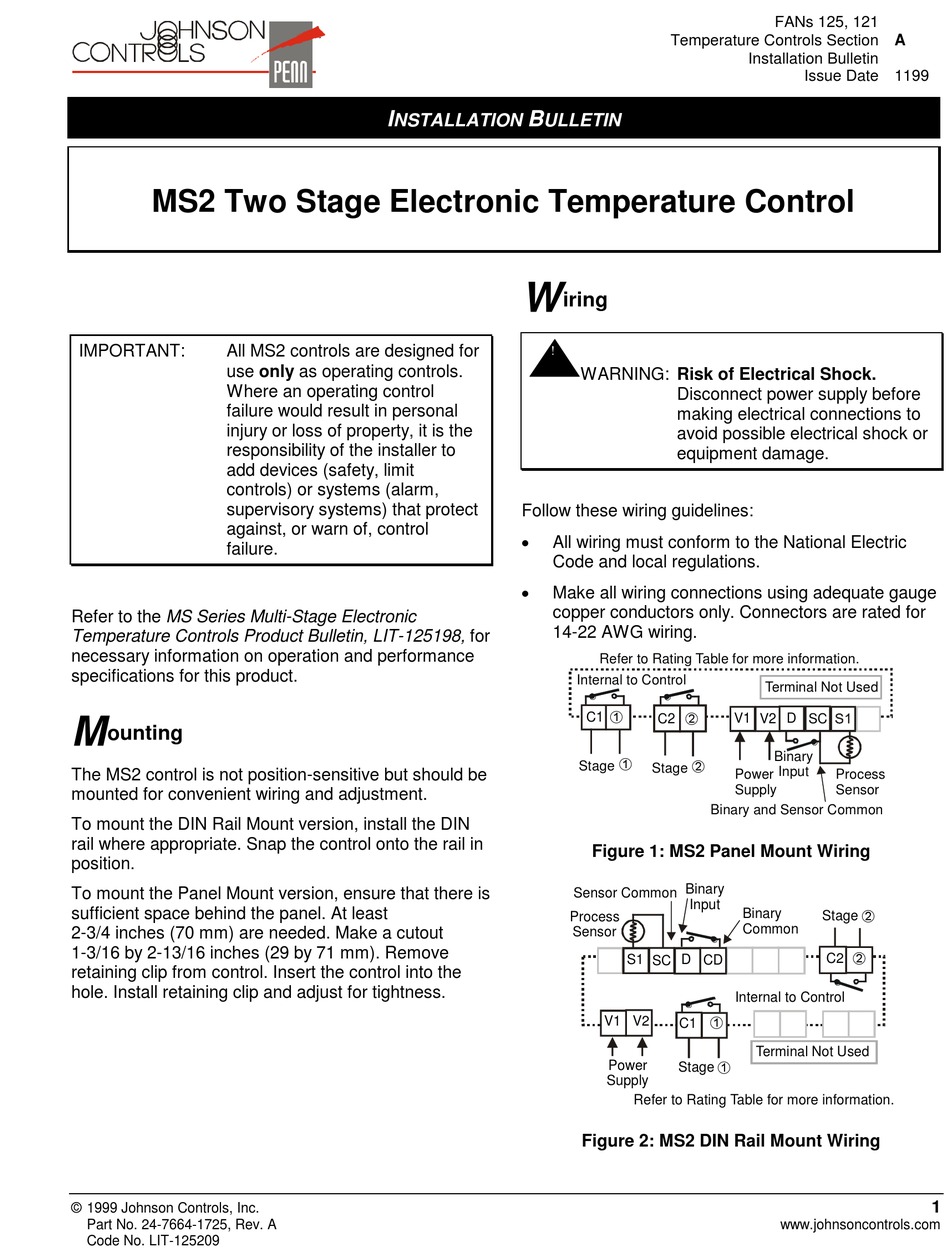

MS2 Two Stage Electronic Temperature Control
IMPORTANT:
All MS2 controls are designed for
use only as operating controls.
Where an operating control
failure would result in personal
injury or loss of property, it is the
responsibility of the installer to
add devices (safety, limit
controls) or systems (alarm,
supervisory systems) that protect
against, or warn of, control
failure.
Refer to the MS Series Multi-Stage Electronic
Temperature Controls Product Bulletin, LIT-125198, for
necessary information on operation and performance
specifications for this product.
M
ounting
The MS2 control is not position-sensitive but should be
mounted for convenient wiring and adjustment.
To mount the DIN Rail Mount version, install the DIN
rail where appropriate. Snap the control onto the rail in
position.
To mount the Panel Mount version, ensure that there is
sufficient space behind the panel. At least
2-3/4 inches (70 mm) are needed. Make a cutout
1-3/16 by 2-13/16 inches (29 by 71 mm). Remove
retaining clip from control. Insert the control into the
hole. Install retaining clip and adjust for tightness.
© 1999 Johnson Controls, Inc.
Part No. 24-7664-1725, Rev. A
Code No. LIT-125209
I
B
NSTALLATION
ULLETIN
W
iring
!
Follow these wiring guidelines:
All wiring must conform to the National Electric
Code and local regulations.
Make all wiring connections using adequate gauge
copper conductors only. Connectors are rated for
14-22 AWG wiring.
Temperature Controls Section A
Installation Bulletin
WARNING: Risk of Electrical Shock.
Disconnect power supply before
making electrical connections to
avoid possible electrical shock or
equipment damage.
Refer to Rating Table for more information.
Internal to Control
C1
V1 V2
C2
Stage
Stage
Power
Supply
Binary and Sensor Common
Figure 1: MS2 Panel Mount Wiring
Binary
Sensor Common
Input
Binary
Process
Common
Sensor
S1
SC
D
CD
Internal to Control
V1 V2
C1
Power
Stage
Supply
Refer to Rating Table for more information.
Figure 2: MS2 DIN Rail Mount Wiring
FANs 125, 121
Issue Date 1199
Terminal Not Used
D
SC
Binary
Input
Process
Sensor
Stage
C2
Terminal Not Used
1
www.johnsoncontrols.com
