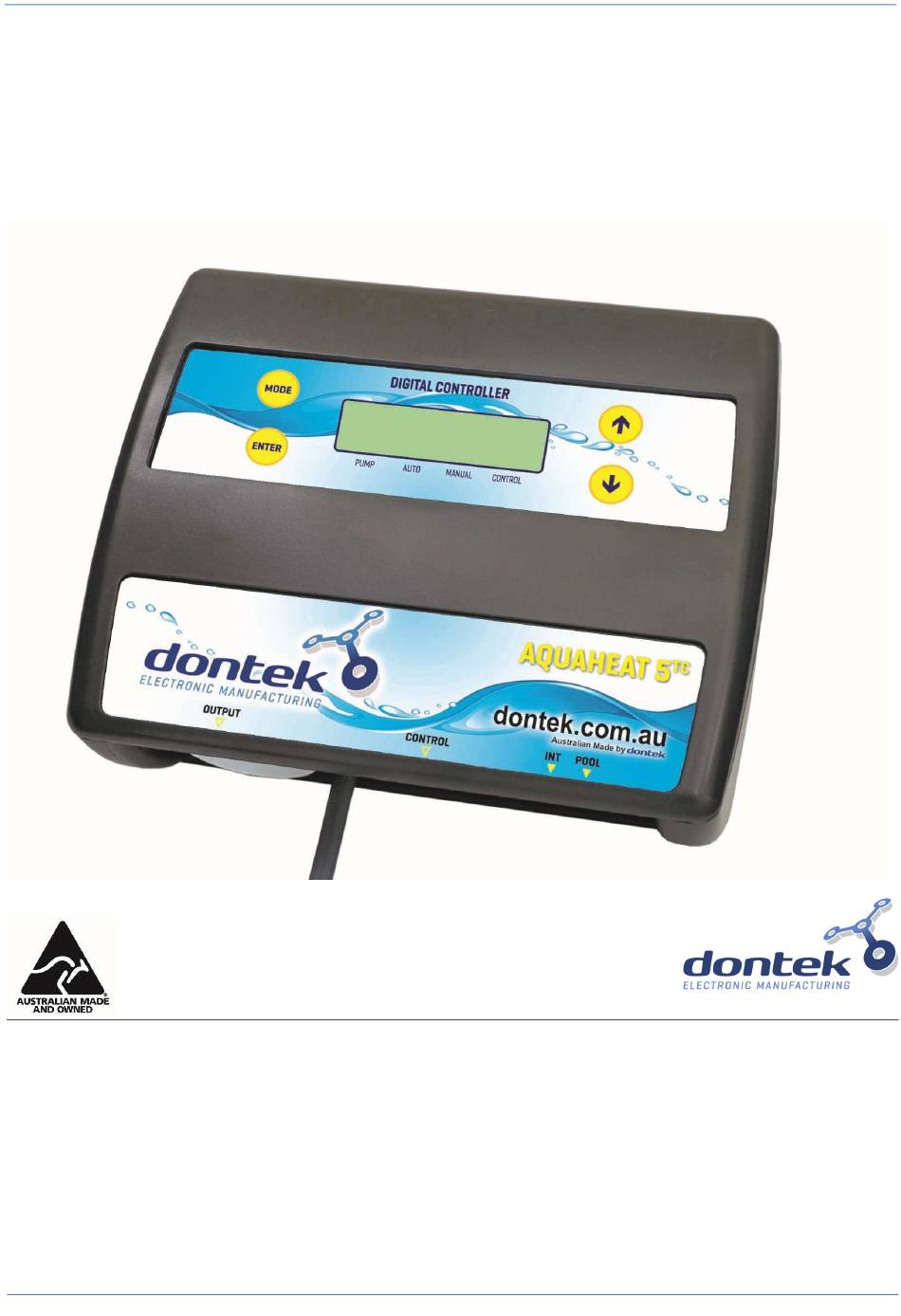

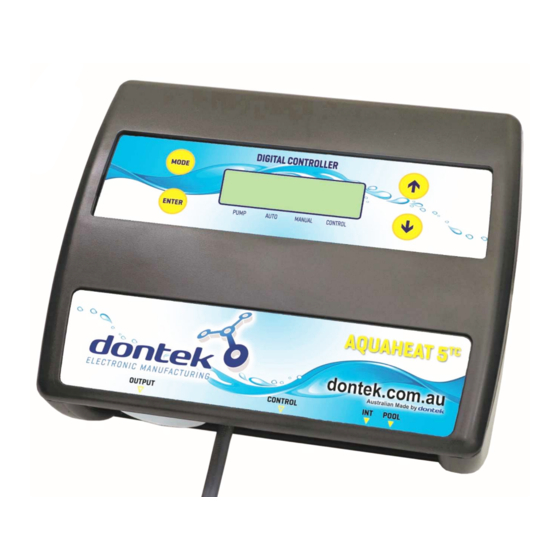

AQUAHEAT H5TC
Instruction Manual
DESCRIPTION
The H5TC Controller is designed to switch a 240Vac pump and control a heater via a relay contact rated to
5A @ 24Vac. This unit is designed to be connected to a Chlorinator output via a secondary power lead
(Black). When the chlorinator output is turned on, the H5TC switches on the pump and the heater is turned
on. This is dependent on the heating times and temperature limits as set on the H5TC.
When the chlorinator turns off, the H5TC continues to operate to meet its own heating times &
temperature limits. If the temperature limit is reached or if outside of heating times, the heater is
switched off. A heater cool-down continues to operate the pump for an adjustable period and if the
chlorinator is not currently active, the unit will stop the pump and start an adjustable sample wait period.
The H5TC is fitted with an LCD screen which displays
whether
the pump or heater is on or off, when it
AQUAHEAT H5TC v1.0
