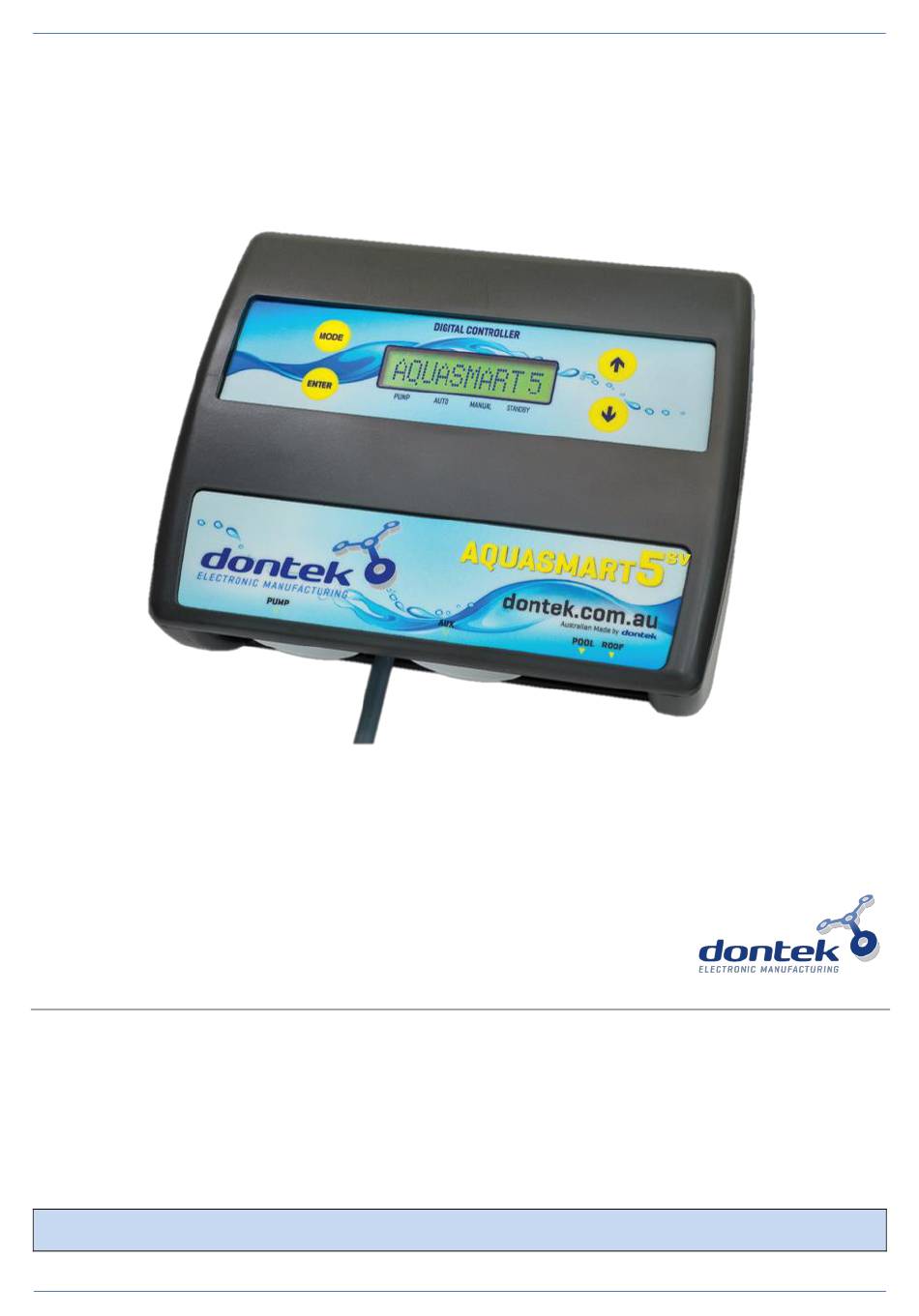

AQUASMART 5 SV
Instruction Manual
DESCRIPTION

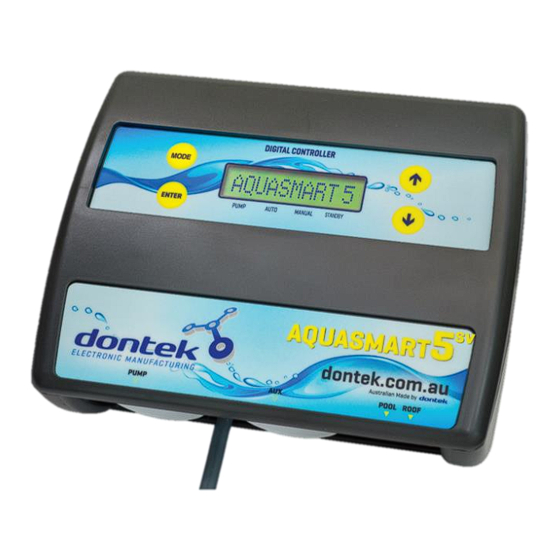

The Aquasmart5-SV is a controller for heating of a swimming pool with a solar collector and a heat pump or
gas heater. The PUMP socket is controlled for heating purposes and the SOLAR is unused (However a Solar
boost pump may be used via this socket). A 3-way automatic valve actuator is used to bypass or select the
solar collector. An interlock cable controls the heat-pump or gas heater.
AQUASMART 5 SV v1.4
See Installer Setup to set the Circulation pump load settings.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUASMART 5 SV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dontek AQUASMART 5 SV

Summary of Contents for Dontek AQUASMART 5 SV

  • Page 1 A 3-way automatic valve actuator is used to bypass or select the solar collector. An interlock cable controls the heat-pump or gas heater. See Installer Setup to set the Circulation pump load settings. AQUASMART 5 SV v1.4...

  • Page 2: Installation Instructions

    (Red, Black then White). Red and white are for direction control and black is VALVE the common. Ensure the switch on the valve actuator is in an ON position. Refer to the valve actuator instructions for mounting requirements cam adjustments. Maximum power for the VALVE output is 24VAC. AQUASMART 5 SV v1.4...

  • Page 3: Base Plate

    PVC pipe, not the top of the pipe where water will collect. This can be carried out using a Dontek PD01 grinding drill or a pilot hole drilled, then a 14.0mm drill-bit spinning in a counter clockwise direction to minimize the chance of POOL shattering pipe.

  • Page 4: Plumbing Configuration

    FACE PLATE PLUMBING CONFIGURATION Roof Sensor Solar Collector CONFIGURATION AS5 SV Heater (Parallel) 3 Way Valve & Actuator Valve Required if Heater is fitted. Heater Inline Circulation Pump Pool Sensor POOL AQUASMART 5 SV v1.4...
  • Page 5 If the controller is manually put into STANDBY MODE using the Mode button, you will need to reset your AUX Heating settings to be ON and set the required temperature when the controller put back into HEATING MODE. This does not apply when using Auto Standby Mode. AQUASMART 5 SV v1.4...
  • Page 6 SET CLOCK – Allows you to adjust calendar date and time of day. 3) SYSTEM LCD BACKLIGHT – Adjust the number of seconds the backlight remains on after the time a button was pressed. (Select NONE for always on.) AQUASMART 5 SV v1.4...

  • Page 7: Installer Setup

    GAS HEATER / ELECTRIC HEATER This setting lets you to select the type of Auxiliary Heater used. Electric heaters/ Heat HEATER TYPE? pumps require no cool down. If GAS HEATER is selected the following will be displayed: AQUASMART 5 SV v1.4...
  • Page 8 15% lower than displayed LOAD value. Note – SET MAN is usually the best option when setting the pump load settings for a variable speed pump as the load value can fluctuate more. AQUASMART 5 SV v1.4...

  • Page 9: Pipe Protection

    5. MAX combined rated output load for the 240V socket(s) is 9.98 Amps / 2395 Watts. 6. Degree of protection against moisture: IP33. 7. Store pool chemicals safely, at least 3 metres away from all pool equipment. AQUASMART 5 SV v1.4...

  • Page 10: Troubleshooting

    If the pump is plugged into the controller and won’t stop, check to see what is displayed on the controller screen. The controller may be running for heating purposes. If the pump is still running, and the controller states that nothing should be running, your controller requires repair. AQUASMART 5 SV v1.4...
  • Page 11 If the above all checks out, then you controller needs repair. FACTORY RESET: Hold down ENTER when power is off, hold down after powering up, releasing after 5 seconds. Dontek Electronics Pty Ltd PO Box 239, Bayswater VIC 3153 Australia Phone: +613 9762 8800 Email: sales@dontek.com.au AQUASMART 5 SV v1.4...

  • Page 12: Warranty

    (To be retained by the customer) CUSTOMER RECORD DEALER/INSTALLER NAME SERIAL NUMBER DATE INSTALLED For service assistance visit www.dontek.com.au Dontek Electronics Pty Ltd PO Box 239, Bayswater VIC 3153 Australia Phone: +613 9762 8800 Email: sales@dontek.com.au AQUASMART 5 SV v1.4...
