Dontek H3BR Manual

This range of product is covered by a limited 2 year warranty against component
failure or faulty workmanship from the date of installation.
A faulty unit should be returned in the first instance to the dealer from which
the unit was purchased.
Damage to the unit due to misuse, power surges, lightning strikes or
installation that is not in accordance with the manufacturer's instruction
may void the warranty.
Warranty does not cover travel costs to or from installation site.
If the power cord is damaged, do not use the controller; return the unit to the
supplier for repair.
Customer Record. (To be retained by the customer)
Dealer/Installer Name _____________________________________
Serial Number _____________________________________
Date Installed _____________________________________
For service assistance phone 1300 130 693
H3BR_Instructions_rA1.doc
WARRANTY
P.O. Box 239
Bayswater
Victoria 3153
www.dontek.com.au
H3BR Controller
Description:

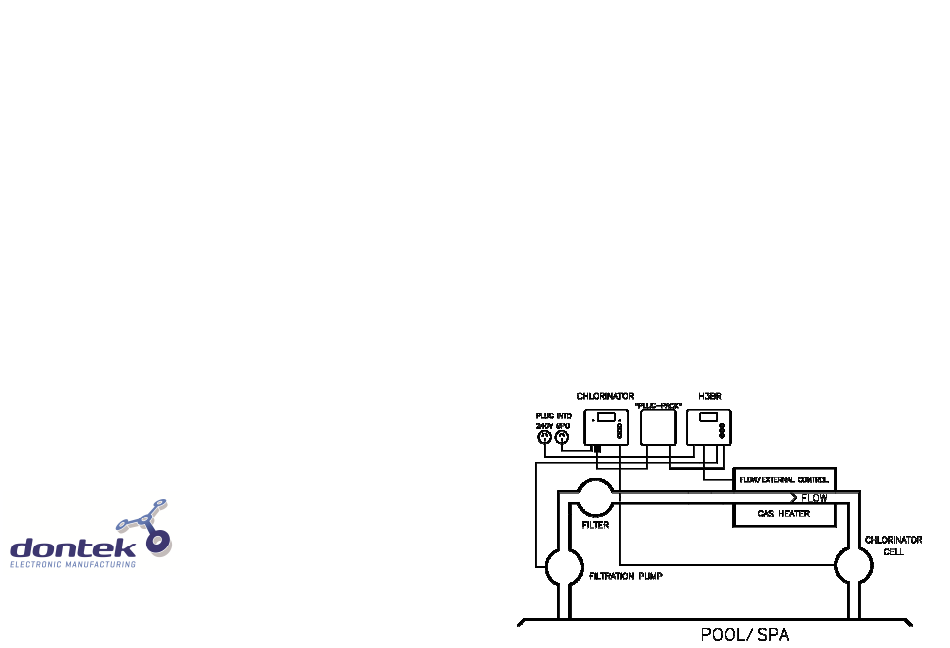

The H3BR controller will operate a pump and heater from a chlorinator time-
clock. A heater cool-down is performed when the chlorinator output switches
off.
Operation:
The H3BR Controller operates a 240V AC pump rated to 10 Amps 2400 watts
and is connected to a Chlorinator output. When the chlorinator output switches
on, the H3BR switches on the pump and heater. When the chlorinator switches
its output off, the H3BR stops heating but continues to run the pump for 5
minutes to cool down the heater. The H3BR is fitted with an LCD screen which
displays whether the pump or heater is on or off and displays 'cooldown' when
the pump is running with the heater switched off.
Controller Mounting:
Find a suitable location to mount the control box. Ideally, as with all pool
equipment, it should be installed out of direct weather and no closer than 3
meters from the water's edge. Lift up the two mounting tabs and use two
appropriate screws to mount the control box to the wall, keeping in mind that
the power cable is 1.8m long and should be plugged directly into a general
power outlet, and not into an extension lead.
