Best PIK33 Specification Sheet

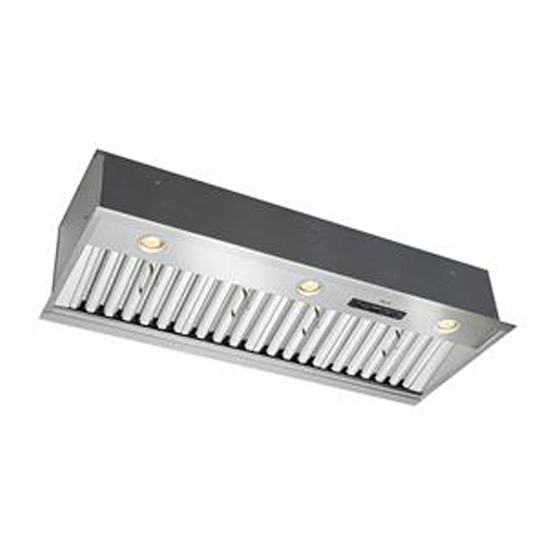

PIK SERIES
INSERT
Especially designed to be installed in custom hood
for use over residential commercial-style cooking
surfaces.
FEATURES
• Cabinet mount _ custom application
•
Widths: 33'', 45''
• Halogen lighting (33'' _ 2 x 50 watt; 45'' _ 3 x 50 watt GU10)
Lamps included
•
Slide controls: Lighting, on-off, infinite speed
•
Easily accessible, dishwasher-safe stainless steel
baffle filters
•
Heat Sentry™ turns blower ON to HIGH speed when
excess heat is detected
OPTIONS
•
Custom hood liners (L33 or L45 Series):
Widths - 36'', 42'', 48'', 54" and 60''
Adjustable depth - see liner spec. sheet for details
Stainless Steel construction - protects custom hood
base
and wipes clean easily
•
Ambient light panel (ALP Series) for L Series custom
hood liners (Halogen lighting: 36'' and 42'' _ 2 x 50 watt;
48", 54" and 60" _ 3 x 50 watt GU10) Lamps included
•
Backsplash (RMP Series):
Widths - 36", 42", 48", 60"
Stainless Steel construction - protects back wall
and wipes clean easily
•
WCPI Remote control: With Stainless Steel faceplate,
to fit any décor.
INSERT SPECIFICATIONS
120 vAC, 60 Hz
Amps (without blower) 0.8 (PIK33), 1.3 (PIK45)
Best
Best
REFERENCE QTY.
Hartford, Wisconsin
Drummondville, QC, Canada
REMARKS
HK0076A
Mount insert so bottom of custom hood is 24'' to 30''
Custom Hood Liner
L33 or L45 Series
4"
A d
j u s
( S
t a
e e
b l e
s h
l i n F i t s c
e e
d e
e r
t f o
p t
w i d t h
s p
h
r d
e c
e t
a i l
s )
WCPI Remote Control
6 3/8''
4 1/2''
HC0010
www.BestRangeHoods.com
www.BestRangeHoods.com
Project
Location
Architect
Engineer
Contractor
Submitted by
80F
SPECIFICATION SHEET
HB0032
above cooking surface.
Ambient Light Panel
ALP Series
i n a l
n o m
r 6 0 "
h o o d
5 4 " o
u s t o m
4 8 " ,
4 2 " ,
3 6 " ,
HA0027A
Backsplash
RMP Series
800-558-1711
866-737-7770
HA0011
Date
99044051B
