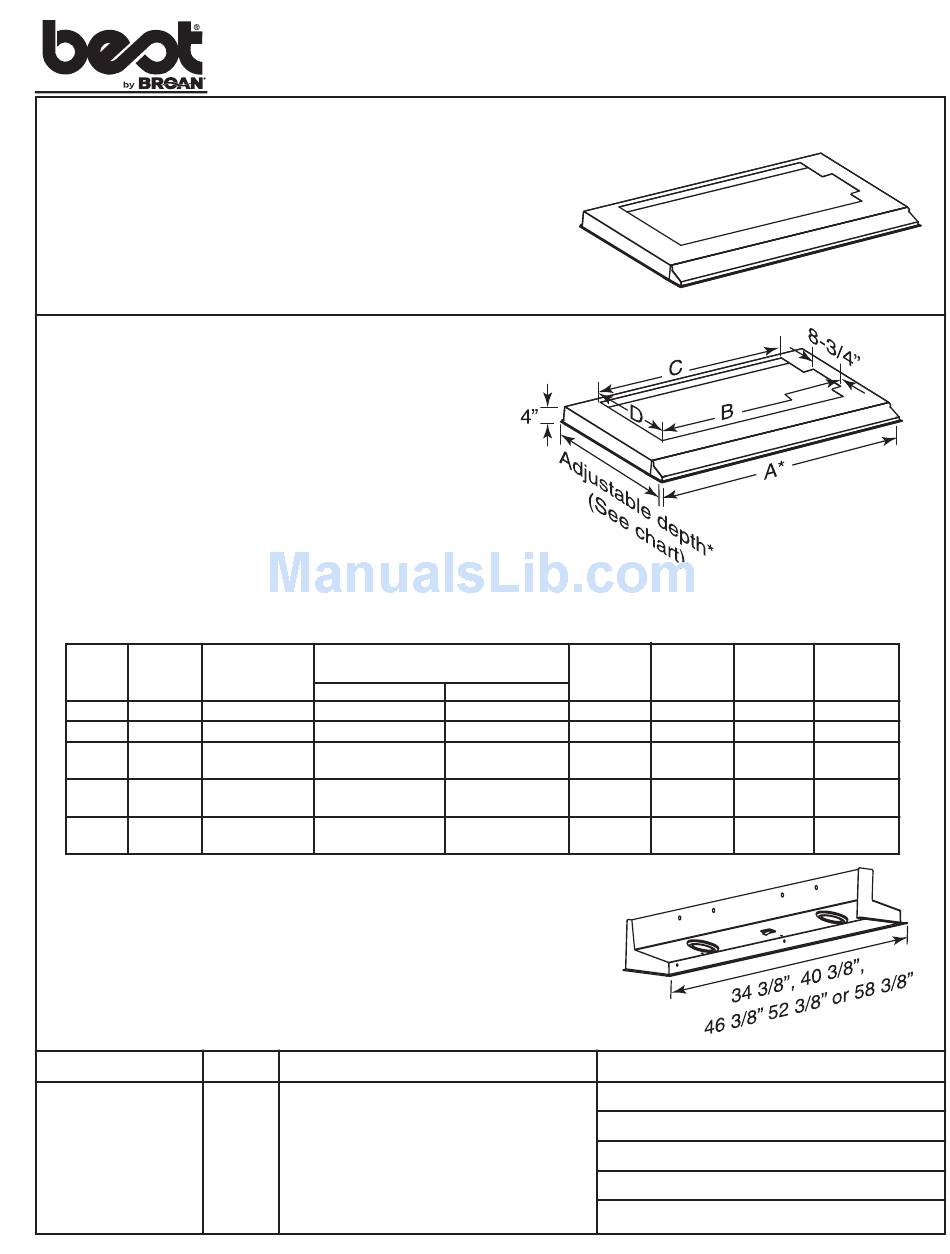

Best L2936 Specification Sheet

L2936, L2942, L3848,
L3854
AND
LINERS
Especially designed to protect the exterior base of
a custom hood. Fit PK22 Series inserts.

FEATURES

Cabinet mount _ custom application
•
•
Stainless Steel Finish
•
Adjustable depth to fit into cabinet openings as shown on
chart (front to back)
•
Fit custom hood nominal widths: 36'', 42'', 48'', 54" or 60''
•
Wipes clean easily

TO ORDER

Refer to table below to find the right liner part number for
your insert and for width of the custom hood.

DIMENSIONS

Liner Insert Custom Hood
Model Model Nominal Width
L2936 PK2229
L2942 PK2229
PK2238
L3848
PKEX2238
PK2238
L3854
PKEX2238
PK2238
L3860
PKEX2238
The INSIDE DEPTH shown in the table above assumes a minimum cabinet backboard thickness of 3/8".

OPTION

•
Ambient light panel (ALP Series) for L Series custom
hood liners (Halogen lighting: 36'' and 42'' _ 2 x 50 watt;
48'', 54" and 60'' _ 3 x 50 watt GU10) Lamps included
BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027
REFERENCE QTY.
L3860
Adjustable Depth*
Fits into cabinet openings of
Without Backboard
36" 20 1/2" to 23 1/2"
42" 20 1/2" to 23 1/2"
48" 20 1/2" to 23 1/2"
54" 20 1/2" to 23 1/2"
60" 20 1/2" to 23 1/2"
REMARKS
HA0032
*
Dimension does not include 3/8'' wide flanges.
Width
With Backboard A*
20 1/8" to 23 1/8" 34 3/8"
20 1/8" to 23 1/8" 40 3/8"
20 1/8" to 23 1/8" 46 3/8"
20 1/8" to 23 1/8" 52 3/8"
20 1/8" to 23 1/8" 58 3/8"
Ambient Light Panel
ALP Series
HA0027A
Project
Location
Architect
Engineer
Contractor
Submitted by
60D
SPECIFICATION SHEET
Cut-out Cut-out
Width Width
(long) B (short) C
27 5/8" 26 1/8"
27 5/8" 26 1/8"
36 7/16" 34 7/8"
36 7/16" 34 7/8"
36 7/16" 34 7/8"
Cut-out
Depth
D
14 7/8"
14 7/8
14 13/16"
14 13/16"
14 13/16"
Date
99043327C
