4.18.3.
When using a camin 2M, 4M or 8M, multiple lens files cannot be stored within the system. Each
lens will need to be loaded individually via the cworld or cdisplay II. For more information refer
to the cworld online documentation.
4.18.4.

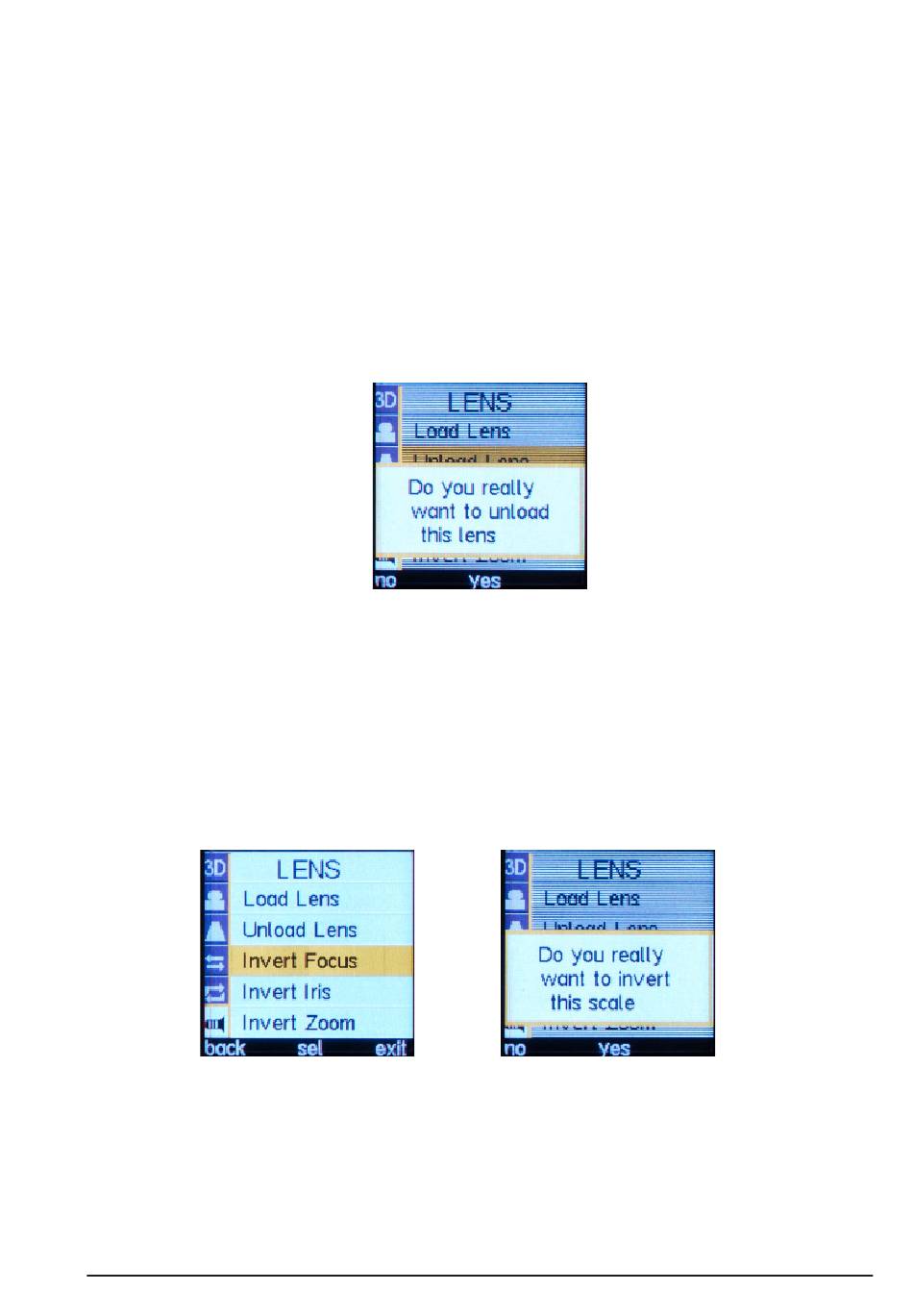

■Press the MENU SELECT WHEEL twice to enter the Menu.
■Select LENS, "Unload Lens".
■Confirm by pressing "yes".
4.18.5.
If the lens and lens data show opposite values, the lens data can be inverted following these
simple steps:
■Press the MENU SELECT WHEEL twice to enter the Menu.
■Select LENS, "Invert Focus" or "Invert Zoom" or "Invert Iris" respectively.
■Confirm by pressing "yes".
All content © 2017, cmotion GmbH. All specifications subject to change without notice. http://www.cmotion.eu

Loading a Lens when using a camin 8M

Unload Lens

Invert Focus/Iris/Zoom
