1. Component Overview

This section of the User Guide deals with the description of the components and their respective
functions, LEDs and buttons.

1.1. camin 3M

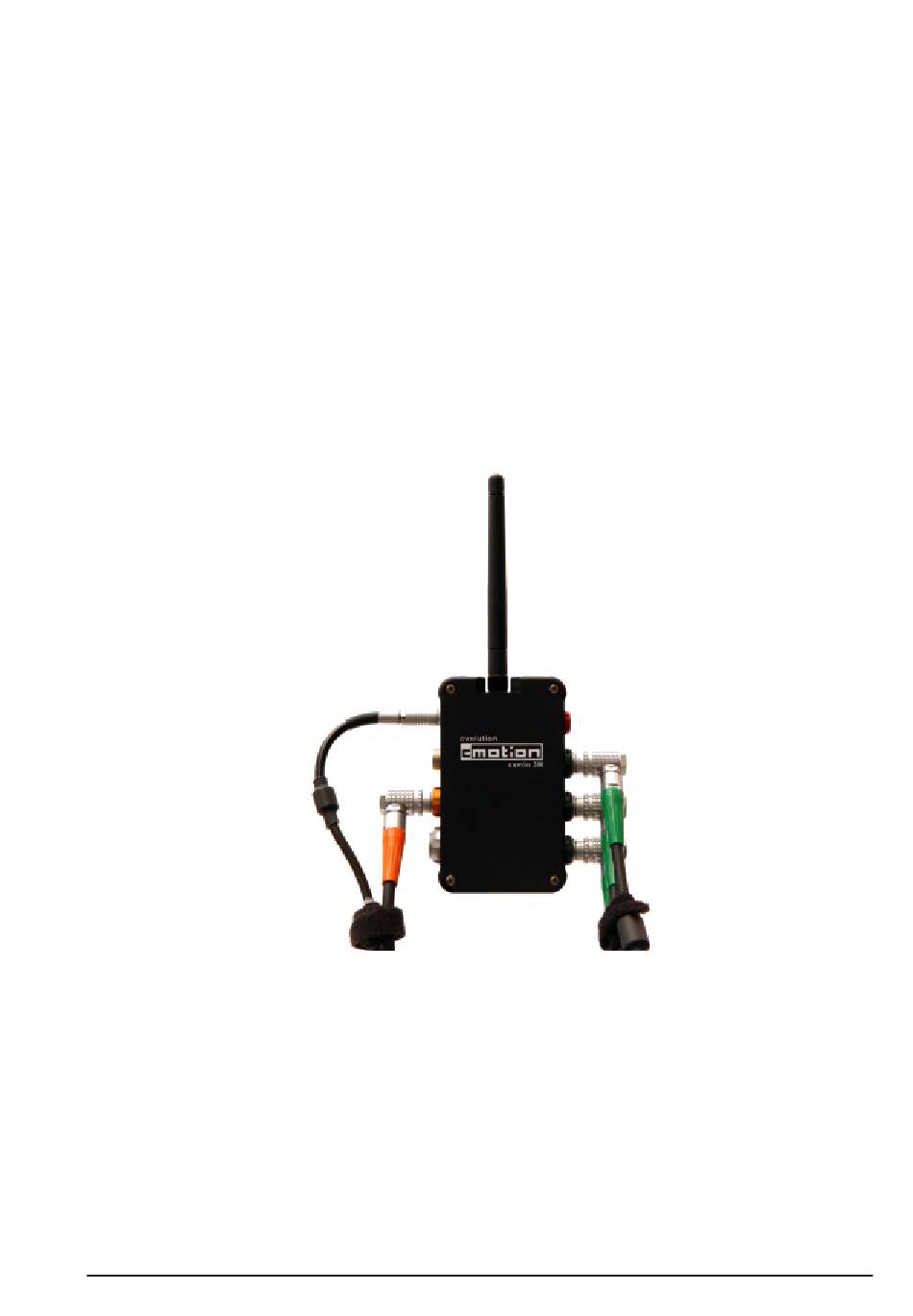

The new cvolution camin 3M is a compact, lightweight and low profile interface for focus, iris
and zoom control. Motors can be controlled wirelessly or by cable using modular cvolution
hand units. Popular broadcast controllers can also be used through a new analog interface.
The discrete CAL button triggers auto motor calibration while the EXT connector provides an
interface for wireless run/stop for a wide range of cameras. The unique LBUS connector allows
for up to 3 daisy-chained cforce/cforce mini motors to be used independently or synchronized
for a totally flexible 6 motor set up.
