4.13. zoom Functions

The cvolution zoom can be configured using the buttons on the zoom module and the zoom
menu.
4.13.1.
LENS / USER BUTTON 1 (for
latest revision units from 2015)
Cal Mot
Calibrate the motor assigned to the zoom's controlled scale.
Joystick
to change all relevant Joystick functions like Scale, Dicrection, Speed and Sensitivity
Scale
Select the scale to be controlled by the zoom unit. "Focus", "Iris" and "Zoom" are
available.
Direction
Set the direction of the scale motor to "left or "right".
Speed
Set the speed of the zoom axis to a value between 0-99
Sensitivity
Set the touch sensitivity of the joystick to "MIN", "MID" or "MAX".
All content © 2017, cmotion GmbH. All specifications subject to change without notice. http://www.cmotion.eu

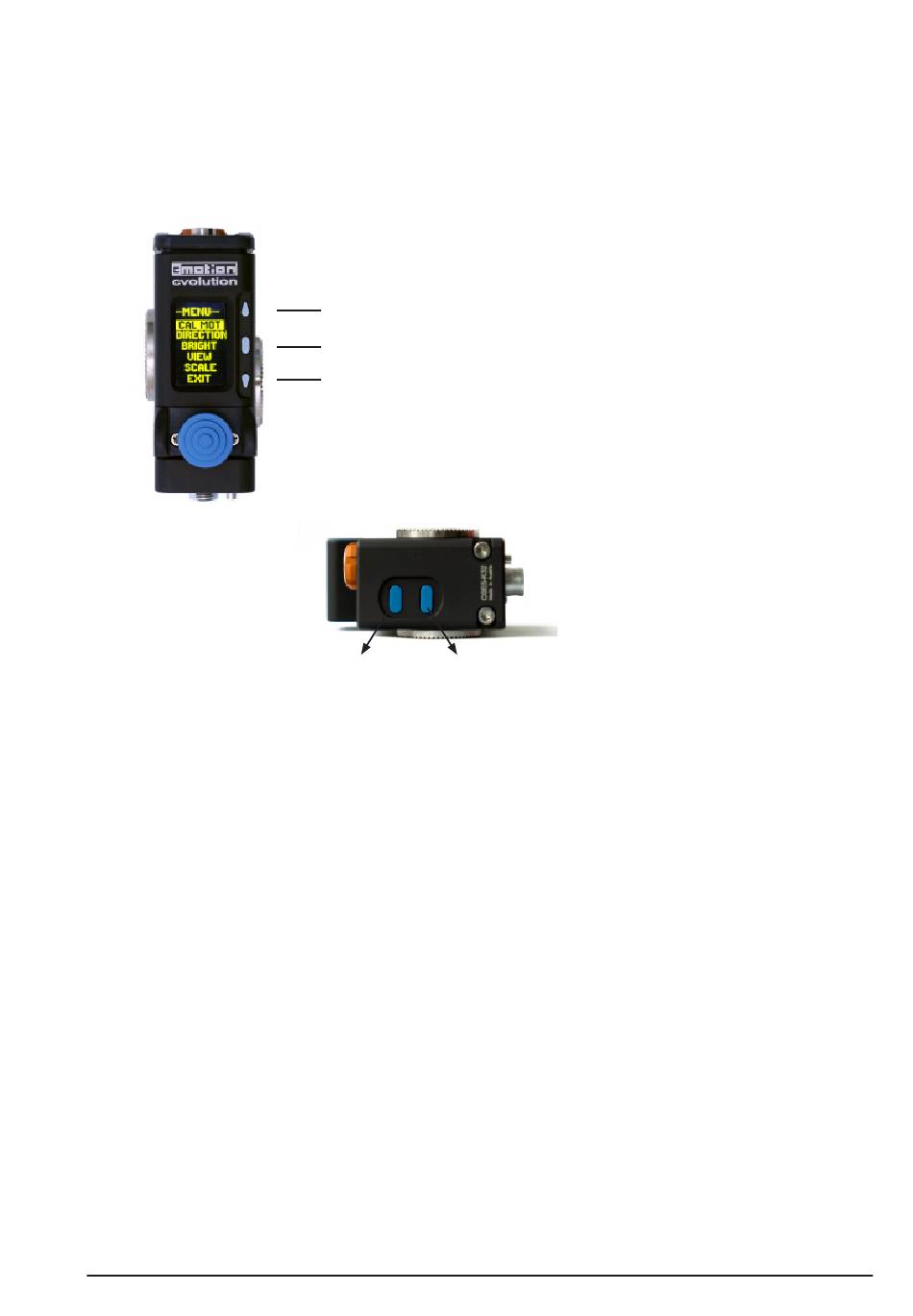

zoom Menu

BUTTON UP, to be assigned as ZAP, LENS, REC,
RET, MARKER, SPD UP or SPD DOWN
Menu – access menu/select
BUTTON UP, to be assigned as ZAP, LENS, REC,
RET, MARKER, SPD UP or SPD DOWN
ZAP / USER BUTTON 2 (for
latest revision units from 2015)
