BUILD INSTRUCTIONS

LIST OF FIXINGS
M3 NUTS & BOLTS
6mm
30mm
1
Using the four pieces of wire (white, green, blue and black) supplied
with the chassis, strip and solder one end of each wire to each motor
terminal (a small copper contact protruding from the end of the motor).
This is done by putting the exposed wire through the hole on the
contact and soldering into place.

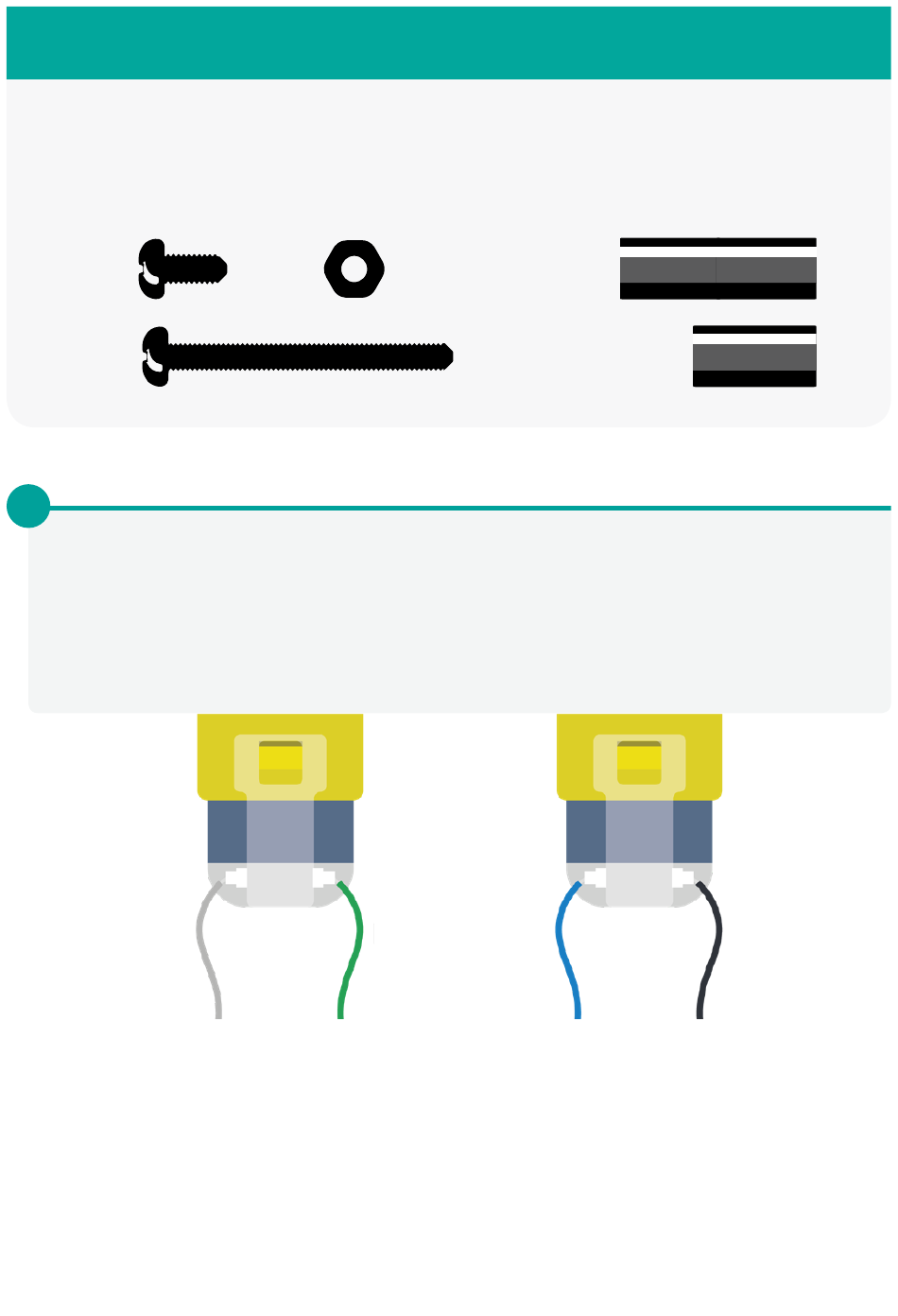

The colours should be as shown in the picture which are:
• Wire 1 on Motor 1 = White.
• Wire 2 on Motor 1 = Green.
x14 x4
SPACERS
20mm
x2 12.7mm
• Wire 1 on Motor 2 = Blue.
• Wire 2 on Motor 2 = Black.
