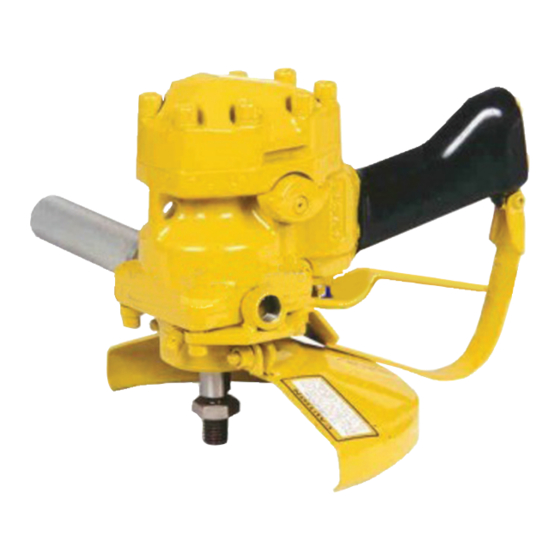

GR29 Underwater Hydraulic Grinder
18149 Service Manual 1/2019 Ver. 16
DECLARATION OF CONFORMITY
ÜBEREINSTIMMUNGS-ERKLARUNG
DECLARATION DE CONFORMITE CEE
DECLARACION DE CONFORMIDAD
DICHIARAZIONE DI CONFORMITA
______________________________________________________________________
I, the undersigned:
Ich, der Unterzeichnende:
Je soussigné:
El abajo firmante:
lo sottoscritto:
hereby declare that the equipment specified hereunder:
bestätige hiermit, daß erklaren Produkt genannten Werk oder Gerät:
déclare que l'équipement visé ci-dessous:
Por la presente declaro que el equipo se especifica a
Dichiaro che le apparecchiature specificate di seguito:
1.
Category:
Kategorie:
Catégorie:
Categoria:
Categoria:
2.
Make/Marke/Marque/Marca/Marca
3.
Type/Typ/Type/Tipo/Tipo:
4.
Serial number of equipment:
Seriennummer des Geräts:
Numéro de série de l'équipement:
Numero de serie del equipo:
Matricola dell´attrezzatura:
Has been manufactured in conformity with
Wurde hergestellt in Übereinstimmung mit
Est fabriqué conformément
Ha sido fabricado de acuerdo con
E' stata costruita in conformitá con
Directive/Standards
Richtlinie/Standards
Directives/Normes
Directriz/Los Normas
Direttiva/Norme
EN ISO
EN ISO
EN ISO
EN ISO
EN ISO
EN ISO
EN ISO
Machinery Directive
5.
Special Provisions:
Spezielle Bestimmungen:
Dispositions particulières:
Provisiones especiales:
Disposizioni speciali:
6.
Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France.
Vertreter in der Union/Représentant dans l'union/Representante en la Union/Rappresentante presso l'Unione
Done at/Ort/Fait à/Dado en/Fatto a STANLEY Infrastructure, Milwaukie, Oregon USA
Signature/Unterschrift/Signature/Firma/Firma
Position/Position/Fonction/Cargo/Posizione
Nuerenberg, David
Surname and First names/Familiennname und Vornamen/Nom et prénom/Nombre y apellido/Cognome e nome
continuación:
Grinder, Hydraulic
STANLEY
GR2930101
All
No.
Approved body
Nr
Prüfung durch
Numéro
Organisme agréé
No
Aprobado
n.
Collaudato
28927-7
Self
3744 (15744)
Self
11148-7, Cl. 5.6
Self
11148-7, Cl. 5.7
Self
13732-1
Self
11148-7, Cl. 5.4
Self
11148-7, Cl. 5.5
Self
2006/42/EC
Self
None
North America Quality Manager
Date/Datum/le/Fecha/Data
4-25-2018
Advertisement
Related Manuals for Stanley GR29
Summary of Contents for Stanley GR29
- Page 1 Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a STANLEY Infrastructure, Milwaukie, Oregon USA...
-
Page 2: Safety Precautions
Repair and service of this tool must only be performed by an authorized and certified dealer. WARNING: To reduce the risk of injury, read the instruction • Use only replacement parts recommended by STANLEY. manual. • Do not force the tool to do the work of a larger tool. Use the correct General tool for your application. - Page 3 Trigger Guard Tool Activation Valve Activates the tool when the trigger is pressed. Trigger Presses the valve spool and activates the tool. Trigger Guard Guards the trigger from accidental activation. GR29 Service Manual | 3...
- Page 4 GR29 Parts Illustration - Detail E GR29 Parts Illustration - Detail E ITEM DESCRIPTION ITEM DESCRIPTION 16495 Hub Nut - Model GR2930101 12285 Trigger Guard 13779 Jam Nut - Model GR29310 08130 Assist Handle 28913 Drive Flange - Model GR2930101...
- Page 5 10 11 12 13 14 15 16 17 18 GR29 Motor Parts Illustration - Detail F ITEM DESCRIPTION 13812 Rotary Shaft Seal* 01220 Grease Fitting 13790 Bearing Carrier 00149 O-ring* 00672 Retaining Ring 13813 Bearing 00166 Retaining Ring 13791 Spindle...
- Page 6 GR29 Trigger & Reversing Spool Parts Illustration - Detail G ITEM DESCRIPTION 07724 Nylock Nut 12283 Trigger 22063 Spool Cap 00786 Cap Screw 06533 O-ring* 22064 Rod Wiper* 00026 O-ring* 23678 Headed Push Pin 73041 Valve Spool 07988 Spring 09275...
-
Page 7: Specifications
Always determine and correct the cause of a problem before reassembly. Further wear and tool failure can result if the root cause has not been corrected. • O-rings and seals should be removed with proper O-ring tools. This will prevent damage to seal groove surfaces. Service Tools GR29 Seal Kit 16969 GR29 Service Manual | 7... -
Page 8: Troubleshooting
Disassemble tool and inspect parts for damage. Ensure the return and pressure hoses are properly Tool runs backwards. Hydraulic hoses incorrectly connected to the tool. attached to the tool. See GR29 User Manual for proper use instructions. Wheel abruptly stops after trigger is released. Mechanical failure. - Page 9 Inspect the idler and drive gear. The tips of the gear should be straight and flat, without nicks or cracks. They should have an even polish on the teeth and end faces. Remove the woodruff key from the drive gear. Spindle Drive Gear Idler Gear GR29 Service Manual | 9...
- Page 10 10. Using O-ring tools, remove the backup ring, small O-ring and large O-ring, as shown. Note: Replace the exposed seals during reassembly. 00149 09396 Main Housing 08017 Remove Trigger and Tool Activation Valve Remove the cap screw and nut holding the trigger in place. Remove the trigger. 10 | GR29 Service Manual...
- Page 11 A Note About Older Model Valve Spools GR29’s with a serial number of 020516107 or earlier use an older version valve spool. The newer model valve spools are not backwards compatible. You must order an older style valve spool if replacement is necessary.
-
Page 12: Tool Maintenance
A Note About Older Main Housing Assemblies GR29’s with a serial number of 020516107 or earlier use an older version main housing. The older model housing (Part Number 12286) can only use the older style valve spool (Part Number 13781). The new model housing (Part Number 73311) can only use the new style valve spool (Part Number 73041). - Page 16 STANLEY Infrastructure 6430 SE Lake Road, Portland, Oregon 97222 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyinfrastructure.com...
