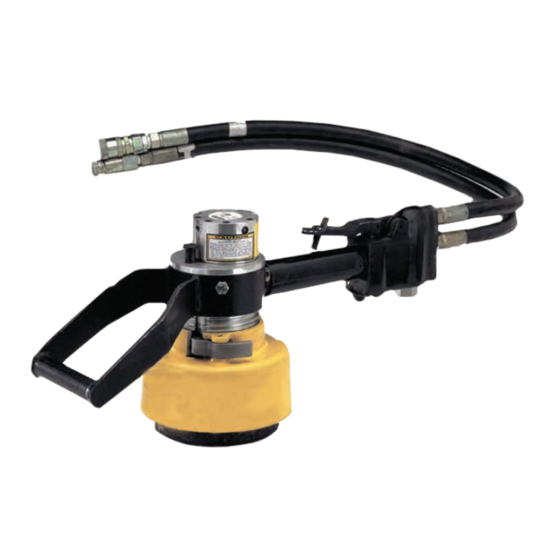

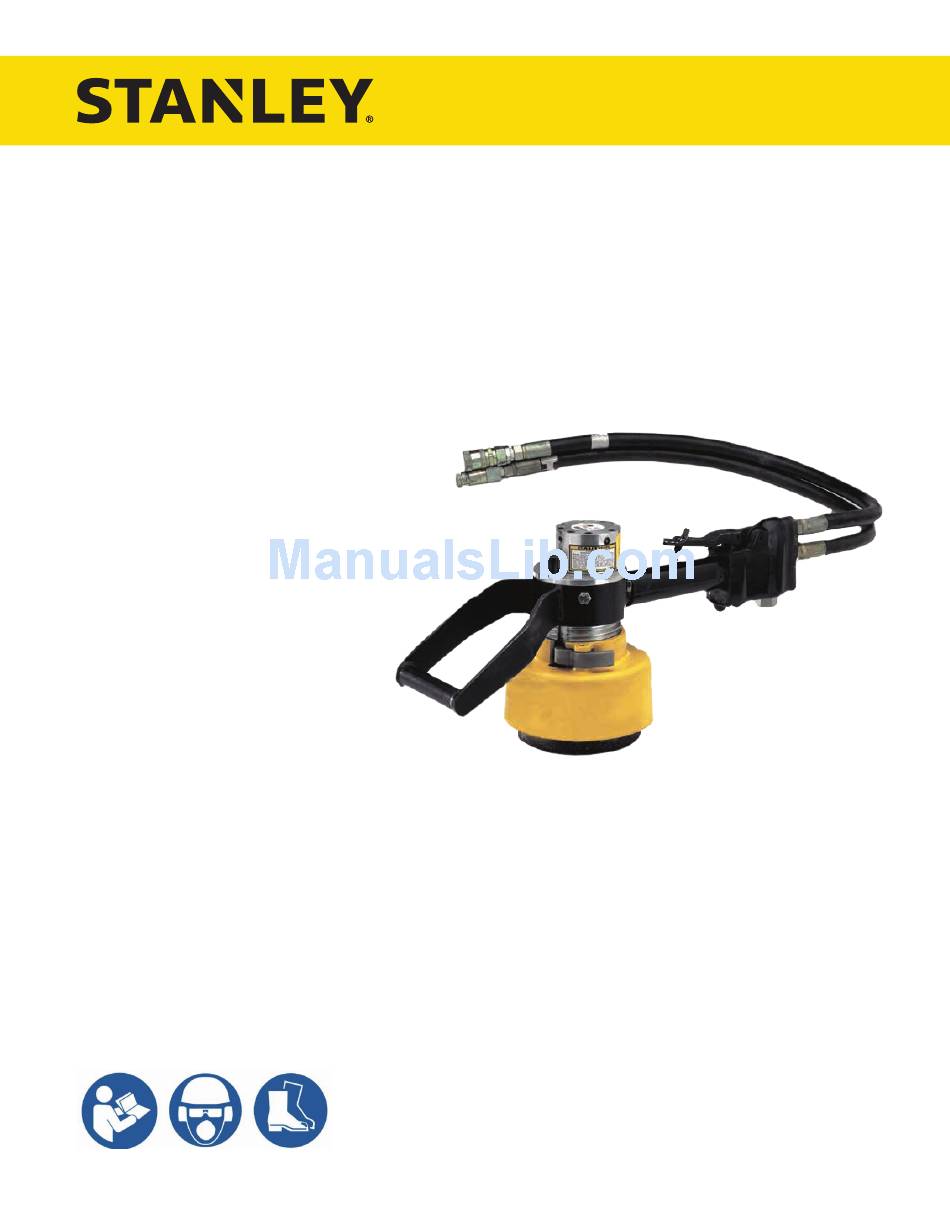

- Page 1 GR60 HYDRAULIC GRINDER USER MANUAL Safety, Operation and Maintenance © 2017 STANLEY Black & Decker, Inc. New Britain, CT 06053 U.S.A. 28077 1/2018 Ver. 11...
-
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest certified dealer, call STANLEY Infrastructure at (503) 659-5660 and ask for a Customer Service Representative. GR60 User Manual ◄ 3... -
Page 4: Safety Symbols
Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel. 4 ► GR60 User Manual... -
Page 5: Safety Precautions
Place the added precautions in the personnel. space provided. • Always replace parts with replacement parts The GR60 Hydraulic Grinder will provide safe and recommended by STANLEY. dependable service if operated in accordance with the • Do not operate the tool with the wheel guard instructions given in this manual. -
Page 6: Tool Stickers & Tags
TOOL OPERATOR. TOOL OPERATOR. removal. We suggest you retain this tag and SEE OTHER SIDE SEE OTHER SIDE attach it to the tool when not in use. SAFETY TAG P/N 15875 (Shown smaller then actual size) 6 ► GR60 User Manual... -
Page 7: Hose Types
This hose is not certifi ed non-conductive and must never be used near electrical conductors. HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from STANLEY. DO NOT REMOVE THESE TAGS. -
Page 8: Hose Recommendations
HOSE RECOMMENDATIONS 8 ► GR60 User Manual... -
Page 9: Htma / Ehtma Requirements
2000 psi 2000 psi (At the power supply outlet) (172 bar) (138 bar) (138 bar) (138 bar) (138 bar) NOTE: These are general hydraulic system requirements. See tool specifi cation page for tool specifi c requirements. GR60 User Manual ◄ 9... -
Page 10: Operation
2. Always start the grinder with the grinding wheel and pre-operation procedures before using this product. away from the work surface. 3. Move the hydraulic circuit control valve to the “ON” position. 4. Disengage the safety thumb latch (42) and squeeze 10 ► GR60 User Manual... -
Page 11: Operation
If the grinder is to be used during cold weather, preheat the hydraulic fluid at low engine speed. When using the normally recommended fluids, fluid temperature should be at or above 50° F/10° C (400 ssu/82 centistokes) before use. GR60 User Manual ◄ 11... -
Page 12: Troubleshooting
Have the flow control and valve body serviced at an authorized STANLEY service center. Grinder operates too fast. Flow control is malfunctioning. Have flow control and valve body serviced at an authorized STANLEY service center. 12 ► GR60 User Manual... -
Page 13: Tool Protection & Care
This can cause damage to internal seals. • Always replace hoses, couplings and other parts with replacement parts recommended by STANLEY. Supply hoses must have a minimum working pressure rating of 2500 psi/172 bar. GR60 User Manual ◄ 13... -
Page 14: Specifications
Weight (w/couplers) ..........................20.3 lbs / 9.2 kg Maximum Fluid Temperature ........................ 140° F / 60° C RPM ................................4000 Max ACCESSORIES Cup Stone Grinding Wheel (6 inch x 3 inch x 5/8-11 Norton Norzon IV) ............28597 14 ► GR60 User Manual... -
Page 15: Gr60 Parts Illustration
GR60 PARTS ILLUSTRATION GR60 User Manual ◄ 15... -
Page 16: Gr60 Parts List
CAPSCREW 47, 49) 73680 RAILROAD HELP DESK DECAL 25783 GUARD ASSY (INCLUDES ITEMS 26, 27 & 28) 20145 STEEL BALL 25784 DRIVE FLANGE 24289 PLUG 01411 O-RING 25215 OIL TUBE 00032 LOCK WASHER 30366 CAPSCREW 16 ► GR60 User Manual... - Page 20 STANLEY Infrastructure 6430 SE Lake Road Portland, Oregon 97222 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyinfrastructure.com...
