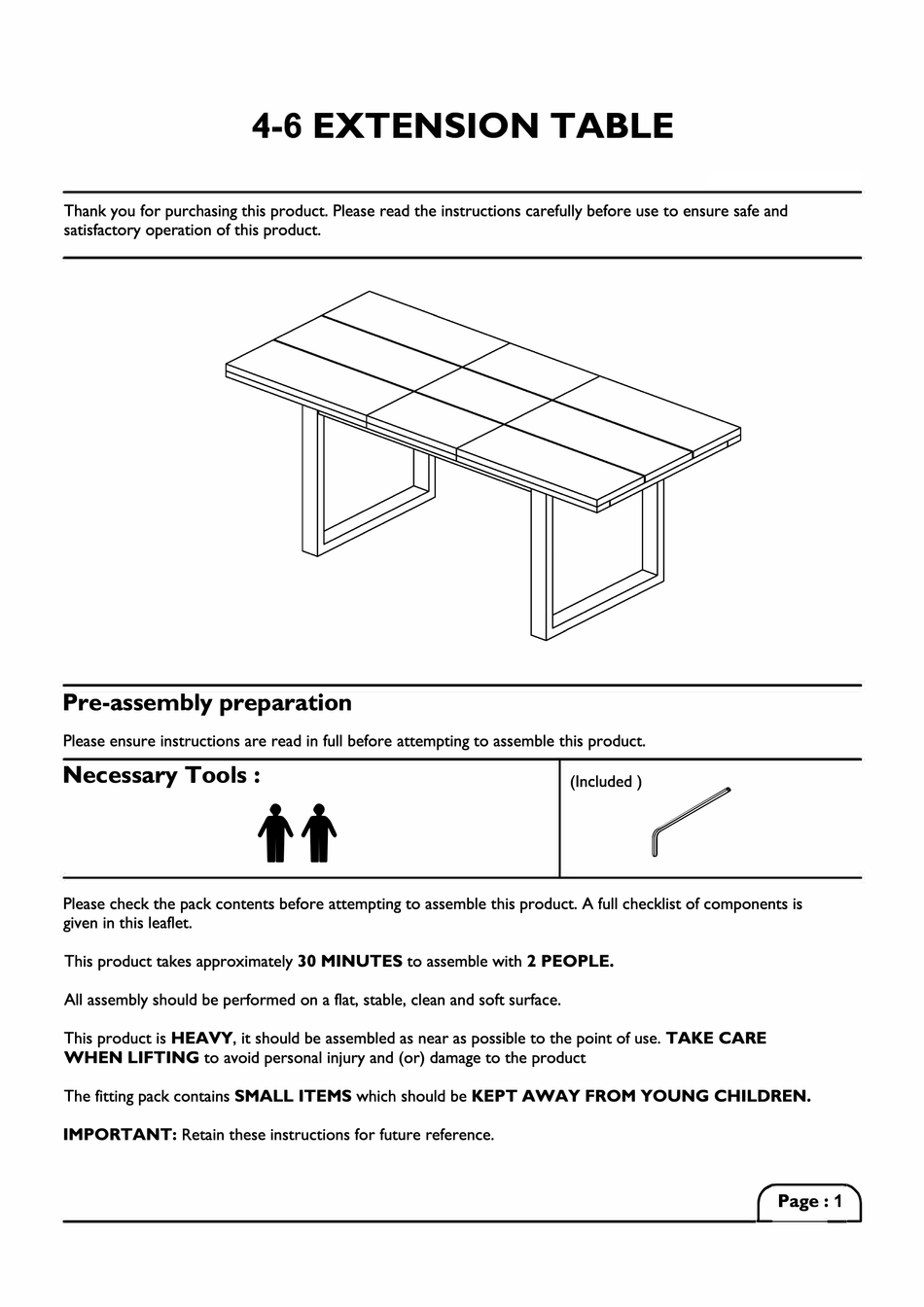

4-6 EXTENSION TABLE
Thank you for purchasing this product. Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product.
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product.
Necessary Tools:
(Included ) �
tt
Please check the pack contents before attempting to assemble this product. A full checklist of components is
given in this leaflet.
This product takes approximately 30 MINUTES to assemble with 2 PEOPLE.
All assembly should be performed on a flat, stable, clean and soft surface.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product
The fitting pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
IM PORTANT: Retain these instructions for future reference.
J
(Page: 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4-6 EXTENSION TABLE and is the answer not in the manual?

Questions and answers

Related Manuals for Homebase 4-6 EXTENSION TABLE

Summary of Contents for Homebase 4-6 EXTENSION TABLE

  • Page 1 4-6 EXTENSION TABLE Thank you for purchasing this product. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Pre-assembly preparation Please ensure instructions are read in full before attempting to assemble this product.
  • Page 3 Step by step assembly instructions G) : Step Extend both sides of the main table top completely then remove the corovin storage bag ( 4 ) as shown. Step@ 2. 1 : Lay all parts on a flat, stable, clean and soft surface. 2.2 : Insert 4x cross dowels ( A ) into the table top ( 1 ) by placing each fitting ( A ) into the holes on top of each side apron as shown.
  • Page 4 Step By Step Assembly Instructions Step@ 3 .1 : Place metal legs (2) onto table top (1). Ensure the pre-drilled holes on metal leg (2) are aligned correctly with the pre-drilled holes on table top ( 1 ) before attaching. 3 .2 : Secure metal legs (2) to table top (1) by screwing Bx hex head bolts (B) through the holes metal legs (2) into fittings (A) that are concealed in apron of table top ( 1) as shown.
  • Page 5 Step By Step Assembly Instructions Step : Lock the slides Important: Ensure you have already locked the slides before righting the table. Note : When moving the table, remove leaf, close table top and lock the slides, then move by gripping or lifting the legs or underframe. Caution : This product is heavy, with help of assistant stand the table upright.
  • Page 6 Step By Step Assembly Instructions Step@ 6.1 : Unlock the slides that were locked in Ste p 4. 6.2 : Extend the table by slide the top all the way out as shown. Place leaf ( 3 ) over the side aprons as shown. 6.3 : Step 6.1 (Page: 6...
  • Page 7 Step by step assembly instructions Step (J) 7.1: Slide leaf (3) to main table top until no gap is visible. 7.2: Push table top inwards until no gap is visible. Note: Ensure the metal pins are aligned to the holes on the main table tops and the leaf before closing the table.
  • Page 8 Step By Step Assembly Instructions Step@ Remove the leaf 9.1 : Unlock the slides that were locked in Step 8. 9.2 : Extend the table b y slide the to p all the wa y out as shown. 9.3 : Remove leaf (3) . Step 9.1 Step@ 10.1 : Place leaf (3) and corovin stora g e ba g (4) onto a flat, stable, clean and soft surface.
  • Page 9 Step By Step Assembly Instructions Step� 11.1 : Carefully place corovin storage bag (4) with leaf (3) onto wood support storage under table top as shown. 11.2 : Close the table by pushing both side of the table top inwards until no gap visible . Ensure the metal pins on both table tops (1) are aligned correctly with the mating holes before closing.

  • Page 10: Care And Maintenance

    Care and Maintenance Wood Furniture Wood displays different grain patterns depending on which way they are cut - for example, the 'medullary ray' which can appear on oak furniture is a mark of good quality timber - these are just characteristics of the natural beauty of the wood.
