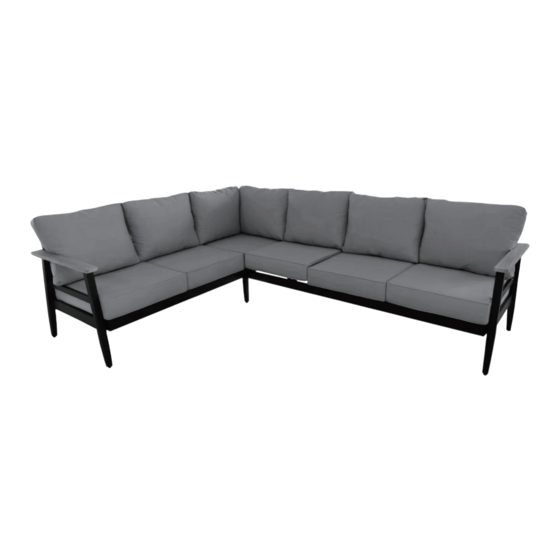

- Page 1 AMAYA CORNER SET SOFA & CORNER INSTRUCTION MANUAL IMPORTANT: Please read these instructions before using the product and retain for future use. HHGL Limited, MK9 1BA V1_2023 HHGL (ROI) Limited, D02 X576...
- Page 2 • Please check you have all the components and fittings listed. If you find any missing or damaged parts, please contact our customer services team on 0333 003 7084 between 09:00 & 18:00, or use the contact form on our website www.homebase.co.uk...
- Page 3 COMPONENTS - PANELS COMPONENTS - FITTINGS 1 x 2-seater 14 x M6*25mm seat panel bolts 6 x M6*35mm 1 x RH armrest bolts 1 x 3-seater 6 x M6*50mm seat panel bolts 6 x Lock nuts 1 x LH armrest 1 x corner chair 32 x Flat washers seat panel...
- Page 4 ASSEMBLY INSTRUCTIONS Step 1 Loosely attach seat panel (A) to armrest (B) with bolts (K) and flat washers (N). Step 2 Loosely attach armrest (B) to backrest with bolts (J) and flat washers (N). Tighten all bolts completely using Allen key (O).
- Page 5 Step 3 Loosely attach seat panel (C) to armrest (D) with bolts (K) and flat washers (N). Step 4 Loosely attach armrest (D) to backrest with bolts (J) and flat washers (N). Tighten all bolts completely using Allen key (O).
- Page 6 Step 5 Attach seat panel (E) to legs (F) with bolts (J) and flat washers (N). washers (H). Step 6 Position 3 sofas for assembly. With bolts (L), lock nuts (M) and flat washers (N) position over the section that joins the sofa parts. Using Allen key (O) and spanner (P).
- Page 7 Step 7 Put all seat cushions (G), back cushions (H) and corner back cushion (I) in the right place. ASSEMBLY COMPLETE...
