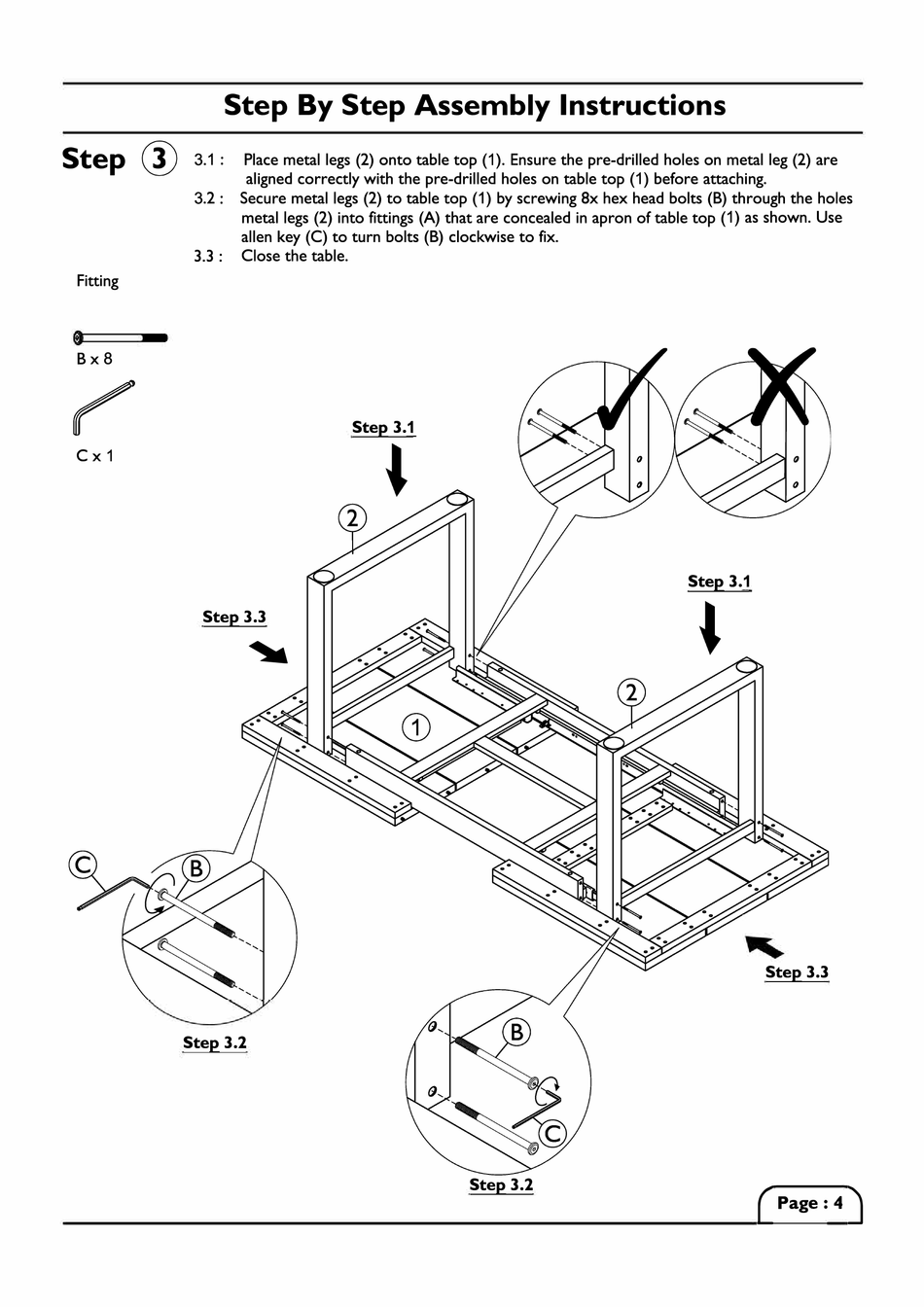

Step By Step Assembly Instructions
Step@
3 .1 :
3 .2 :
3.3:
Fitting
Bx8
C x 1
Step 3.3
Step 3.2
Place metal legs (2) onto table top (1). Ensure the pre-drilled holes on metal leg (2) are
aligned correctly with the pre-drilled holes on table top ( 1 ) before attaching.
Secure metal legs (2) to table top (1) by screwing Bx hex head bolts (B) through the holes
metal legs (2) into fittings (A) that are concealed in apron of table top ( 1) as shown. Use
allen key ( C ) to turn bolts (B) clockwise to fix.
Close the table.
Step 3.1
�
Step 3.2
Step 3.1
Step 3.3
J
