Selection and Adjustment
Install a flow valve on the working side which requires the cylinder output and a pressure valve on the return side. The product cannot be used in
cases where the same pressure is necessary for both working and return strokes.
In such cases use a speed controller.

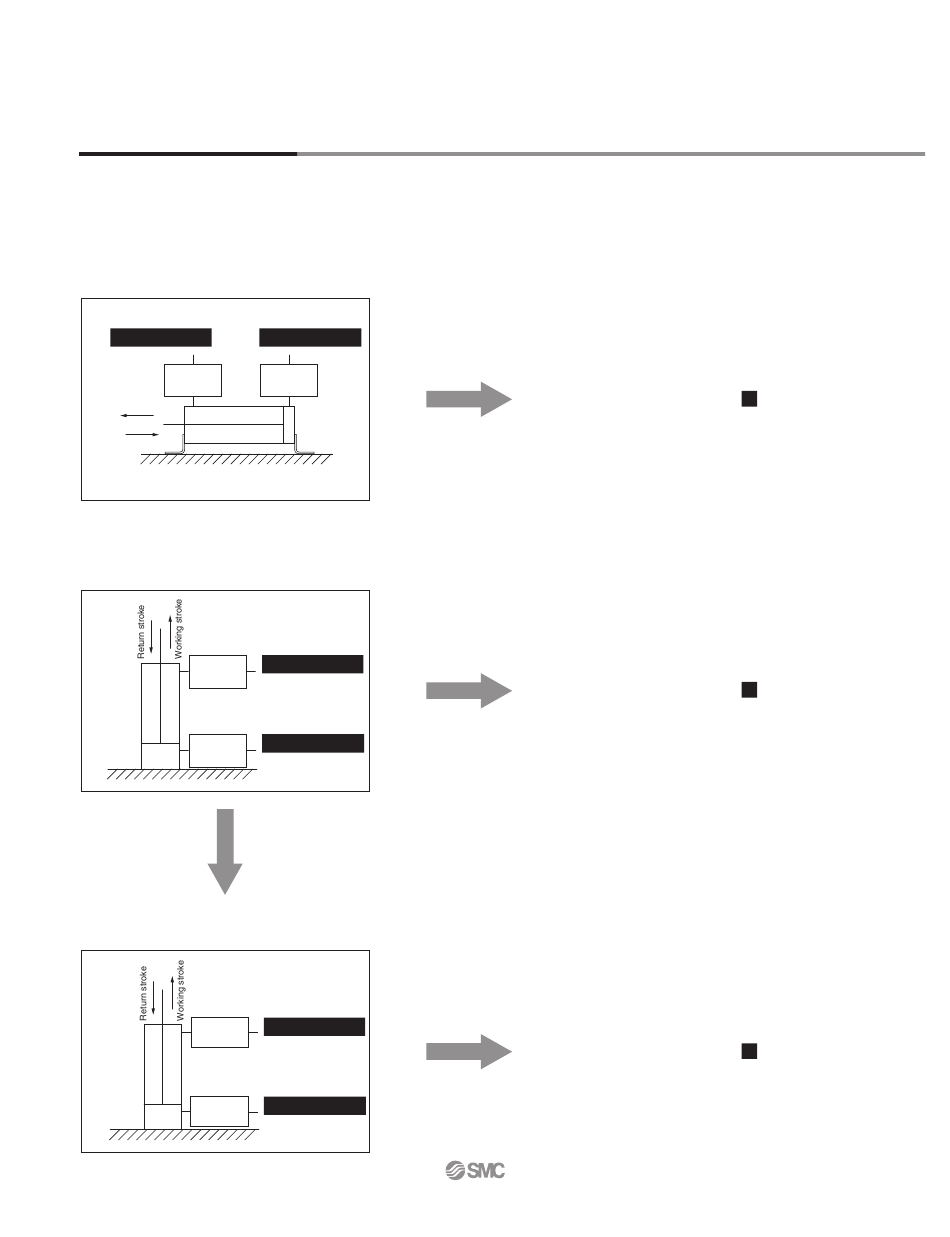

Horizontal mounting
Low pressure side: Pressure valve
High pressure side: Flow valve
Low pressure side
Pressure valve
Series
ASR
Working stroke
Return stroke
Vertical mounting
Low pressure side: Pressure valve
High pressure side: Flow valve
Pressure valve
Series
ASR
Flow valve
Series
ASQ
Low pressure side: Pressure valve
High pressure side: Dual speed controller
Pressure valve
Series
ASR
Dual speed controller
(Meter-in • Meter-out)
Series
ASD
3
SHOP ONLINE at www.airlinehyd.com
ASQ
/
Series
High pressure side
Flow valve
Series
ASQ
In case the load ratio is 50% or lower
at the set pressure of the flow valve:
Low pressure side
High pressure side
If the load ratio at the set pressure of the flow valve exceeds 50%,
install a dual speed controller (meter-in and meter out control) on the
high pressure side.
Low pressure side
High pressure side
Refer to
Adjustment Procedure
for pressure and speed adjustment.
Refer to
Adjustment Procedure
for pressure and speed adjustment.
Refer to
Adjustment Procedure
for pressure and speed adjustment.
